DynaMc Low Force Cylinder Assembly Set
Item Number: 887301
Price: $2,920.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
DynaMc Low Force Cylinder Assembly Set


Part Number 887301 Component List
  Item Component Description Quantity Unit
Price
1 816371 View Image 1.66 SQ IN Tepa Label 1.0 EA 14.13
2 818801 View Image LF Piston 2.0 EA 177.00
3 887601 Dynamc 250 Guide Rod 2.0 EA 369.00

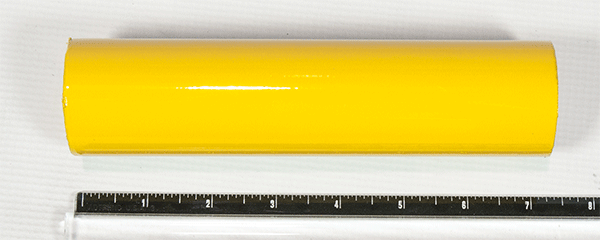

4 887801 View Image Dynamc 250 Low Force Cyl 2.0 EA 220.00

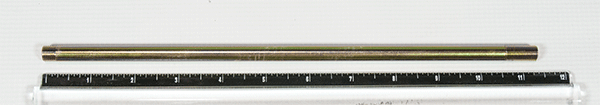

5 887901 View Image Dynamc 250 Tie Rod 8.0 EA 49.05

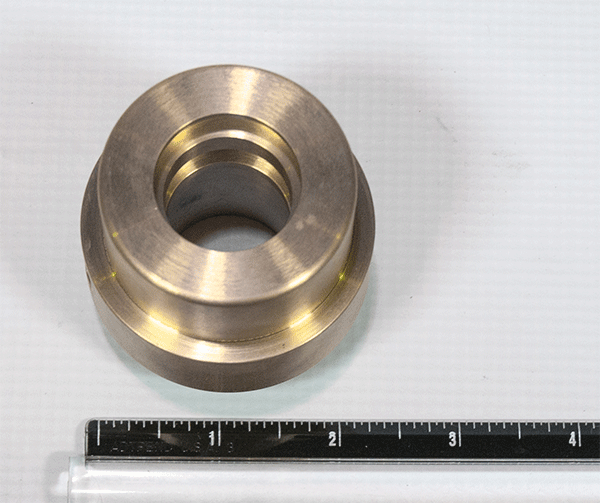

6 888201 View Image Dynamc 250 LF Rod Gland 4.0 EA 241.00
7 MBA00047 View Image 3/8-24NF Fnsh Hex Nut GR8 PL 16.0 EA 0.41
8 MBG00001 View Image 3/8 Type 'an' FL Wshr Stl PL 16.0 EA 0.41
9 MCB00006 View Image Ext Snap Ring 4.0 EA 0.42
10 MDL00002 View Image O-ring 2.0 EA 0.53
11 MDL00020 View Image O-ring 2.0 EA 1.27
12 MDL00022 View Image Back -up Ring 4.0 EA 1.28
13 MDL00030 View Image Seal 4.0 EA 3.22
14 MDL00031 View Image Washer 4.0 EA 4.70
15 MDL00032 View Image Wiper 4.0 EA 7.34
16 MDL00183 O-ring 4.0 EA 0.88
Part Number 887301 Supplemental Kits

Item
Item
Price
A840802 Lf hyd cylinder seal kit
124.00
