Datalogger Module Housing Assembly
Item Number: DL4501
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Datalogger Module Housing Assembly


Datalogger Module Housing Assembly


Part Number DL4501 Component List
  Item Component Description Quantity Unit
Price
1 DL4401 (assembly) 2000 PSI Pressure Transducer Assembly 1.0 EA 0.00

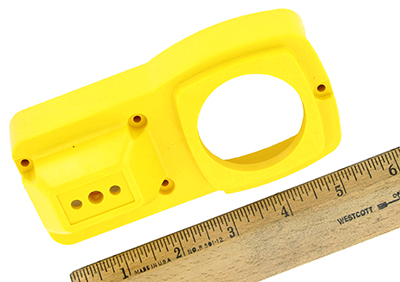

2 DL4602 View Image Top Housing 1.0 EA 0.00
3 DL4701 Bottom Housing 1.0 EA 0.00

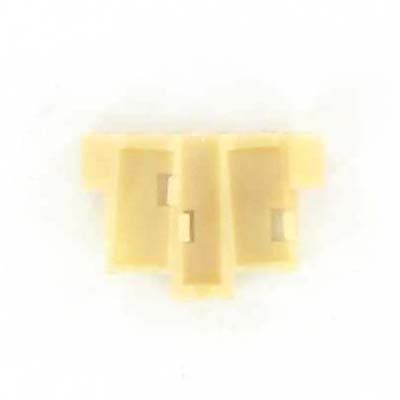

4 DL4801 View Image Sensor Bracket 1.0 EA 0.00

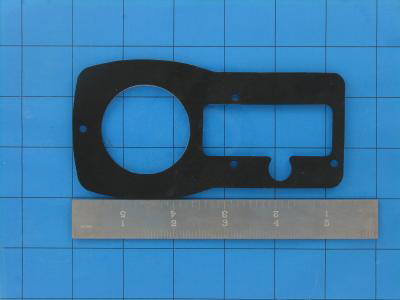

5 DL5001 View Image Top Gasket 1.0 EA 0.00

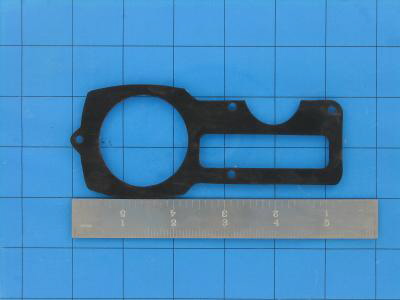

6 DL5101 View Image Bottom Gasket 1.0 EA 0.00
7 DL5203 Clip Wld 1.0 EA 0.00
8 DL5301 Aperture Label 1.0 EA 0.00
9 DL5401 Module Housing Label 1.0 EA 0.00
10 DL5501 Sensor Seal 1.0 EA 0.00

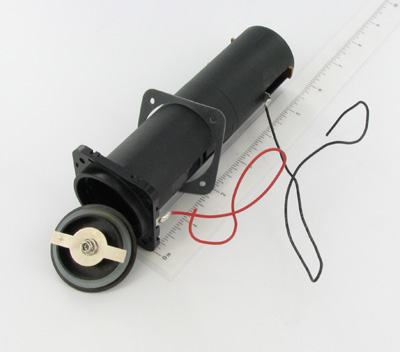

11 DL5601 View Image Battery Holder Mod 1.0 EA 0.00
12 DL5701 View Image Wrless DL Programmed Board Asy 1.0 EA 0.00
13 IEP000086 #4-20X5/8"LG Phil Pan HD Scr 2.0 EA 0.00
14 MAH00194 #4-20X3/8"LG Phil Pan HD Scr 4.0 EA 0.00
15 MAJ00012 #4-40NCX1-1/2LG Phpms Stl PL 4.0 EA 0.00
16 MKC00040 View Image Push Button Switch 1.0 EA 37.83
17 MLE00070 View Image 3 Cond Retractile Cable Assy 1.0 EA 187.00
18 MLF00075 Microfast Female Connector 1.0 EA 0.00
19 MLT00022 Laser 2.0 EA 0.00

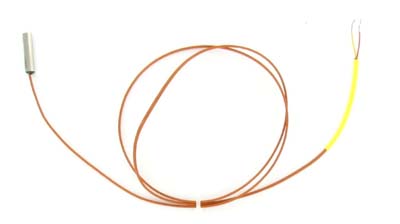

20 MQB00040 View Image I/r Temperature Sensor 1.0 EA 0.00
21 MAE00004 View Image #4-40NCX3/8LG Bhscs SS 2.0 EA 0.42
22 MQF00006 D-sub Pin 2.0 EA 0.00
