824 Pipe Stand Assembly
Item Number: 2429101
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
824 Pipe Stand Assembly


Part Number 2429101 Component List
  Item Component Description Quantity Unit
Price
1 2429201 View Image Pipe Stand Inner Leg 1.0 EA 913.00
2 MCH00002 View Image 1/8DIAX1-1/2LG Cotter Pin 1.0 EA 0.12

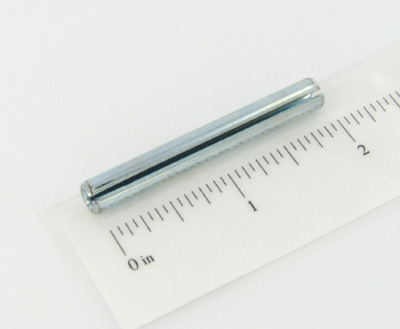

3 MCG00031 View Image 1/4X2LG Roll Pin 1.0 EA 1.08

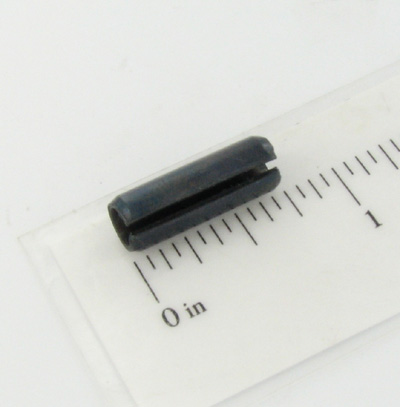

4 MCG00032 View Image 1/4DIAX3/4LG Roll Pin 1.0 EA 0.40

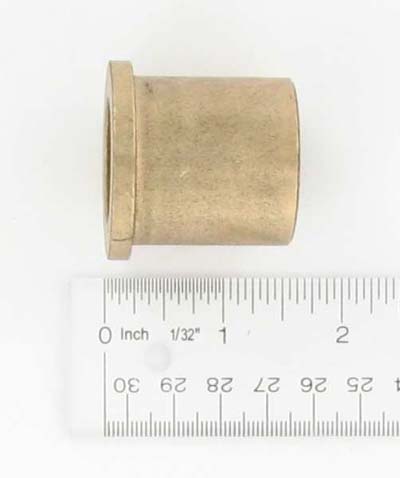

5 MDM00018 View Image Flange Bushing 2.0 EA 24.67

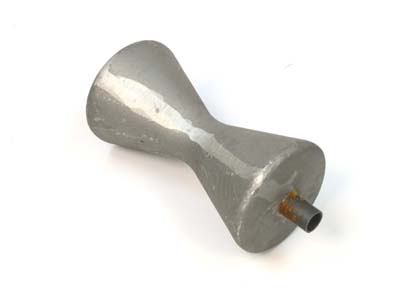

6 2423901 View Image Pipe Stand Roller Assy 1.0 EA 1,231.00

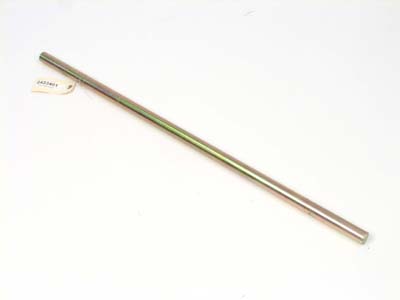

7 2423401 View Image Pipe Stand Shaft 1.0 EA 288.00

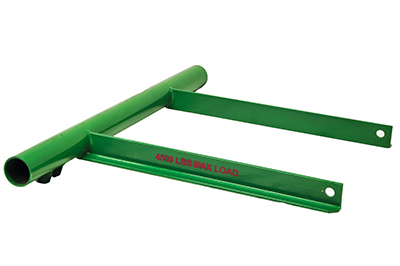

8 2429301 View Image Pipe Stand Outer Leg 1.0 EA 1,159.00
9 MCF00019 View Image 1/2DIAX2-11/32 Grip Clv Pin PL 2.0 EA 2.61
10 MCH00001 View Image 1/8DIAX1LG Cotter Pin 2.0 EA 0.12

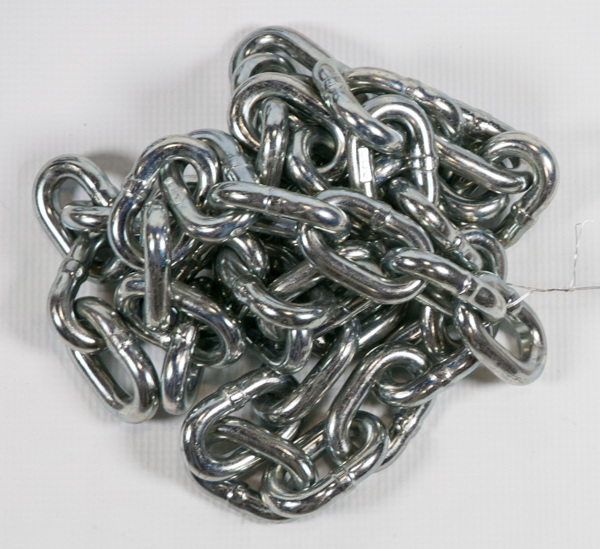

11 3638801 View Image Chain Modification 2.0 EA 76.56
