2X4 Split Heater Assembly
Item Number: 425601
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
2X4 Split Heater Assembly


Part Number 425601 Component List
  Item Component Description Quantity Unit
Price
1 MAH00169 1/4-20NCX1/4LG Bhscs SS 1.0 EA 0.00
2 MAH00170 #10-32NFX3/8LG Bhscs SS 4.0 EA 0.39
3 MAG00031 #6-32NCX1/4LG Skt Set Scr 1.0 EA 0.00
4 MAH00036 View Image #6-32NCX3/8LG Hwh TC Scr 2.0 EA 0.29
5 MAH00050 View Image 1/4-20NCX1/2LG Shcs SS 2.0 EA 0.52
6 MAH00074 View Image #8-32NCX3/8LG Fhscs SS 1.0 EA 0.29
7 MAH00081 View Image #10-32NFX1/2LG Shcs SS 8.0 EA 0.49
8 MBA00024 #10-32NF Hex Nut Stl PL 1.0 EA 0.06
9 MBE00004 View Image #10 Reg Splt Lck Washer Stl PL 1.0 EA 0.10
10 425501 Htr Support Pin 2.0 EA 0.00

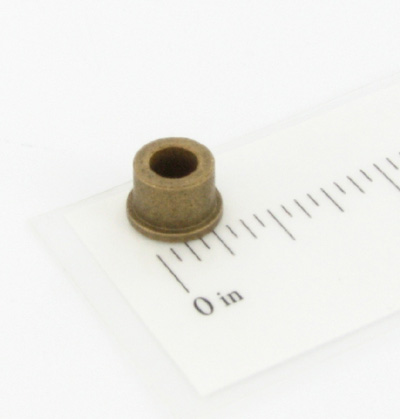

13 MDM00173 View Image Flange Bushing 4.0 EA 0.00
14 MFA00126 8FPT/8FPT Coupling 2.0 EA 0.00
15 MHA00009 3/8ID X 9/16OD Rubber Tubing 0.5 FT 4.28
16 MHA00019 3/4 IDX1/8 Wall Silicon Tubing 2.0 FT 0.00
17 MJK00002 View Image 2.5LG,150-650DEG F Thermometer 2.0 EA 48.72
18 MJQ00026 View Image Ferrule 4.0 EA 1.01
19 MLC00011 #TEV01402 100-500F Temp Switch 2.0 EA 0.00

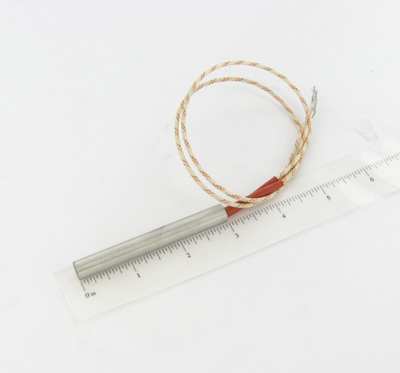

20 MLD00048 View Image 120V, 200W, 3/8 X 3 Crtg Htr 4.0 EA 0.00
21 MLE00017 View Image Replaced by 434202 OR A434202 (Effective 9/13/90 to 5/10/18) 2.0 EA 0.00
21 434202 View Image 13AMP/120V Power Cord 2.0 EA 45.10
22 MLK00007 View Image Strain Relief Connector 2.0 EA 14.66
23 MLL00214 #18 Type Tggt Wire, Green/yel 0.5 FT 1.78
24 MLM00003 View Image 14-16 Butt Splice 6.0 EA 0.42
25 MLM00004 View Image 18-22 X #6 Ring Term, Non-insu 2.0 EA 1.03
26 MLW00002 View Image 0.133ID Fiberglas Sleeve(roll) 1.333 FT 2.08
27 214801 View Image Mlmc Thermal Guard 2.0 EA 7.54
28 223901 Heater Tag (Effective 9/7/94 to 3/20/13) 1.0 EA 0.00
29 410903 View Image Danger Not Expln Proof Label 2.0 EA 2.60
30 410906 View Image Dng Not Expln Proof Tag Label (Effective 9/4/97 to 5/10/18) 2.0 EA 4.20
31 A425620 2X4 Split Heater Body Set 1.0 ST 0.00
33 425604 Split Htr Handle Bracket Wld 2.0 EA 0.00
34 425605 Split Htr Cover Plate 2.0 EA 0.00
35 425607 Split Htr Magnetic Catch 1.0 EA 0.00
36 425608 Split Htr Magnet Mod 1.0 EA 0.00

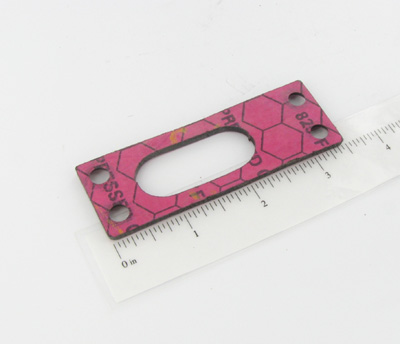

37 425609 View Image Split Htr Gasket 2.0 EA 0.00
38 425610 Split Htr Gasket 2.0 EA 0.00
39 425611 Split Htr Therm Heat Sink 2.0 EA 0.00
40 425612 Split Htr Pivot Pin 1.0 EA 0.00
41 425613 Split Htr Stripper Bar Wld 1.0 EA 0.00
42 1243801 Split Heater Operator's Manual 1.0 EA 0.00
43 MLL00004 View Image #18 Type Tggt Elec Wire 2.0 FT 2.60
Part Number 425601 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
1243801 Split Heater Operator's Manual
 		0.00
1243802 Split Heater Spanish Operator's Manual
0.00
