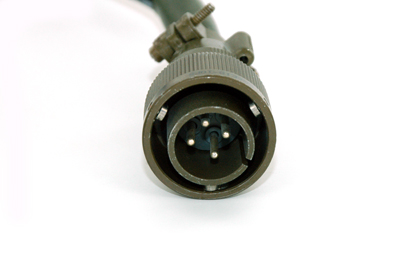

This Heater comes equipped with a 4 Pin Bayonet Plug
This Heater comes equipped with a 4 Pin Bayonet Plug
Photographs and drawings of products are for representational purposes only and may not represent actual product available.
Printable Pdf Document Printable Version
Obsolete & Replaced by T5078501
 TracStar 500 II 6IPS-12DIPS 240V Heater Assembly NON GFCI
Item Number: T5008402
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
TracStar 500 II 6IPS-12DIPS 240V Heater Assembly


Part Number T5008402 Component List
  Item Component Description Quantity Unit
Price
1 T5033601 (assembly) TracStar 500 II 240V Heater Handle/Controller Assembly 1.0 EA 804.00
2 A1242108 View Image 12 Heater Butt Plate Kit 1.0 EA 894.00
3 816399 Model T5008402 Part NO Label 1.0 EA 16.73
4 1242103 View Image Right Heater Body 1.0 EA 728.00
5 1242104 View Image Left Heater Body 1.0 EA 728.00
6 1242105 View Image Heater O.d. Spacer 1.0 EA 113.00
7 1242106 View Image Heater I.d. Spacer 1.0 EA 16.51
8 1242201 View Image 240V Mica/foil Heater Element 1.0 EA 926.00
9 T5008601 View Image Tapped Htr Guide Rod Sprt Brkt 2.0 EA 76.97
10 T5008602 View Image C'sunk Htr Guide Rod Sprt Brkt 2.0 EA 76.97
11 MAN00036 View Image #10-32NFX7/8LG Fhscs SS 10.0 EA 0.41
12 1863102 View Image Htr Terminal Enclosure Half 2.0 EA 53.85
13 1808102 View Image Htr Gasket 1.0 EA 5.26
14 MKI00003 View Image 1X3/16 316SS 100OHM Plat Rtd 1.0 EA 64.04
15 MJK00002 View Image 2.5LG,150-650DEG F Thermometer 1.0 EA 48.72
16 MBA00004 View Image #10-24NC Hex Nut Stl PL 4.0 EA 0.35
17 MBE00004 View Image #10 Reg Splt Lck Washer Stl PL 4.0 EA 0.10
18 MAN00008 View Image #10-24NCX1LG Shcs SS 4.0 EA 0.49
19 MAC00038 View Image #10-24NCX3/4LG Shcs SS 8.0 EA 0.50
20 MAN00023 View Image #8-32NCX5/16LG Shcs SS 19.0 EA 0.49
21 AT5026701 View Image Heater Stripper Bar Kit 1.0 EA 282.00
22 T5008310 (assembly) View Image TracStar 500 II Heater Bag & Frame Assembly 1.0 EA 1,002.00
23 1863202 View Image Stripper Bar Bracket 1.0 EA 203.00
24 MLN00402 View Image #10 X 5/16OD X 1/2LG Spacer 4.0 EA 1.32
25 8163210 Electrical Safety Test Label 1.0 EA 0.00
Part Number T5008402 Supplemental Kits

Item
Item
Price
AT5033601 TracStar 500 II Heater Handle / Controller Conversion Kit
 		821.00
