400 PSI Polygon Drive Assembly
Item Number: 732001
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
400 PSI Polygon Drive Assembly


400 PSI Polygon Drive Assembly


Part Number 732001 Component List
  Item Component Description Quantity Unit
Price
1 730401 Fixed Jaw Frame Upper 1.0 EA 273.00
2 730403 Fixed Jaw Frame Support 2.0 EA 0.00
3 730501 Movable Jaw Frame 1.0 EA 0.00
4 730601 Guide Rod Support Gearbox 1.0 EA 857.00
5 730603 Gearbox Support 2.0 EA 0.00
6 730606 Gearbox Cover Casting (Effective to 7/19/18) 1.0 EA 0.00
6 730605 Gearbox Cover 1.0 EA 789.00
7 730701 Drive Screw 1.0 EA 184.00
8 730801 Drive Shaft 1.0 EA 233.00
9 730901 Input Shaft (Effective to 12/20/18) 1.0 EA 0.00
9 730902 5-11/32" Input Shaft 1.0 EA 0.00
10 731001 Drive Gear 1.0 EA 0.00
11 731101 Input Gear 1.0 EA 0.00
12 731201 Load Cell Cylinder 1.0 EA 173.00
13 731301 Load Cell Piston 1.0 EA 135.00
14 731601 Gauge Bracket 1.0 EA 0.00
15 731701 Guide Rod 2.0 EA 0.00
16 731901 Lower Tube 2.0 EA 0.00
17 733701 Pressure Hose Assy 1.0 EA 62.48
18 735001 View Image 6" Folding Handwheel 1.0 EA 469.00
19 8163348 Angle Scale Label 2.0 EA 33.27
20 SW01301 View Image Split Ring Half 2.0 EA 17.86
21 MAC00435 1/4-20NCX2LG Shcs PL 6.0 EA 0.84
22 MAE00137 #10-24NCX5/8LG Bhscs Stl PL 27.0 EA 0.34
23 MAN00028 #6-32NCX5/8LG Bhscs SS 3.0 EA 0.20
24 MBC00002 View Image #6-32NC Mach Scr Nyl Lck Nut 3.0 EA 0.39
25 MBC00005 View Image 1/4-20NC Fnsh Hex Nyl Lck Nut 6.0 EA 0.39
26 MBE00010 View Image 9/16 Reg Splt Lck Wshr Stl PL (Effective to 9/13/18) 1.0 EA 0.00
26 MBE00039 9/16 Int T Lck Washer Stl PL 1.0 EA 0.00
27 MBG00025 View Image 3/8 Thrust Washer 2.0 EA 6.32
28 MBG00135 3/8 ID Belleville Washer 7.0 EA 0.00
29 MBH00152 View Image 16 X 4 Trapezoidal Nut, RH (Effective to 6/13/22) 1.0 EA 116.00
29 07P0960096 16X4 Trapezoidal Nut, Rght Hnd 1.0 EA 0.00
30 MCA00006 View Image .812 Int Snap Ring 1.0 EA 1.86
31 MCB00090 5/8 ID Retaining Ring Stl PL 4.0 EA 0.40
32 MCF00069 5/16DIAX1-7/8 Grip Clv Pin SS 2.0 EA 11.59
33 MCH00020 1/8DIAX3/4LG Cotter Pin 2.0 EA 0.21
34 MCI00023 View Image 5/16DIAX1LG Dowel Pin 1.0 EA 0.00
35 MCK00066 3/16X3/16X3/4LG SQ Key,rnd End 2.0 EA 6.32
36 MDL00018 View Image O-ring 1.0 EA 0.61
37 MDL00167 O-ring 1.0 EA 0.90
38 MDL00353 .75 ID Double Lip Seal 1.0 EA 25.29
39 MDM00077 View Image Thrust Bearing 1.0 EA 6.85
40 MDM00560 1.50 ID Linear Shaft Bushing 4.0 EA 25.46
41 MDM00563 Sae 841 Bronze Thrust Bearing 1.0 EA 5.65
42 MDM00564 7/8 Id, 1-1/2OD Thrust Bushing 1.0 EA 7.60
43 MDM00565 5/8 ID Needle Roller Bearing 2.0 EA 0.00

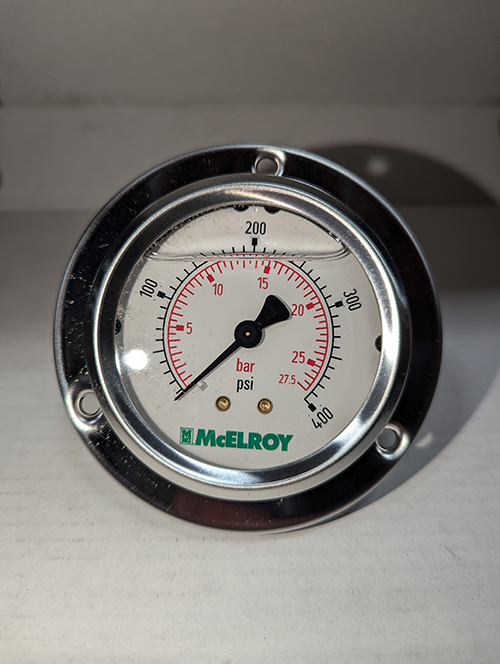

44 MEE00077 View Image 400PSI Pressure Gauge 1.0 EA 119.00
45 MFC00029 4MSAE Plug 2.0 EA 2.88
46 MFC00222 4FSAE/4FSAE/4FSAE Tee 1.0 EA 0.00
47 MFH00120 4MSL Bulkhead QD Nipple 1.0 EA 97.71
48 MFQ00028 4MSL/4MSL/4FSL Swivel Tee 1.0 EA 0.00
49 MFQ00040 View Image 4MSL/4MSAE Elbow 1.0 EA 10.33
50 MFQ00232 4FSL/4MSAE Swivel Adapter 1.0 EA 0.00
51 MJN00018 3/16DIA PF Ball Plunger SS 2.0 EA 21.09
52 MCI00055 1/2DIAX2LG Dowel Pin SS 2.0 EA 0.00
53 MDL00367 .625 ID Double Lip Seal 1.0 EA 17.03
54 MDM00577 1.25 ID X 5/8" Bushing 1.0 EA 22.40
55 8163326 4.5" McElroy Branding Label 2.0 EA 0.00
