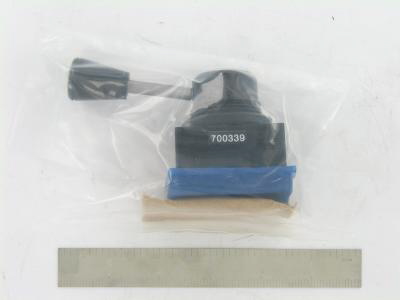

Dynamc HP Prs Rel Vlv Hnd Knob

Need Help?
Visit our Help page for more information.

Feedback?
Share your comments or questions at our Customer Feedback page.

Serial Number Lookup
Get registered date, service date and more by entering your serial number below.
Serial Number:
or Model/Part Number:
Printable Pdf Document Printable Version
DynaMc Hand Pump 2 Jaw Carriage Hydraulic / Plumbing Schematic
Item Number: 1263401
Price: $3,568.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
DynaMc Hand Pump 2 Jaw Carriage Hydraulic / Plumbing Schematic


Part Number 1263401 Component List
  Item Component Description Quantity Unit
Price
A A1263401 (assembly) Dynamc HP 2JAW Plb Fitting Kit 1.0 EA 442.00
B A1263402 (assembly) Dynamc HP 2 Jaw Hose Kit 1.0 EA 271.00

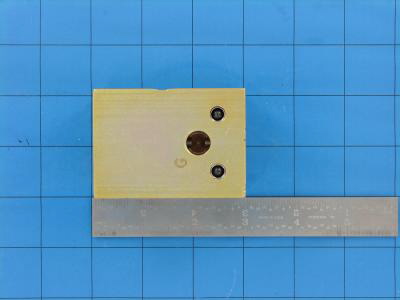

1 1263801 View Image Dynamc Directional Vlv Mnfld 1.0 EA 758.00

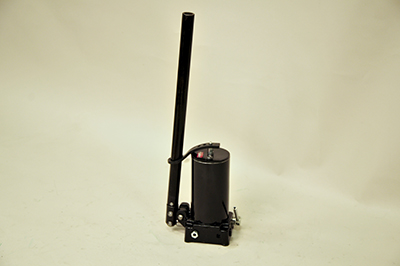

2 MEA00088 View Image Hand Pump W/ Reservoir 1.0 EA 984.00
3 MJJ00037 Replaced by MJJ00002 (Effective to 8/30/12) 1.0 EA 0.00
3 MJJ00002 1" Black Hand Grip 1.0 EA 4.84
4 MEF00173 View Image 4-WAY Directional Valve 1.0 EA 1,048.00
5 MEE00003 View Image 1500PSI/BAR Pressure Gauge 1.0 EA 113.00
6 MAB00009 View Image 1/4-20NCX2-1/4LG Hhcs 4.0 EA 0.74
7 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL 4.0 EA 0.32
8 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 4.0 EA 0.10
9 MBF00005 View Image 1/4 TY 'a' Wide FL Wshr Stl PL 4.0 EA 0.11
10 MAH00046 View Image #10-24NCX1/2LG Shcs SS 3.0 EA 0.39
11 MBE00004 View Image #10 Reg Splt Lck Washer Stl PL 3.0 EA 0.10
12 MAN00011 View Image #10-24NCX1-1/4LG Shcs SS 4.0 EA 0.49
