DynaMc Hand Pump 2 Jaw Low Force Cylinder Assembly Set
Item Number: 1263501
Price: $3,138.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
DynaMc Hand Pump 2 Jaw Low Force Cylinder Assembly Set


Part Number 1263501 Component List
  Item Component Description Quantity Unit
Price

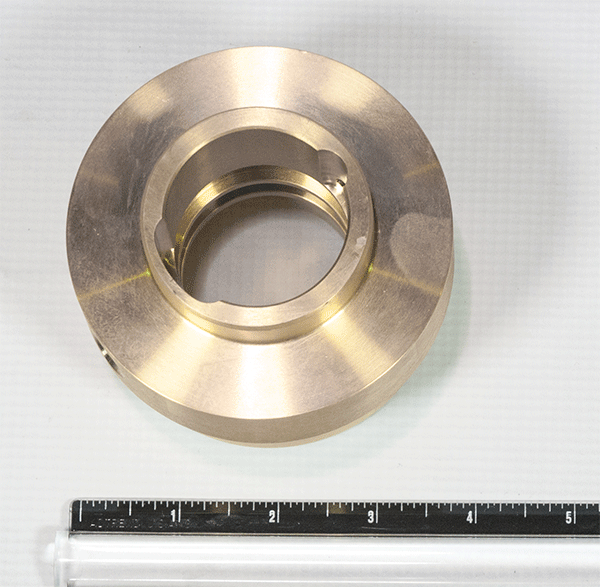

1 1205601 View Image LF Rod Gland 4.0 EA 610.00
2 1254601 Dynamc LF Carriage Cyl 2.0 EA 0.00

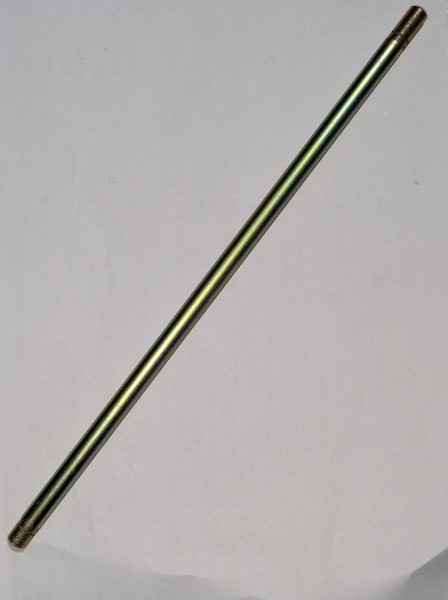

3 1254701 View Image Dynamc Tie Rod 8.0 EA 39.72

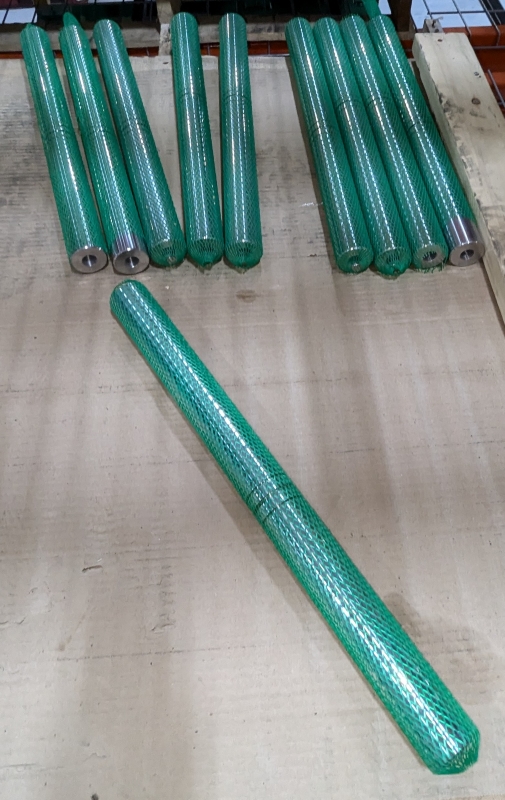

4 1259601 View Image Dynamc Guide Rod 2.0 EA 456.00
5 1856802 View Image LF Piston 2.0 EA 252.00
6 816374 View Image 3.14 SQ IN Tepa Label 1.0 EA 12.64
7 MBA00047 View Image 3/8-24NF Fnsh Hex Nut GR8 PL 16.0 EA 0.42
8 MBG00001 View Image 3/8 Type 'an' FL Wshr Stl PL 16.0 EA 0.26
9 MCB00011 View Image Ext Snap Ring 4.0 EA 2.54
10 MDL00003 View Image O-ring 2.0 EA 0.91
11 MDL00091 View Image Seal 4.0 EA 30.92
12 MDL00092 View Image Wiper 4.0 EA 6.32
13 MDL00188 View Image O-ring 4.0 EA 1.03
14 MDL00224 View Image O-ring 2.0 EA 1.56

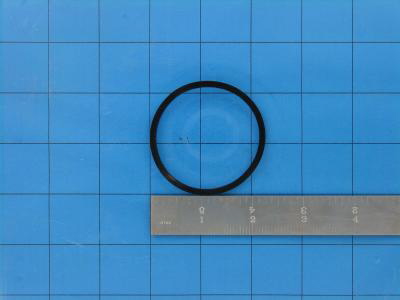

15 MDL00225 View Image Back-up Ring (Effective to 3/13/18) 4.0 EA 3.03
15 MDL00369 Back-up Ring 4.0 EA 0.00
16 MDM00279 View Image 2 OD Gland Bearing Ring 4.0 EA 4.31
