DynaMc EP 220-240V, 50/60Hz HPU Electrical Assembly
 with Euro Plug & 0-400 Fusion Valve
Item Number: 1272907
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
DynaMc EP 220-240V, 50/60Hz HPU Electrical Assembly


DynaMc EP 220-240V, 50/60Hz HPU Electrical Assembly


DynaMc EP 220-240V, 50/60Hz HPU Electrical Assembly


Part Number 1272907 Component List
  Item Component Description Quantity Unit
Price
CB1 MLS00018 10A 2P PB Pnl Mnt Ckt Breaker 1.0 EA 118.00
C1 MKF00008 15MFD Capacitor 1.0 EA 59.20
F1 MLQ00001 5 Amp Fuse 1.0 EA 6.93
F2 MLQ00001 5 Amp Fuse 1.0 EA 6.93
K1 MKK00002 Solid State Relay 1.0 EA 236.00

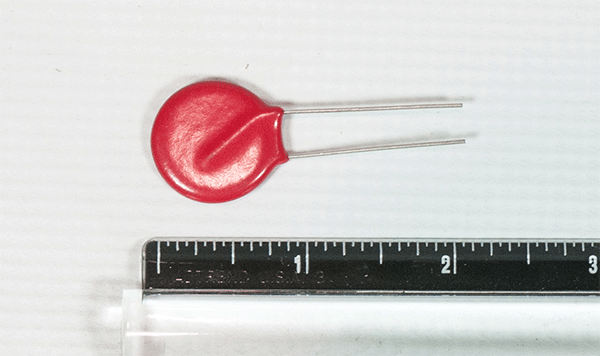

RV1 MQH00031 View Image 275V, 23JOULES Mov 1.0 EA 2.06

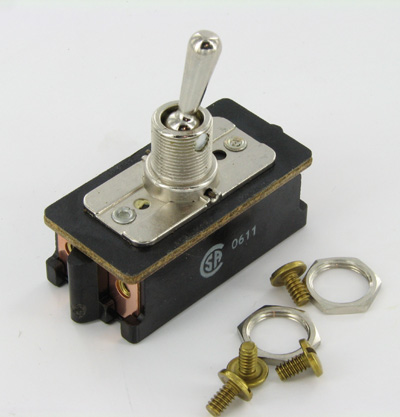

S1 MKE00004 View Image Dpdt On-off Toggle Switch 1.0 EA 73.88
VM1 MKH00080 View Image 85-264 Vrms Digital Voltmeter 1.0 EA 229.00
1 1273202 DM EP Hpu EL Box Mod W/cooler 1.0 EA 0.00
2 829201 View Image Danger High Voltage Label 1.0 EA 5.02

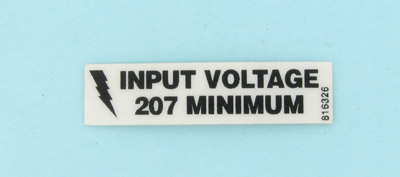

3 816326 View Image 207 Min Input Voltage Label 1.0 EA 16.96
4 MLH00001 View Image Switch Boot 1.0 EA 5.67
5 MLG00001 View Image Switch Guard 1.0 EA 2.63
6 MAH00036 View Image #6-32NCX3/8LG Hwh TC Scr 2.0 EA 0.29

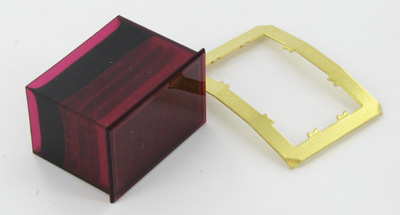

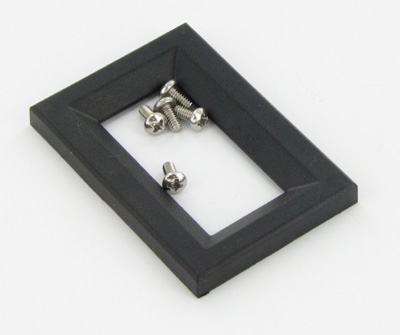

7 MLN00384 View Image Voltmeter Bezel 1.0 EA 39.38
8 1271502 DM EP 600-1400 Cntrl Pcb Assy 1.0 EA 0.00

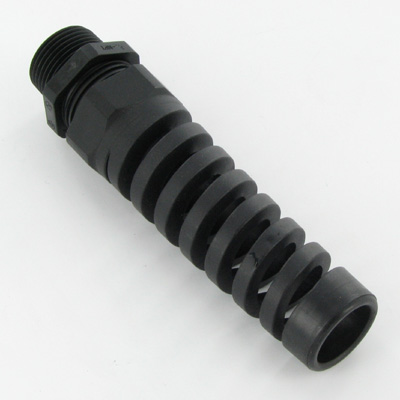

9 MLK00062 View Image Strain Relief Connector 1.0 EA 21.85
10 MLK00102 M20 X 2-HOLE Strain Relief 2.0 EA 0.00
11 MLK00100 M20 Strain Relief Connector 2.0 EA 0.00
12 MEA00100 Dynamc EP Hpu Power Pack 1.0 EA 4,088.00
13 MLF00073 View Image Connector With 1M Pigtail 1.0 EA 145.00
17 MHA00009 3/8ID X 9/16OD Rubber Tubing 0.13 FT 4.28
18 841303 View Image 12/3 Pwr Cord W/shield TW Pair 3.0 FT 49.26
19 MLE00049 #20/2 Elec Cable 3.0 FT 0.00
20 MAH00107 View Image 1/4-20NCX1-1/4LG Bhscs SS 2.0 EA 0.40
21 MBH00080 Unthrd Female Nylon 6/6 Spacer 2.0 EA 0.00
22 MLN00175 1/4 X 1/2OD Seal Washer 2.0 EA 0.39
23 MBC00005 View Image 1/4-20NC Fnsh Hex Nyl Lck Nut 2.0 EA 0.39
24 MAH00174 #10-24NCX3/4LG Phpms 2.0 EA 0.12
25 MBF00004 View Image #10 TY 'a' Wide FL Wshr Stl PL 2.0 EA 0.10
26 MLN00194 #10 X 1/2 OD Seal Washer 2.0 EA 0.00
27 MBC00004 View Image #10-24NC Mach Scr Nyl Lck Nut 2.0 EA 0.31
28 MLM00146 18-22 X 1/4 Female Disconnect 4.0 EA 2.66
29 MLL00054 #20 Mtw/tew Wire, Black 1.0 FT 0.24
30 MLL00055 #20 Mtw/tew Wire, White 0.8 FT 0.00
31 MLM00017 View Image 14-16 X 1/4 Female Disconnect 8.0 EA 0.89
32 MLM00171 14-16 X #6 Ring Terminal 6.0 EA 1.96
33 MLM00261 18-22 X #6 Ring Terminal 6.0 EA 1.95

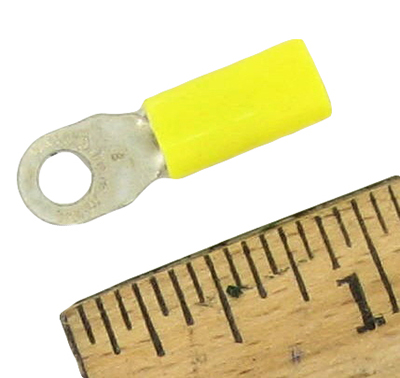

37 MLM00148 View Image 10-12 X #8 Ring Terminal 2.0 BX 0.00
38 MLM00002 View Image 2/16-2/22 Closed End Splice 4.0 EA 0.80
39 MLL00014 #16 Mtw/tew Wire, Black 2.0 FT 0.72
40 MLL00045 #16 Mtw/tew Wire, White 2.0 FT 0.00
41 MLL00080 #20 UL1007/UL1569 Wire, Blue 0.5 FT 0.00
42 MLL00081 #20 UL1007/UL1569 Wire, Brown 0.5 FT 0.00
44 8163169 28/250 Power Circuit Label 1.0 EA 12.22
46 MLR00039 Type 3AG Fuse Holder 2.0 EA 0.00
47 MAN00079 #6-32NC X 1/2LG Bhscs SS 2.0 EA 0.29
48 MBC00002 View Image #6-32NC Mach Scr Nyl Lck Nut 2.0 EA 0.39
49 MLN00206 #6 X 3/8OD Seal Washer SS 2.0 EA 0.00
51 MLM00266 18-22X0.11 Ins Fem Disconnect 2.0 EA 0.00
54 MLK00059 M16 Strain Relief 1.0 EA 3.02
55 MLN00113 5.5" X .095" Cable Tie 5.0 EA 0.17
56 MLE00098 #18/3 Sjo Elec Cable 3.0 FT 0.00

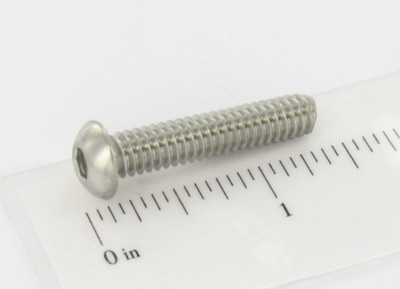

57 MAR00013 View Image M4-.7MMX12MM LG Chsms SS 1.0 EA 0.29
58 MLM00275 18-22 X #8 Ring Terminal 2.0 EA 0.00
59 MLM00001 View Image 14-16 X #8 Ring Terminal 1.0 EA 0.46
60 MLS00036 Clear Pushbutton Ckt Brkr Boot 1.0 EA 8.74

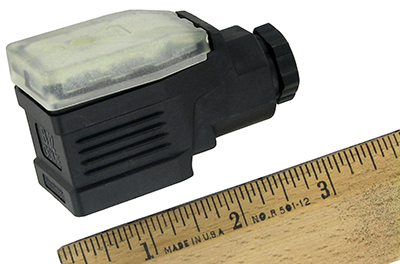

61 MQF00209 View Image Din 43650 Conn W/ Clear Cover 2.0 EA 31.27
62 MQF00211 View Image Gasket 2.0 EA 28.89
63 MLM00217 #16 X 8MM Insulated Ferrule 4.0 EA 0.85

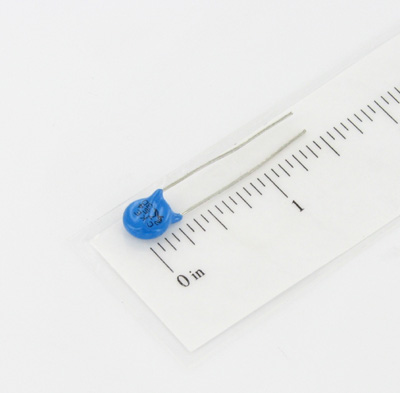

64 MQH00365 View Image 250V 130J 20MM Radial Varistor 2.0 EA 0.00
65 MLE00119 3X1.0MM2 20FT. Cbl Assy 1.0 EA 106.00
66 MAJ00014 #2-56NCX1/4LG Phpms Stl Pl/ss 4.0 EA 27.60
