DynaMc 412 Electric Pump 4 Jaw Carriage Assembly
Item Number: 1274801
Price: $18,277.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
DynaMc 412 Electric Pump 4 Jaw Carriage Assembly


Part Number 1274801 Component List
  Item Component Description Quantity Unit
Price
1 A1254201 View Image Dynamc Clamp Knob Assy 4.0 EA 201.00
2 888301 Dynamc 250 All Thread (Effective to 6/14/10) 1.0 EA 0.00
3 1203101 View Image 12IPS/DIPS Master Insert 8.0 EA 363.00
4 1203206 View Image Dynamc Outer Fixed Jaw 1.0 EA 1,240.00
5 1203207 Dynamc Inner Fixed Jaw 1.0 EA 1,192.00
6 1203302 View Image Dips Upper Jaw 4.0 EA 888.00
7 1203402 View Image Guide Rod Support Plate 1.0 EA 447.00
8 1210501 View Image Clamp Pad 4.0 EA 29.31
9 1217101 View Image Eyebolt 4.0 EA 97.38
10 1226501 View Image .500" X 3" Jaw Pivot Pin 4.0 EA 25.24

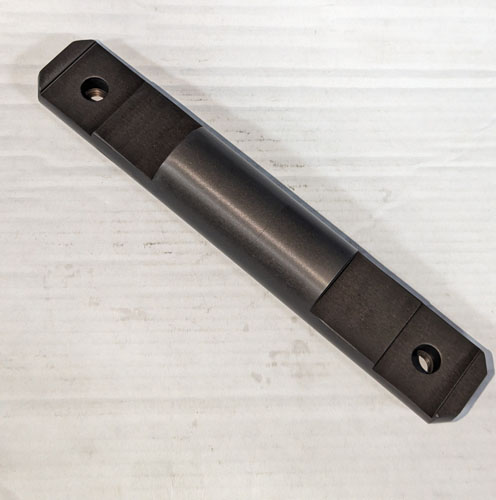

11 1258601 View Image Dynamc Brace 2.0 EA 168.00
12 1259401 View Image Dynamc Moveable Jaw 2.0 EA 1,381.00
13 1259501 Dynamc Outer Fixed Jaw Spacer 2.0 EA 74.23
14 1263201 (assembly) DynaMc Hand Pump Low Force Cylinder Assembly Set 1.0 EA 3,138.00
15 1264201 Dynamc Roll Bar Skid Wld 1.0 EA 1,515.00
16 1268501 View Image Dynamc Brace Knob 4.0 EA 151.00
17 1268701 Dynamc Skid Wld 1.0 EA 797.00
18 1274601 (assembly) DynaMc EP Carriage Hydraulic/Plumbing Schematic 1.0 EA 750.00
19 1818501 View Image 12/18 Speed Wrench Assy 1.0 EA 231.00
20 MAB00091 View Image 3/4-10NCX1-1/2LG Hhcs 2.0 EA 3.16
21 MAB00177 3/4-10NCX1-3/4 LG Hhcs GR8 2.0 EA 4.06
22 MAG00002 View Image #10-24NCX3/8LG Skt Set Scr 4.0 EA 1.27
23 MAN00017 View Image 1/2-13NCX1-1/4LG Shcs SS 2.0 EA 2.05
24 MAN00018 View Image 1/2-13NCX4LG Shcs SS 2.0 EA 5.27
25 MAN00062 View Image #10-24NCX1/2 LG Bhscs SS 8.0 EA 0.29
26 MBA00009 View Image 1/2-13NC Fnsh Hex Nut Stl PL (Effective to 6/14/10) 2.0 EA 0.46
27 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 4.0 EA 0.18
28 MBG00010 View Image 3/4 Flat Washer Bla 2.0 EA 5.74
29 MCE00003 View Image 1/4 DIAX3.00 Grip Detent Pin 16.0 EA 7.94
30 MCE00007 View Image 1/2DIAX3.00 Grip Detent Pin 4.0 EA 12.24
31 MDL00086 Seal 4.0 EA 15.66
32 MDM00404 Bushing 2.0 EA 24.47
33 MCF00051 View Image 1/2DIAX9.68/9.63 Grip Clv Pin 1.0 EA 50.06
34 MCH00015 View Image 3/8DIAX1-7/8LG Hair Pin 1.0 EA 0.51
Part Number 1274801 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
1272601 DynaMc Electric Pump Fusion Machine Operator's Manual
 		154.00
1272602 DynaMc Electric Pump Fusion Machine Spanish Operator's Manual
 		0.00
