Hot Tap Tool Shaft Assembly
Item Number: 248701
Price: $1,020.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Hot Tap Tool Shaft Assembly


Part Number 248701 Component List
  Item Component Description Quantity Unit
Price
1 248801 Gland 1.0 EA 0.00
2 248901 Cutter Shaft 1.0 EA 715.00
3 249701 Gland Wear Band 1.0 EA 0.00

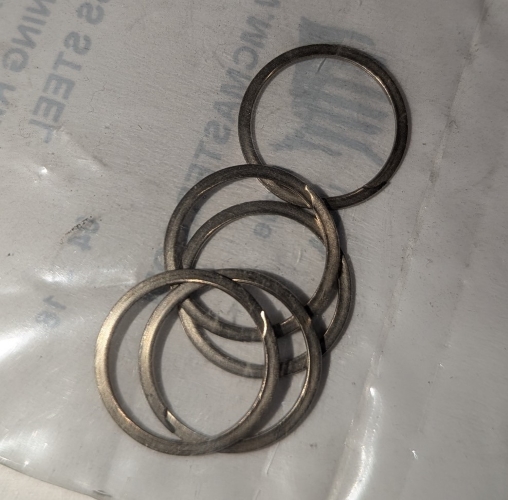

4 MCB00087 Spiral Retaining Ring (Effective to 6/5/17) 2.0 EA 0.00
4 MCB00089 5/8 OD Retaining Ring 18-8 SS 1.0 EA 5.57
5 MDL00131 View Image O-ring 1.0 EA 0.85
6 MDL00269 .625 ID Wiper 1.0 EA 0.00
7 MDL00334 .924ID X .116W O-ring 1.0 EA 0.00
8 MGB00047 1/8NPT Ball Valve 1.0 EA 0.00
9 MCB00088 View Image 19/32OD Retaining Ring 18-8 SS 1.0 EA 6.15
