Printable Pdf Document Printable Version
Motor Modification Assembly
Item Number: 2493002
Price: $3,351.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Motor Modification Assembly


Motor Modification Assembly


Part Number 2493002 Component List
  Item Component Description Quantity Unit
Price
1 2483201 20A/240V Cord W/nema 6-20 Plug 1.0 EA 311.00
2 2493003 Facer Motor Blanking Box 1.0 EA 430.00
3 2493004 Facer Motor Mod 1.0 EA 0.00
4 MAP00009 #12 X 2LG Phpsms 4.0 EA 0.00
4 MAP00002 #12X2.5LG Phssms (Effective 5/17/22 to 6/26/22) 4.0 EA 0.00
5 MDB00123 Toggle Switch for MDB00120/121 1.0 EA 101.00
6 MDB00127 Strain Relief for MDB00120 (Effective to 6/5/18) 1.0 EA 30.91

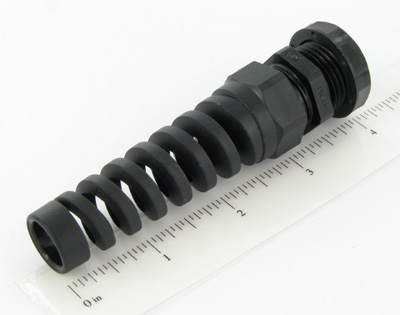

6 MLK00064 View Image Strain Relief Connector 1.0 EA 9.77
7 MKF00013 310 Vac, .1MFD Capacitor 1.0 EA 0.00
8 MLM00176 14-16 X 3/16 Male Disconnect (Effective to 6/5/18) 4.0 EA 0.00
8 MLM00017 View Image 14-16 X 1/4 Female Disconnect 2.0 EA 0.89
9 MLM00085 10-12 X 1/4 Female Disconnect 2.0 EA 0.00
10 MLL00054 #20 Mtw/tew Wire, Black 0.25 FT 0.00
11 MLN00311 View Image 1/8" Black Shrink Tubing 1.5 IN 3.00
