Printable Pdf Document Printable Version
Acrobat 315mm 3 Jaw Assembly
Item Number: 31500201
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Acrobat 315mm 3 Jaw Assembly


Part Number 31500201 Component List
  Item Component Description Quantity Unit
Price
1 31500301 (assembly) Acrobat 315mm Cylinder Set Assembly 1.0 EA 0.00
2 31502501 Mounting Bolt 2.0 EA 0.00
3 31502601 Hyd Cyl Connect Tube 2.0 EA 97.56
4 31503001 Lower Movable Jaw 2.0 EA 699.00
5 31503101 Lower Fixed Jaw 1.0 EA 702.00
6 31503201 Upper Jaw 3.0 EA 505.00
7 31503401 Moveable Jaw Spacer Tube 2.0 EA 0.00
8 31503501 Jaw Link 3.0 EA 72.93

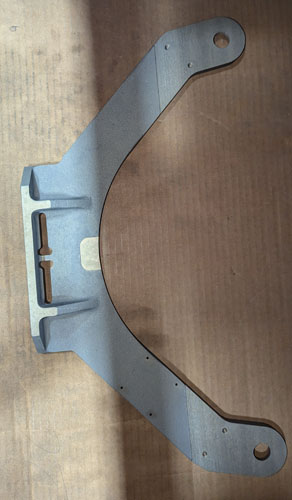

9 31506102 View Image Guide Rod Support Plate 1.0 EA 381.00
10 A829101 View Image Long Clamp Knob Assembly 3.0 EA 92.69
11 MAB00003 View Image 1/4-20NCX3/4LG Hhcs 8.0 EA 0.31
12 MAB00006 View Image 1/4-20NCX1-1/2LG Hhcs (Effective to 9/17/19) 4.0 EA 0.46
12 MAB00255 5/16-18NCX12LG Hhcs GR8 2.0 EA 0.00
13 MAB00091 View Image 3/4-10NCX1-1/2LG Hhcs 2.0 EA 3.16
14 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL 4.0 EA 0.32
15 MBF00005 View Image 1/4 TY 'a' Wide FL Wshr Stl PL 4.0 EA 0.11
16 MBF00024 3/4" Uss Hardened Flat Washer 2.0 EA 0.00
17 MBF00039 1-3/8 Flat Washer Stl PL 2.0 EA 0.00
18 MBH00143 .870-.902" ID X ¼-20 Tube Nut (Effective to 9/17/19) 4.0 EA 0.00
19 MCE00001 View Image 1/4DIAX1.60 Grip Detent Pin 6.0 EA 11.36
20 MCF00064 1/2DIAX 2LG Cotterless Clv Pin 6.0 EA 7.00
21 MCG00010 1/4DIAX1-1/4LG Roll Pin 6.0 EA 0.95
22 MCK00019 View Image 1/2DIAX1-1/2LG Lck Pin Stl PL 3.0 EA 7.81
23 MFC00134 6MSAE/6MSAE Adapter 2.0 EA 24.90
24 MFC00155 6FSAE/6MSAE/6FSAE Branch Tee 2.0 EA 0.00
25 MFH00062 View Image 3/8 Fsae Quick Disc Coupler 1.0 EA 210.00
26 MFH00063 View Image 3/8 Fsae Quick Disc Nipple 1.0 EA 100.00

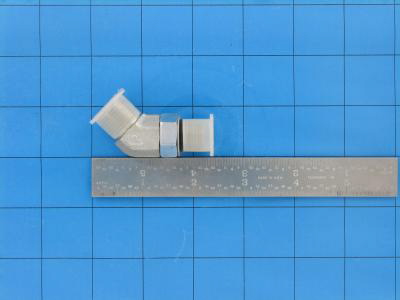

27 MFQ00010 View Image 6MSL/6MSAE Elbow 45 4.0 EA 25.44
28 MJB00022 1/2-13 X 5LG Eye Bolt 3.0 EA 32.02
29 MJD00078 1" X 800LB Mntg Ring SS 4.0 EA 0.00
30 MBA00006 View Image 5/16-18NC Fnsh Hex Nut Stl PL 2.0 EA 0.33
31 MAH00093 View Image #4-40NCX3/16LG Lock Scr 4.0 EA 0.32
