1236 Plumbing Schematic
Item Number: 3600802
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
1236 Plumbing Schematic


Part Number 3600802 Component List
  Item Component Description Quantity Unit
Price
A A3600802 (assembly) 36 Fitting Kit 1.0 EA 2,053.00
B A3600801 (assembly) 36 Hose Kit 1.0 EA 3,746.00
1 MFD00036 1-1/2NPT Elbow Black MI PL 1.0 EA 50.64
2 MFD00037 View Image 1-1/2NPT St Elbow Black MI PL 1.0 EA 0.00
3 MFI00016 View Image 3/8NPT Xhs Close Nipple PL 4.0 EA 17.68

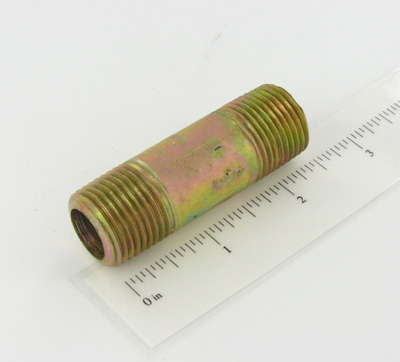

4 MFI00027 View Image 1/2NPT Xhs Close Nipple PL 1.0 EA 50.62
5 MFI00029 View Image 1/2NPTX2-1/2LG Xhs Nipple PL 2.0 EA 34.39
6 MFD00021 View Image 3/4NPT Elbow Black MI 1.0 EA 16.99
7 MFC00071 View Image 1-1/2SAE 4 Blt O-ring Flng Kit 1.0 EA 104.00
8 MFI00085 View Image 1-1/2NPT Xhs Close Nipple PL 1.0 EA 36.13
