1236 Heater Panel & Frame Assembly
Item Number: 3617001
Price: $9,853.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
1236 Heater Panel & Frame Assembly


Part Number 3617001 Component List
  Item Component Description Quantity Unit
Price

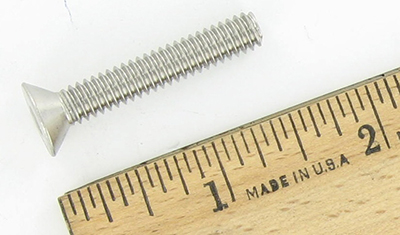

1 MAN00065 View Image 1/4-20NC X 1-1/2 LG Fhscs SS 2.0 EA 0.61

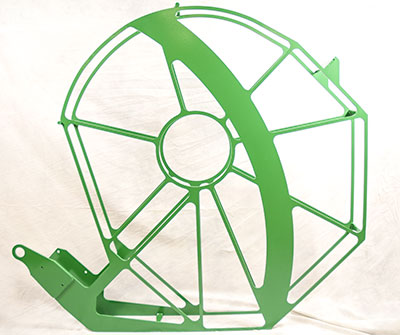

2 3617002 View Image Htr Panel Frame Weldment 1.0 EA 5,695.00

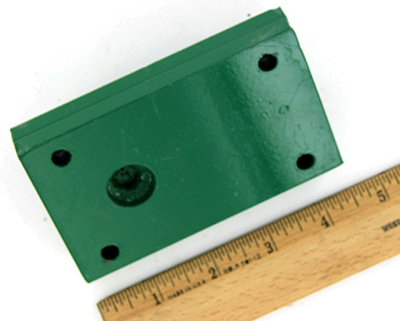

3 3617005 View Image Htr Panel Frame Rest Plate 1.0 EA 105.00
4 3617007 View Image Heater Insulating Panel 1.0 EA 1,751.00
5 3617008 View Image Heater Insulating Panel 1.0 EA 1,751.00
6 MAB00065 View Image 3/8-16NCX1-1/4LG Hhcs 4.0 EA 0.52
7 MBA00007 View Image 3/8-16NC Fnsh Hex Nut Stl PL 4.0 EA 0.29
8 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 4.0 EA 0.12
10 3617004 Htr Panel Frame Retainer Plate 1.0 EA 288.00
11 3617020 View Image Stop Plate Wld (Effective 3/26/07 to 3/2/16) 1.0 EA 0.00
13 MAB00005 View Image 1/4-20NCX1-1/4LG Hhcs 4.0 EA 0.31
14 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 6.0 EA 0.10
15 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL 6.0 EA 0.32
16 3617019 Stop Plate 1.0 EA 168.00
