PitBull 14 Butt Plate 100-120V,50/60Hz Heater Assembly
 Obsolete
 03/2002-09/2004
Item Number: 424313
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
PitBull 14 Butt Plate 100-120V,50/60Hz Heater Assembly


PitBull 14 Butt Plate 100-120V,50/60Hz Heater Assembly


PitBull 14 Butt Plate 100-120V,50/60Hz Heater Assembly


PitBull 14 Butt Plate 100-120V,50/60Hz Heater Assembly


Part Number 424313 Component List
  Item Component Description Quantity Unit
Price
1 214801 View Image Mlmc Thermal Guard 1.0 EA 7.54
2 A424901 View Image 14 MultiMc/Socket Fusion Heater Screw&Driver Kit 1.0 EA 50.32
3 410906 View Image Dng Not Expln Proof Tag Label 1.0 EA 4.20
4 424402 View Image Htr Body 1.0 EA 301.00
6 425901 View Image 4MLMC Htr Support Bracket 2.0 EA 31.44
7 426001 View Image 4MLMC Htr Support Bkt Gasket 2.0 EA 2.39
9 434201 View Image Replaced by A434202 1.0 EA 0.00
10 436001 Replaced by A437801 1.0 EA 0.00
11 816382 View Image Temperature Scale Label 1.0 EA 7.33

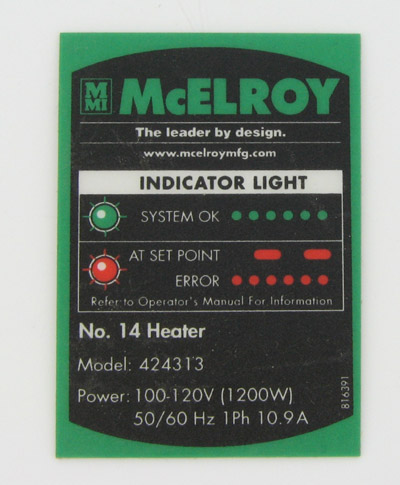

12 816391 View Image Model 424313 Part NO Label 1.0 EA 11.19
13 T5030001 View Image Heater Control Pcb Assy 1.0 EA 156.00
14 T5030002 View Image Potentiometer Assy 1.0 EA 15.05
15 T5030103 View Image Heater Handle/enclosure 1.0 EA 25.00
16 MAH00036 View Image #6-32NCX3/8LG Hwh TC Scr 1.0 EA 0.29
18 MAH00052 View Image 1/4-20NC X 3/4"LG Shcs SS 2.0 EA 0.49
19 MAH00105 View Image #10-24NCX3/4LG Fhscs SS 4.0 EA 0.39
20 MAL00010 View Image #6-19X3/4LG Torx T15 Pan Hdscr 7.0 EA 0.56
21 MAL00011 View Image #6-19X1/4LG Torx T15 Pan Hdscr 1.0 EA 0.66
22 MBA00067 View Image 3/8-32NEF X 0.22 X 1/4 Sealnut 1.0 EA 6.22
23 MDL00018 View Image O-ring 1.0 EA 0.61
24 MDL00243 View Image .070DIA Buna-n O-ring Stock 2.167 FT 1.03
25 MJJ00023 View Image Control Knob 1.0 EA 5.24
26 MJK00001 View Image 5LG,150-650DEG F Thermometer 1.0 EA 48.72
27 MKI00003 View Image 1X3/16 316SS 100OHM Plat Rtd 1.0 EA 64.04
28 MLD00011 View Image 120V, 600W, 5/8 X 4 Crtg Htr 2.0 EA 86.16
29 MLL00004 View Image #18 Type Tggt Elec Wire 1.5 FT 2.60
30 MLM00004 View Image 18-22 X #6 Ring Term, Non-insu 1.0 EA 1.03
31 MLM00010 View Image 2/12-4/18 Closed End Splice 1.0 EA 1.20
32 436301 View Image Cover Plate Gasket 1.0 EA 7.53
33 MLN00219 Fiberglass Tape (per Ft) 0.666 FT 0.56
Part Number 424313 Supplemental Kits

Item
Item
Price
A437801 14 Heater, Long to Short Handle Conversion Kit
 		125.00
A438001 14 120V Heater Handle / Controller Rebuild Kit
 		560.00
