Obsolete & Replaced by 469801
 PitBull® No. 14 butt plate 100-120v,50/60hz Heater Assembly
 (9/2004-2/2020)
Item Number: 424317
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
PitBull 14 Butt Plate 100-120V,50/60Hz Heater Assembly


PitBull 14 Butt Plate 100-120V,50/60Hz Heater Assembly


Part Number 424317 Component List
  Item Component Description Quantity Unit
Price
1 214801 View Image Mlmc Thermal Guard 1.0 EA 7.54
2 410906 View Image Dng Not Expln Proof Tag Label (Effective 9/22/04 to 12/1/09) 1.0 EA 4.20
3 437203 View Image Small Htr Handle/enclosure 1.0 EA 31.57
4 T5030001 View Image Heater Control Pcb Assy 1.0 EA 156.00
5 MJK00001 View Image 5LG,150-650DEG F Thermometer 1.0 EA 48.72
6 MKI00003 View Image 1X3/16 316SS 100OHM Plat Rtd 1.0 EA 64.04
7 T5030002 View Image Potentiometer Assy 1.0 EA 15.05
8 816382 View Image Temperature Scale Label 1.0 EA 7.33
9 MJJ00023 View Image Control Knob 1.0 EA 5.24
10 MBA00067 View Image 3/8-32NEF X 0.22 X 1/4 Sealnut 1.0 EA 6.22
11 MDL00243 View Image .070DIA Buna-n O-ring Stock 1.5 FT 1.03
12 MDL00248 View Image O-ring 2.0 EA 0.30
13 MLN00219 Fiberglass Tape (per Ft) 0.667 FT 0.56
14 MAL00011 View Image #6-19X1/4LG Torx T15 Pan Hdscr 1.0 EA 0.66
15 MLM00002 View Image 2/16-2/22 Closed End Splice 1.0 EA 0.80
16 MAH00036 View Image #6-32NCX3/8LG Hwh TC Scr (Effective 9/22/04 to 2/13/19) 1.0 EA 0.29
16 MAL00024 #8-32NCX1/4LG Hwhsms SS 1.0 EA 0.34
17 MLM00004 View Image 18-22 X #6 Ring Term, Non-insu (Effective 9/22/04 to 2/13/19) 1.0 EA 1.03
17 MLM00372 18-22 X #8 Hi-temp Ring Term 1.0 EA 1.27
18 MLL00004 View Image #18 Type Tggt Elec Wire (Effective 9/22/04 to 8/29/16) 1.0 FT 2.60
18 MLL00214 #18 Type Tggt Wire, Green/yel 1.25 FT 1.78
19 MAH00052 View Image 1/4-20NC X 3/4"LG Shcs SS 2.0 EA 0.49
20 MAL00013 View Image #6-19X1/2LG Torx T15 Pan Hdscr 2.0 EA 0.50
21 MAL00010 View Image #6-19X3/4LG Torx T15 Pan Hdscr 4.0 EA 0.56
22 A424901 View Image 14 MultiMc/Socket Fusion Heater Screw&Driver Kit 1.0 EA 50.32
23 424402 View Image Htr Body 1.0 EA 301.00
24 436301 View Image Cover Plate Gasket 1.0 EA 7.53
25 437101 View Image Heater Handle Wld 1.0 EA 122.00
26 425901 View Image 4MLMC Htr Support Bracket 2.0 EA 31.44
27 MAH00105 View Image #10-24NCX3/4LG Fhscs SS 4.0 EA 0.39
28 434201 View Image Replaced by A434202 (Effective 9/22/04 to 6/29/17) 1.0 EA 0.00
28 434202 View Image 13AMP/120V Power Cord 1.0 EA 45.10
29 426001 View Image 4MLMC Htr Support Bkt Gasket 2.0 EA 2.39
30 MLD00011 View Image 120V, 600W, 5/8 X 4 Crtg Htr 2.0 EA 86.16

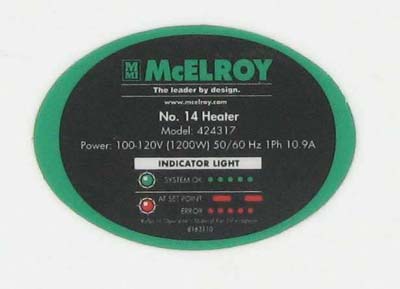

31 8163110 View Image Model 424317 Part NO Label 1.0 EA 10.76
32 8163210 Electrical Safety Test Label 1.0 EA 0.00
33 434302 Power Cord Strain Relief 1.0 EA 14.35
34 MBG00133 1/4" Belleville Spring Wshr SS 2.0 EA 1.64
35 MLW00002 View Image 0.133ID Fiberglas Sleeve(roll) 0.25 FT 2.08
Part Number 424317 Supplemental Kits

Item
Item
Price
A437801 14 Heater, Long to Short Handle Conversion Kit
 		125.00
A438001 14 120V Heater Handle / Controller Rebuild Kit
 		560.00
