PitBull 14 Fusion Machine Assembly
PitBull 14 Fusion Machine Assembly
Photographs and drawings of products are for representational purposes only and may not represent actual product available.
Printable Pdf Document Printable Version
PitBull 14 Fusion Machine Assembly
Item Number: 430101
Price: $2,607.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
PitBull 14 Fusion Machine Assembly


Part Number 430101 Component List
  Item Component Description Quantity Unit
Price
1 A214201 View Image Butt Fusion Screw/Driver Kit 1.0 EA 42.49

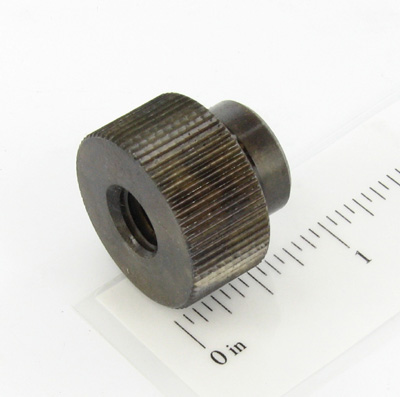

2 A829001 View Image Short Clamp Knob Assembly 1.0 EA 92.69
3 A829101 View Image Long Clamp Knob Assembly 1.0 EA 92.69
4 MAB00077 View Image 3/8-16NCX1LG Hhcs GR8 8.0 EA 0.70
5 MBE00006 View Image 5/16 Reg Splt Lck Wshr Stl PL 2.0 EA 0.11
6 MBA00006 View Image 5/16-18NC Fnsh Hex Nut Stl PL 2.0 EA 0.33

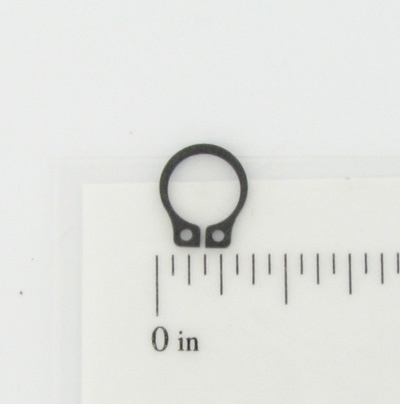

7 MCB00022 View Image Ext Snap Ring 4.0 EA 0.43
8 MAH00074 View Image #8-32NCX3/8LG Fhscs SS 4.0 EA 0.29
9 MAF00041 View Image 1/2DIAX1/2LG Skt HD Shldr Scr 4.0 EA 3.49
10 MAH00036 View Image #6-32NCX3/8LG Hwh TC Scr 4.0 EA 0.29
11 MAH00093 View Image #4-40NCX3/16LG Lock Scr 4.0 EA 0.32
12 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 10.0 EA 0.12
13 MAH00073 View Image 1/4-20NCX5/8LG Fhscs SS 4.0 EA 0.25
14 MDL00051 View Image 1.00 ID X 1.25 OD 9815 Seal 8.0 EA 10.35
15 MFA00001 View Image 1/16-27 Soc Pipe Plug 2.0 EA 1.08
16 430301 View Image 4DIPS Upper Jaw 2.0 EA 202.00

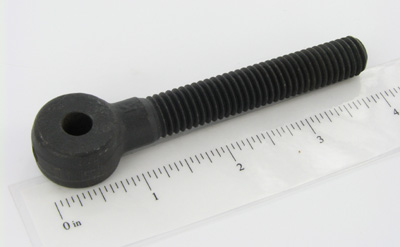

17 430501 View Image 1/2-13NCX3-1/2LG Eye Bolt 2.0 EA 50.94

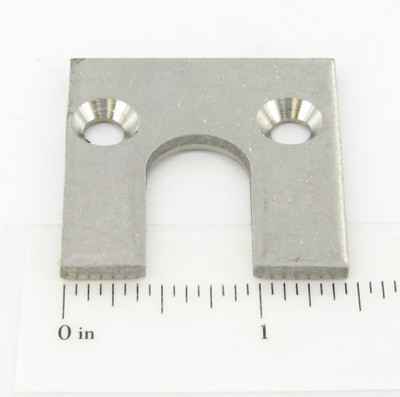

18 402001 View Image Clamp Pad 2.0 EA 14.22
19 402301 View Image Insert Keeper Spring Pin Assy 4.0 EA 5.80
20 402801 (assembly) View Image 24Long Lever Handle Assembly 2.0 EA 52.10
21 430701 View Image 4IPS/DIPS Master Insert 4.0 EA 59.25

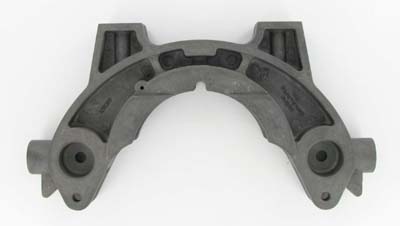

23 430201 View Image 4DIPS Lower Fixed Jaw 1.0 EA 391.00

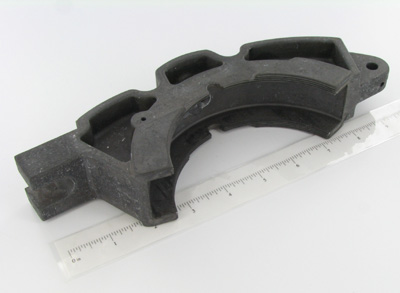

24 430401 View Image 4DIPS Lower Movable Jaw 1.0 EA 441.00

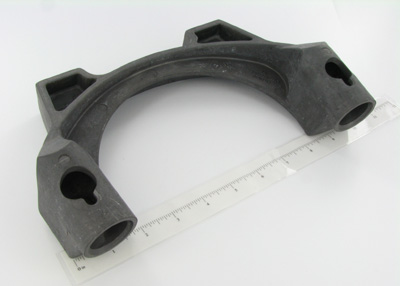

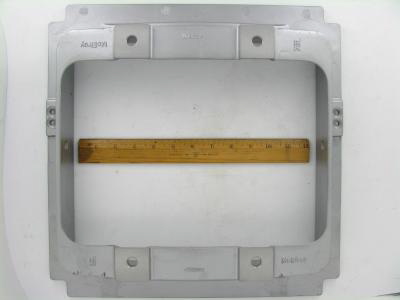

25 432601 View Image 4DIPS Base 1.0 EA 363.00
26 431001 View Image Guide Rod Support 1.0 EA 234.00

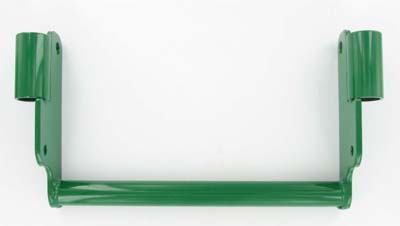

27 431101 View Image Yoke Weldment 1.0 EA 248.00

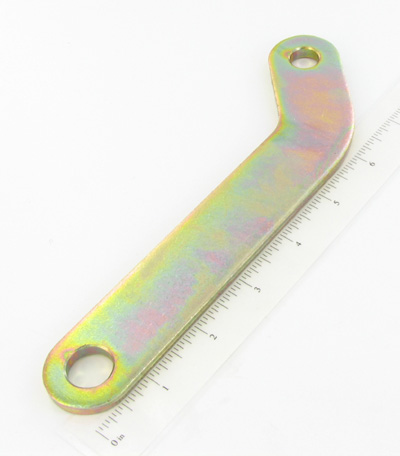

28 421001 View Image 14 Link 2.0 EA 37.00
29 421201 View Image 14 Yoke Lock Pivot 2.0 EA 28.59

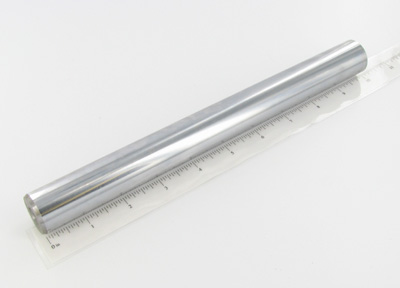

30 421301 View Image 14 Guide Rod 2.0 EA 134.00

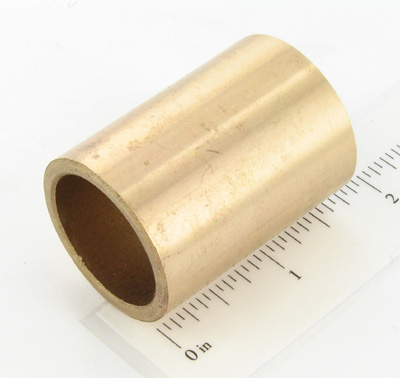

31 421701 View Image Guide Rod Bushing Mod 4.0 EA 25.63

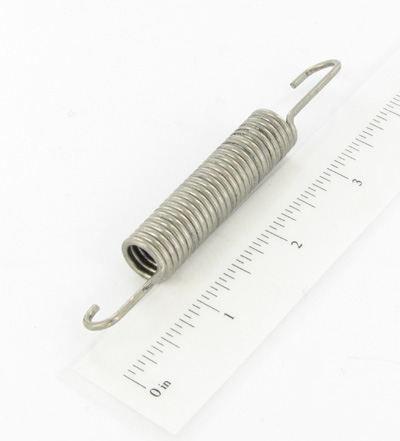

32 421801 View Image Pivot Locking Spring 2.0 EA 16.41

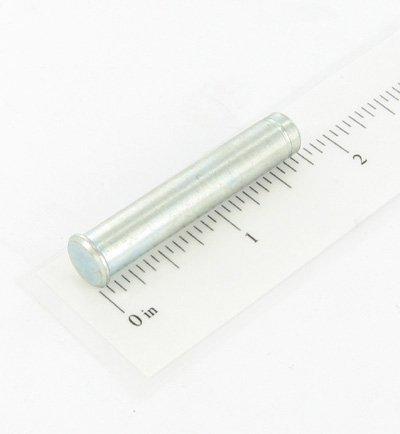

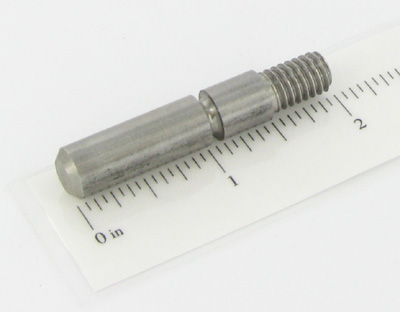

33 426401 View Image Jaw Pivot Pin 4.0 EA 4.41

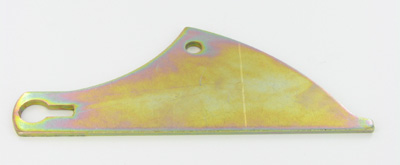

34 431601 View Image Lock Cam 2.0 EA 48.52

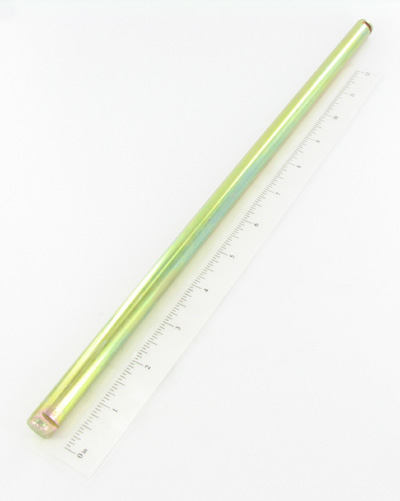

35 431401 View Image 13-11/16" Lock Cam Shaft 1.0 EA 26.88
36 433501 View Image PB 14 Spring Post 2.0 EA 7.88
37 8163118 View Image Small McElroy Branding Label 2.0 EA 5.18
38 MAB00193 3/8-16NCX1-3/8LG Hhcs GR8 2.0 EA 1.43
Part Number 430101 Supplemental Kits

Item
Item
Price
426201 14 Facer Housing Gauge Tool Assembly
 		1,337.00
A426401 14BM Jaw Pivot Pin Kit
 		25.99
A430103 PitBull 14 Upper Jaw Assembly
 		303.00
A430104 PitBull 14 Lower Movable Jaw Assembly
 		787.00
A430105 PitBull 14 Upper/Lower Fixed Jaw Assembly
 		1,090.00
A430106 PitBull 14 Upper/Lower Movable Jaw Assembly
 		1,323.00
A430107 PitBull 14 Eyebolt Kit
 		61.55
A430109 PitBull 14 Lock Cam Kit
 		186.00
A430110 PitBull 14 Lower Fixed Jaw Assembly
 		478.00
Part Number 430101 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
433901 #2LC & PitBull 14 Fusion Machine Operator's Manual
 		78.80
433902 #2LC & PitBull 14 Fusion Machine Spanish Operator's Manual
 		0.00
433903 #2LC & PitBull 14 Fusion Machine Portuguese Operator's Manual
0.00
433904 #2LC & PitBull 14 Fusion Machine Russian Operator's Manual
 		0.00
816336101 Prop 65 Warning Label Instruction Sheet for Pit Bull 14 & 26
 		0.00
Part Number 430101 Suggested Accessories

Item
Description
Price
A425801 PitBull 14/26 Jaw Bushing Replacement Kit
 		1,458.00
