SmartFab 200-240V, 50/60Hz, 1 Ph Heater Control Box Assembly
Item Number: 461402
Price: $1,094.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
SmartFab 200-240V, 50/60Hz, 1 Ph Heater Control Box Assembly


Part Number 461402 Component List
  Item Component Description Quantity Unit
Price
1 816382 View Image Temperature Scale Label 1.0 EA 7.33

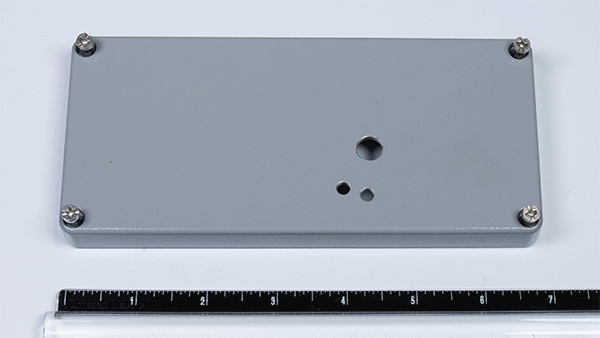

2 463001 View Image Heater Control Box Mod 1.0 EA 251.00
3 462901 Mounting Plate Mod 1.0 EA 0.00
4 902101 Heater Control Board Standoff 2.0 EA 0.00
5 902201 Heater Control Board Spacer 1.0 EA 0.00
6 902301 Htr Control Board Clamp Washer 2.0 EA 0.00
7 902401 Light Tube 2.0 EA 33.91
8 902501 Light Tube Plate 1.0 EA 0.00
9 T5030001 View Image Heater Control Pcb Assy 1.0 EA 156.00
10 MAE00122 #4-40NCX1/4LG Bhscs SS (Effective to 10/4/16) 1.0 EA 0.10
10 MAQ00022 #4-40NCX1/4LG Phpms Nylon 1.0 EA 0.00
11 MAJ00010 #4-40NCX3/4LG Rhpms SS 2.0 EA 0.00
12 MBA00001 #4-40NC Hex Nut Stl PL 2.0 EA 0.05
13 MJJ00023 View Image Control Knob 1.0 EA 5.24
14 MLK00020 View Image 1/2 X 90DEG Strain Relief Conn (Effective to 12/27/15) 1.0 EA 47.58
14 MLK00021 1/2 X 90DEG Strain Relief Conn 1.0 EA 0.00
15 718501 Replaced by A718502 (Effective to 8/8/17) 1.0 EA 0.00
15 718502 View Image 16A, 250V Power Cord Assembly with CEE 7/7 Plug 1.0 EA 126.00
16 MLK00064 View Image Strain Relief Connector 1.0 EA 9.77
17 T5030002 View Image Potentiometer Assy 1.0 EA 15.05
18 MLL00046 #16 Mtw/tew Wire, Green 0.5 FT 0.00
19 MLM00133 14-16 X #10 Ring Terminal 1.0 EA 0.55
20 MQF00395 5 Pos Lever-nut Terminal Block 1.0 EA 2.88
21 410906 View Image Dng Not Expln Proof Tag Label (Effective to 8/8/17) 1.0 EA 4.20
22 MLJ00004 View Image 1/2 Seal Ring 1.0 EA 5.24
23 MLN00100 View Image 1/2" Conduit Lock Nut 1.0 EA 1.03
24 MBA00067 View Image 3/8-32NEF X 0.22 X 1/4 Sealnut 1.0 EA 6.22
25 8163305 Model 461302 Part NO Label 1.0 EA 0.00
