MegaMc Polyhorse Track Assembly
Item Number: 4838401
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
MegaMc Polyhorse Track Assembly


Part Number 4838401 Component List
  Item Component Description Quantity Unit
Price
1 4838501 Pipe Stand Track Wld 1.0 EA 0.00
2 T1200602 (assembly) View Image Idler Roller Assembly 6.0 EA 273.00
3 T1200603 (assembly) View Image Take Up Roller Assembly 2.0 EA 691.00

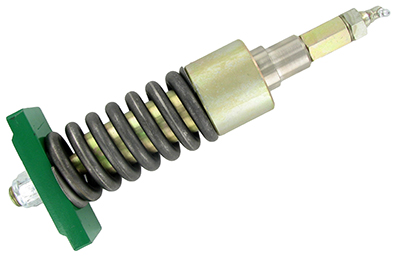

4 T1200604 (assembly) View Image Take Up Cylinder Assembly 2.0 EA 416.00

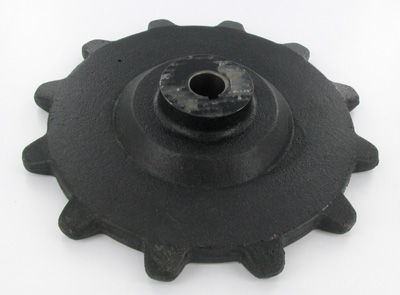

5 T1207002 View Image Drive Sprocket 2.0 EA 154.00

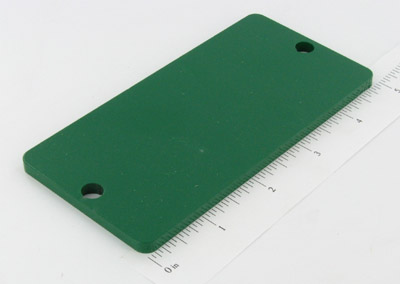

6 T1207101 View Image Access Plate 2.0 EA 54.96

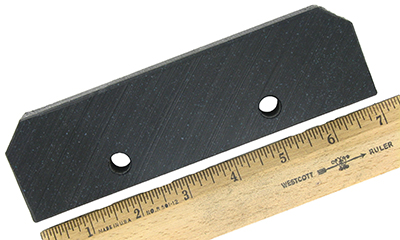

7 T1207901 View Image Return Guide 2.0 EA 40.18
8 MAB00066 View Image 3/8-16NCX1-1/2LG Hhcs 4.0 EA 0.66

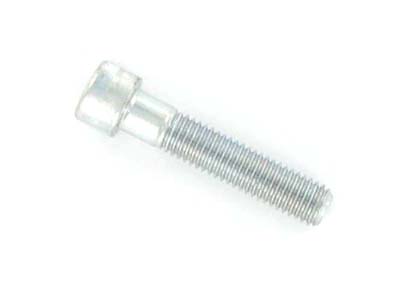

9 MAC00145 View Image 1/2-13NCX2-1/2LG Shcs PL 8.0 EA 2.93
10 MAL00007 View Image 1/4-20NCX3/4LG Hwh TF Screw 4.0 EA 0.49
11 MBA00007 View Image 3/8-16NC Fnsh Hex Nut Stl PL 4.0 EA 0.29
12 MBA00009 View Image 1/2-13NC Fnsh Hex Nut Stl PL 8.0 EA 0.46
13 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 8.0 EA 0.18
14 MBF00007 View Image 3/8 TY 'a' Wide FL Wshr Stl PL 4.0 EA 0.11
15 MCH00002 View Image 1/8DIAX1-1/2LG Cotter Pin 2.0 EA 0.12

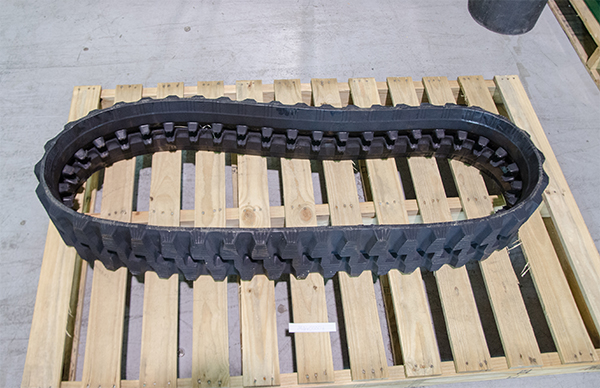

16 MDV00006 View Image 230X72X42 Rubber Track 2.0 EA 1,440.00
17 MAB00038 View Image 5/16-18NCX2-1/4LG Hhcs 2.0 EA 0.69
18 MBA00006 View Image 5/16-18NC Fnsh Hex Nut Stl PL 2.0 EA 0.33
19 MBE00006 View Image 5/16 Reg Splt Lck Wshr Stl PL 2.0 EA 0.11
20 MBF00006 View Image 5/16TY 'a' Wide FL Wshr Stl PL 4.0 EA 0.11
21 MEJ00052 Flow Divider Cartridge 1.0 EA 0.00
22 MEL00029 3PORT Flow Divider Manifold 1.0 EA 0.00

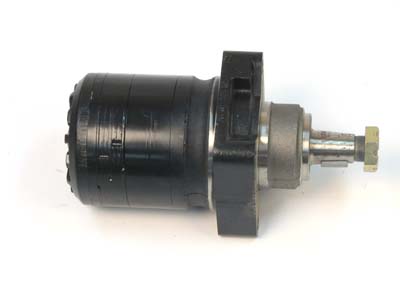

23 MEC00023 View Image 1-1/4TSHT,CNUT,22.2CID Hyd Mtr 2.0 EA 1,193.00
24 MFQ00019 8MSL/10MSAE Elbow 45 4.0 EA 0.00
