MegaMc Polyhorse Lowering Arm Assembly
Item Number: 4838901
Price: $5,021.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
MegaMc Polyhorse Lowering Arm Assembly


Part Number 4838901 Component List
  Item Component Description Quantity Unit
Price
1 4838701 Clevis Pin Mod 1.0 EA 184.00
2 4840101 Lowering Arm Stanchion Wld 1.0 EA 1,987.00
3 4840201 Lowering Arm Wld 1.0 EA 0.00

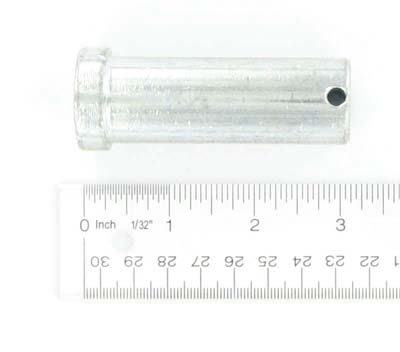

4 MCF00023 View Image 1DIAX2-5/16 Grip Clv Pin PL 1.0 EA 13.87
5 MCF00052 1DIAX5-45/64 Grip Clv Pin PL 1.0 EA 25.72
6 MCH00003 View Image 3/16DIAX1-1/2LG Cotter Pin 3.0 EA 0.15
7 MEB00166 2B X 16S X 1-1/8R Hyd Cyl 1.0 EA 2,855.00
9 MFH00073 3/8FNPT Quick Disc Coupler 1.0 EA 177.00
10 MFH00074 3/8FNPT Quick Disc Nipple 1.0 EA 134.00
11 MFJ00002 View Image 1/8NPT Grease Zerk 1.0 EA 1.18

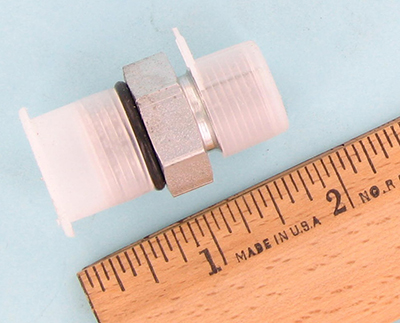

12 MFC00066 View Image 8MSAE/6MPT Adapter 2.0 EA 0.00
13 MDL00242 View Image 1/4" Edge Trim 0.75 FT 2.28
14 MFH00081 Rubber Dust Plug for MFH00073 1.0 EA 0.00
15 MFH00082 Rubber Dust Cap for MFH00074 1.0 EA 0.00
