2065 Heater Pivot Arm & Junction Box Assembly
Item Number: 6300801
Price: $7,421.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
2065 Heater Pivot Arm & Junction Box Assembly


Part Number 6300801 Component List
  Item Component Description Quantity Unit
Price
1 6302505 63 Htr Pivot Arm 1.0 EA 5,920.00

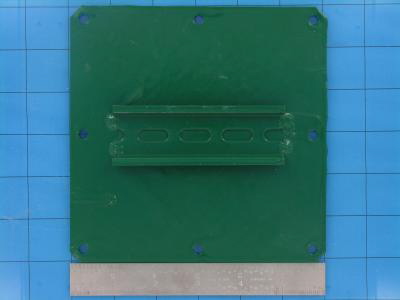

2 3608005 View Image Htr Pivot Arm Cover W/rail 1.0 EA 68.95

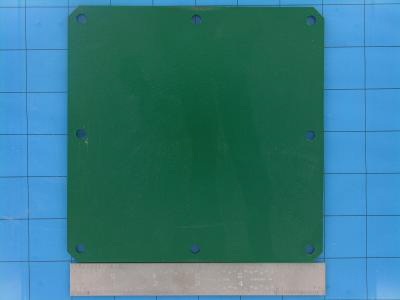

3 3608006 View Image Pivot Arm&junction Box Cover 1.0 EA 30.00

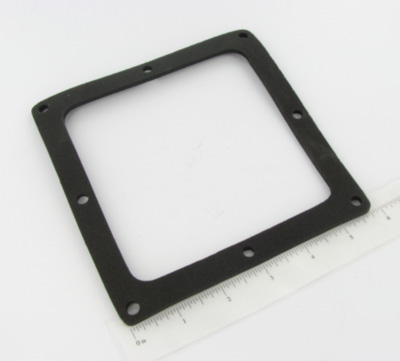

4 3608007 View Image Pivot Arm&junction Box Gasket 2.0 EA 3.28

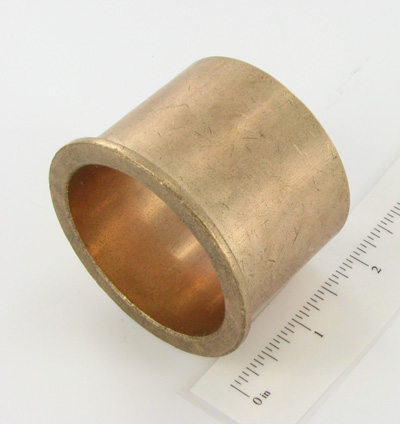

5 4807704 View Image Fcr Pivot Arm Bushing Mod 2.0 EA 110.00
6 MLK00098 1-1/4 Strain Relief Connector (Effective 2/18/09 to 10/19/15) 1.0 EA 98.44
7 MLJ00011 View Image 3/4 X Str Conduit Connector 1.0 EA 21.25
8 MLK00015 View Image 1/2 Strain Relief Connector 1.0 EA 24.07
9 MAH00111 View Image #10-24NCX1/2LG Hwh TF Screw SS 16.0 EA 0.50
10 MAB00007 View Image 1/4-20NCX1-3/4LG Hhcs 1.0 EA 0.46
11 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 1.0 EA 0.10
12 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL 1.0 EA 0.32

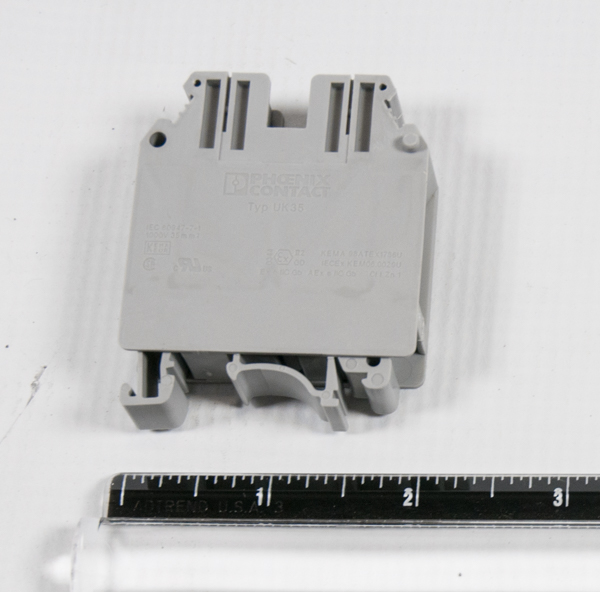

13 MLM00050 View Image 150A Terminal Block 3.0 EA 44.57

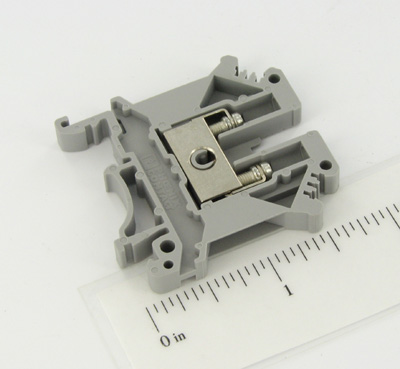

14 MLM00051 View Image 30A Terminal Block 2.0 EA 9.19
15 MLM00055 View Image End Cover 1.0 EA 4.29
16 MLM00056 View Image End Clamp 2.0 EA 5.96
17 MLU00039 ZB6 Marker, Unprinted 0.4 EA 3.82
18 MLU00040 ZB10 Marker, Unprinted 0.6 EA 6.32
19 MLN00160 4-1/0AWG X 3/8 Ground Lug 1.0 EA 29.22
