Printable Pdf Document Printable Version
Replaced by 6501302
 48" Butt Plate Heater Assembly
Item Number: 6301101
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
48" Butt Plate Heater Assembly


48" Butt Plate Heater Assembly


Part Number 6301101 Component List
  Item Component Description Quantity Unit
Price
1 2410602 View Image Term Enclosure Cover Gasket 1.0 EA 45.32
2 2410603 View Image Terminal Enclosure Gasket 4.0 EA 26.24
3 3602005 View Image Heat Sink Plate 1.0 EA 213.00
4 3603103 View Image Htr Terminal Enclosure Cover 1.0 EA 141.00
5 4807501 View Image Roller 1.0 EA 220.00
6 4815802 View Image Htr Gasket 2.0 EA 18.09
7 4816301 View Image Htr Roller Housing Pin (Effective 3/23/92 to 3/27/17) 1.0 EA 59.60
7 RZN0400165 0.750 C.f., Ann. 303 SS Rnd 1.0 EA 0.00

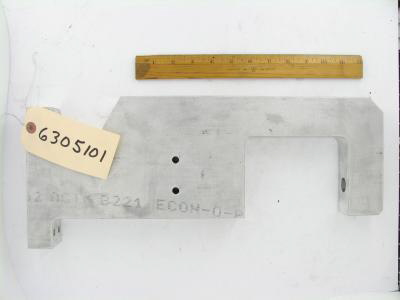

8 6305101 View Image 48 Htr Roller Housing 1.0 EA 2,657.00
9 6308601 View Image 65 Htr Terminal Enclosure Mod 1.0 EA 1,546.00
10 6311804 Repl by A6311804 OR A6311821 1.0 EA 0.00
11 6311805 48 Butt Plate 2.0 EA 6,662.00
12 6311809 48 Htr&pivot Arm Splice Plate 2.0 EA 1,782.00
14 MAH00085 View Image 5/16-18NCX2LG Hhcs SS 4.0 EA 1.02
15 MAH00081 View Image #10-32NFX1/2LG Shcs SS 12.0 EA 0.49
16 MAH00082 View Image 3/8-16NCX2LG Shcs SS 2.0 EA 3.00
18 MAH00142 View Image 5/16-18NCX1LG Fhscs SS 32.0 EA 0.94
22 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 2.0 EA 0.12
23 MBE00006 View Image 5/16 Reg Splt Lck Wshr Stl PL 4.0 EA 0.11
24 MBF00007 View Image 3/8 TY 'a' Wide FL Wshr Stl PL 2.0 EA 0.11
26 MFA00039 12MPT Plug 1.0 EA 13.24
28 MJK00002 View Image 2.5LG,150-650DEG F Thermometer 1.0 EA 48.72
32 MJQ00287 View Image 1/16X5X13-1/4 Gasket 1.0 EA 16.65
33 MKI00002 View Image 3X3/16 316SS 100OHM Plat Rtd 1.0 EA 139.00
35 MBA00061 View Image 1/4-20NC Fnsh Hex Nut 18-8 SS 3.0 EA 0.46
36 MBE00023 View Image 1/4 Reg Splt Lck Washer SS 3.0 EA 0.11
37 MLI00002 View Image 3/4 Flex Conduit 3.5 FT 6.93
38 MLJ00011 View Image 3/4 X Str Conduit Connector 1.0 EA 21.25
39 MLL00004 View Image #18 Type Tggt Elec Wire 13.0 FT 2.60
40 MLL00043 View Image #8 Type Tggt Elec Wire 24.0 FT 9.69
41 MLM00012 View Image 14-16 Hi-temp Butt Splice 2.0 EA 0.42
42 MLM00117 View Image 8 X #10 Hi-temp Ring Terminal 19.0 EA 9.94
43 MLM00125 View Image 8 X 1/4 Hi-temp Ring Terminal 9.0 EA 5.10
44 MLN00219 Fiberglass Tape (per Ft) 1.0 FT 0.56
45 MAH00050 View Image 1/4-20NCX1/2LG Shcs SS 3.0 EA 0.52
46 MBA00004 View Image #10-24NC Hex Nut Stl PL 12.0 EA 0.35
47 6320001 View Image Htr Splice Plate Nut 5.0 EA 180.00
48 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 5.0 EA 0.18
49 MAE00120 View Image 1/2-13NCX1-1/4LG Bhscs PL 5.0 EA 3.22
