Operator Platform Latch Assembly
Item Number: 6309801
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Operator Platform Latch Assembly


Part Number 6309801 Component List
  Item Component Description Quantity Unit
Price
1 SW02102 View Image Extension Spring 1.0 EA 6.89

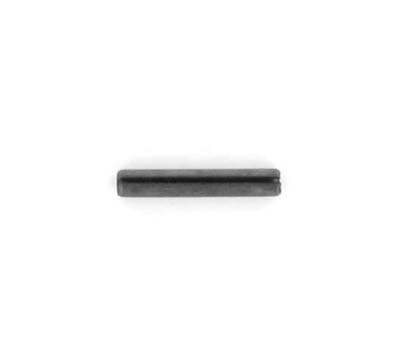

2 MCG00008 View Image 1/4DIAX1LG Roll Pin 1.0 EA 0.36

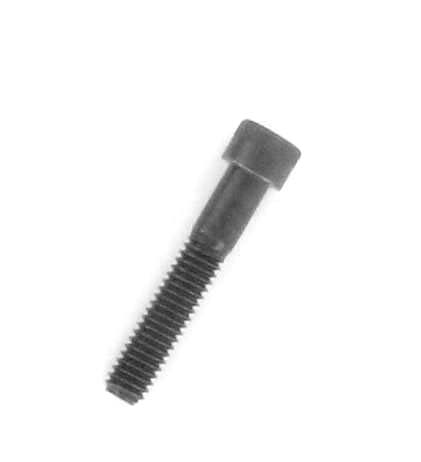

3 MAC00078 View Image 5/16-18NCX1-3/4LG Shcs PL 2.0 EA 2.09
4 MBA00006 View Image 5/16-18NC Fnsh Hex Nut Stl PL 2.0 EA 0.33
5 MCG00011 View Image 1/4DIAX1-1/2LG Spring Pin Z PL 1.0 EA 0.54
6 6309802 Operator Platform Latch 1.0 EA 0.00
7 6309803 Operator Platform Latch Angle 2.0 EA 0.00
8 6309805 Operator Platform Latch Spacer 1.0 EA 0.00
