2065 220-240V, 50/60Hz, 3Ph Electrical Power Assembly
Item Number: 6318002
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
2065 220-240V, 50/60Hz, 3Ph Electrical Power Assembly


Part Number 6318002 Component List
  Item Component Description Quantity Unit
Price
M1 MDB00060 10HP Induction Motor 1.0 EA 3,393.00
1 MLA00091 Elec Box 1.0 EA 0.00
2 MLI00002 View Image 3/4 Flex Conduit 15.0 FT 6.93
3 MLI00007 1-1/4 Flex Conduit 3.0 FT 0.00
4 MLI00009 1-1/4 Rigid Conduit 6.25 FT 0.00
5 MLJ00004 View Image 1/2 Seal Ring 1.0 EA 5.24
6 MLJ00005 View Image 3/4 Seal Ring 1.0 EA 5.67
7 MLJ00008 View Image 1-1/4" Conduit Hanger 5.0 EA 2.84
8 MLJ00009 View Image 3/4 X 90DEG Conduit Connector 1.0 EA 11.90
9 MLJ00010 View Image 3/4 X 45DEG Conduit Connector 1.0 EA 44.10
10 MLJ00035 View Image 1 X 3/4 Thd Conduit Reducer 1.0 EA 8.55
11 MLJ00058 View Image 1-1/4 Seal Ring 3.0 EA 18.84
12 MLK00015 View Image 1/2 Strain Relief Connector 1.0 EA 24.07
13 MLK00025 1-1/4 LB Gasket 3.0 EA 0.00
14 MLK00026 1-1/4 LB Cover 3.0 EA 0.00
15 MLK00027 1-1/4 LB Condulet 3.0 EA 0.00
16 MLK00029 1-1/4 X 90DEG Sealtite Conn 2.0 EA 0.00
17 MLK00030 View Image 2" Strain Relief Conn 1.0 EA 185.00
18 MLL00005 #8THHN-19 Elec Wire,black 30.0 FT 2.00
19 MLL00118 #2/4 Type "w" Cable 10.0 FT 29.85

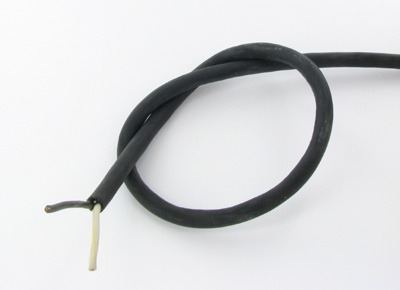

20 MLL00008 View Image #16/2 Type "soow" Cable 30.0 FT 1.60
21 MLL00012 #18/2 Shielded Cable 20.0 FT 0.00
22 MLL00030 #3 Thhn Elec Wire,black 60.0 FT 0.00
23 4833601 200 Amp Power Cable Assy 1.0 EA 7,656.00
24 MLM00032 View Image Blue Wire Nut 4.0 EA 0.00
25 MLM00116 1-2 X 5/16 Ring Terminal 4.0 EA 0.00
26 MLM00118 3-4 X 5/16 Ring Terminal 4.0 EA 0.00

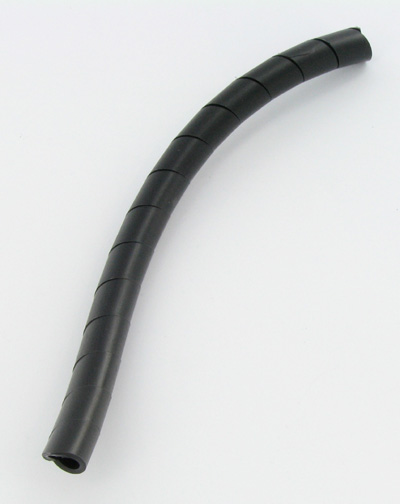

27 MLN00059 View Image 1" Spiral Wrap 40.0 FT 0.00
28 MLN00070 View Image 3/4" Rmc Conduit Clamp 3.0 EA 2.28
29 MLK00092 1-1/4 Strain Relief Connector 1.0 EA 0.00

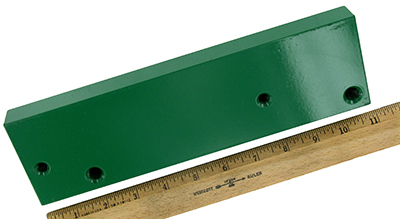

30 4830001 View Image Motor Mount Adapter Plate 2.0 EA 0.00
31 MAB00066 View Image 3/8-16NCX1-1/2LG Hhcs 4.0 EA 0.66
32 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 4.0 EA 0.12
33 MAB00104 View Image 1/2-13NCX1-3/4LG Hhcs 4.0 EA 1.42
34 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 4.0 EA 0.18
35 6318005 (assembly) 2065 220-240V, 50/60Hz, 3Ph Control Box Assembly 1.0 EA 10,817.00
36 MLJ00077 View Image 2" Sealing Ring 1.0 EA 19.21
37 MLN00437 View Image 2" Elec Lock Nut 1.0 EA 3.81
38 MLJ00046 1-1/4 Chase Nipple 1.0 EA 0.00
39 MLK00098 1-1/4 Strain Relief Connector 1.0 EA 98.44
40 829201 View Image Danger High Voltage Label 1.0 EA 5.02
41 MLMP0812222 Junction Block Stud Red 5/16" 4.0 EA 9.54
42 MAH00174 #10-24NCX3/4LG Phpms 8.0 EA 0.12
43 MBC00004 View Image #10-24NC Mach Scr Nyl Lck Nut 8.0 EA 0.31
44 MLN00175 1/4 X 1/2OD Seal Washer 8.0 EA 0.39
45 MLN00511 1-2/0 Red Alternator Boot 6.0 EA 4.56
46 MLL00120 #4 Thhn Wire, Green 20.0 FT 0.00
Part Number 6318002 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
6318004 65 220-240,50/60,3 elec schem
0.00
