1600mm 415V Motor & Pump Assembly
Item Number: 6500402
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
1600mm 415V Motor & Pump Assembly


1600mm 415V Motor & Pump Assembly


Part Number 6500402 Component List
  Item Component Description Quantity Unit
Price
1 MAB00081 1/2-13NCX1-1/4LG Hhcs 2.0 EA 1.43
2 MAB00064 View Image 3/8-16NCX1LG Hhcs 2.0 EA 0.51
3 MAB00101 7/16-14NCX3-3/4LG Hhcs 2.0 EA 1.22
4 MAB00184 7/16-14NCX4-1/4LG Hhcs 2.0 EA 0.00
5 MAG00043 #10-24NCX1/4LG Skt Set Scr (Effective to 3/1/22) 1.0 EA 0.79
6 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 2.0 EA 0.12
7 MBE00008 View Image 7/16 Reg Splt Lck Wshr Stl PL 4.0 EA 0.12
8 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 6.0 EA 0.18
9 MDJ00028 1-7/8BX1/2" Key Coupling Half 1.0 EA 0.00
10 MDJ00029 7/8B X 1/4" Key Coupling Half 1.0 EA 130.00
11 MDJ00067 Urethane Coupling Insert 1.0 EA 337.00
12 MDB00126 20HP, 380V, 50HZ Motor 1.0 EA 0.00

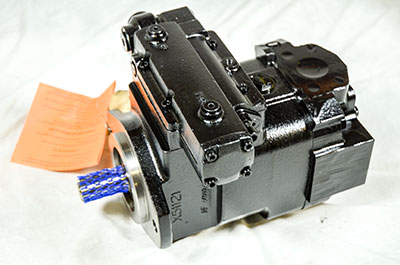

13 MEA00060 View Image Piston Pump (Effective to 8/20/20) 1.0 EA 5,242.00
13 6529501 (assembly) Pump Modification 1.0 EA 3,827.00
14 MEA00084 Pump Motor Adapter 1.0 EA 439.00
15 MEA00085 Tandem Pump Adptr for MEA00060 1.0 EA 728.00
16 MEA00086 Gear Pump 1.0 EA 1,073.00
17 MEJ00045 Flange Mount Check Valve (Effective to 5/23/19) 1.0 EA 0.00
17 MEJ00063 Flange Mount Check Valve 1.0 EA 845.00
18 MAN00017 View Image 1/2-13NCX1-1/4LG Shcs SS 4.0 EA 2.05
