Printable Pdf Document Printable Version
1600mm 4 Jaw 415V Rolling Vehicle Assembly
Item Number: 6500802
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
1600mm 4 Jaw 415V Rolling Vehicle Assembly


1600mm 4 Jaw 415V Rolling Vehicle Assembly


1600mm 4 Jaw 415V Rolling Vehicle Assembly


1600mm 4 Jaw 415V Rolling Vehicle Assembly


1600mm 4 Jaw 415V Rolling Vehicle Assembly


Part Number 6500802 Component List
  Item Component Description Quantity Unit
Price
1 816342 View Image Safety Instr Manual Label 1.0 EA 3.16
2 8163106 View Image Hyd Oil Specification Label 1.0 EA 10.69

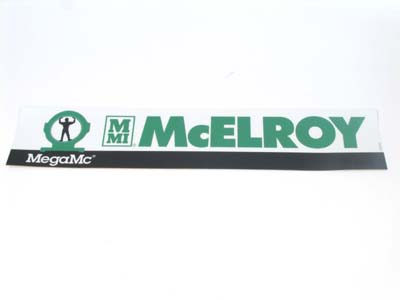

3 8163122 View Image Megamc McElroy Label 1.0 EA 83.94
4 8163165 1600 Label 1.0 EA 35.44
5 3611302 Elec Cable Mtg Bracket Wld 1.0 EA 582.00
6 4808101 Fwd Rvs Cylinder Mtg Bracket (Effective to 12/15/11) 1.0 EA 2,030.00
7 4808401 View Image Hitch Pin (Effective to 12/15/11) 1.0 EA 246.00
8 4806501 Oil Cooler Bracket 1.0 EA 411.00
9 4823801 Tow Bar Weldment (Effective to 12/15/11) 1.0 EA 1,397.00
10 6302701 Pipe Lift Weldment 2.0 EA 8,272.00

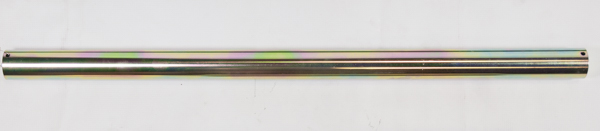

11 6303901 View Image Pipe Lift Roller Pivot Shaft 4.0 EA 516.00
12 6304001 Pipe Lift Roller Assy 2.0 EA 8,008.00

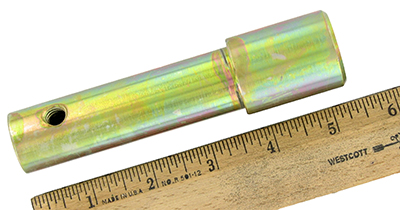

13 6307301 Pipe Lift Cylinder Clevis Pin 8.0 EA 534.00
14 6308401 Pipe Rlr Pipelift Arm Tread PL 2.0 EA 1,640.00
15 6314501 Tool Box Mod 1.0 EA 788.00
16 6500402 (assembly) 1600mm 415V Motor & Pump Assembly 1.0 EA 0.00
17 6500502 (assembly) 1600mm 4 Jaw Front Axle Assembly 1.0 EA 0.00
18 6501001 (assembly) 1600mm Fixed Manifold Assembly (Effective to 11/8/12) 1.0 EA 0.00
18 6501002 (assembly) 1600mm Fixed Manifold Assembly 1.0 EA 0.00
19 6501201 30 Gallon Reservoir Wld 1.0 EA 2,802.00
20 6504301 Chassis 1.0 EA 0.00
21 6504701 Front Outrigger 1.0 EA 0.00
22 6504704 Rear Outrigger 1.0 EA 0.00
23 6504801 Foot Wld 4.0 EA 1,838.00

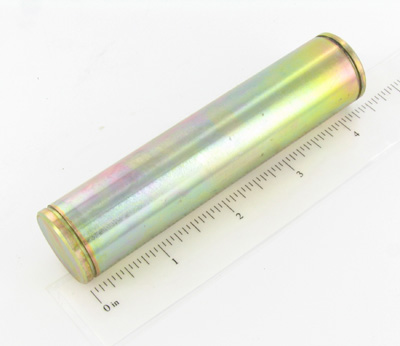

24 6505001 View Image Outrigger Retainer Pin 2.0 EA 303.00
25 6505002 View Image Outrigger Retainer Bushing 2.0 EA 282.00
26 6505301 Towing Pin 1.0 EA 1,031.00
27 6505501 Front Axle Pin 1.0 EA 632.00
28 6505701 Roller Mounting Plate 4.0 EA 95.47
29 6505801 Outrigger Roller 2.0 EA 362.00
30 6505901 Outrigger Roller Shaft 2.0 EA 425.00
31 6509101 (assembly) Wheel Tire Tube & Valve Assembly 2.0 EA 3,256.00
32 6510901 Manifold Cover 1.0 EA 0.00

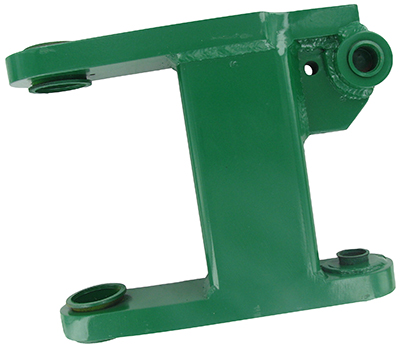

33 6511901 View Image Tow Link Pivot Wld 1.0 EA 1,905.00

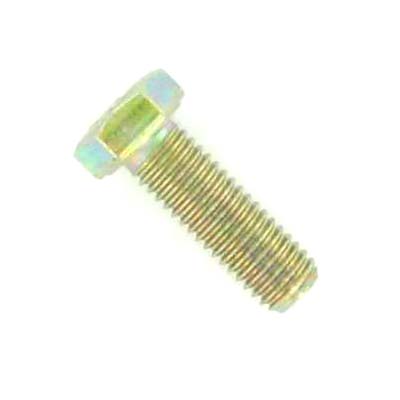

34 MAB00002 View Image 1/4-20NCX1/2LG Hhcs 12.0 EA 0.18
35 MAB00003 View Image 1/4-20NCX3/4LG Hhcs 10.0 EA 0.31
36 MAB00034 View Image 5/16-18NCX1-1/4LG Hhcs 2.0 EA 0.46
37 MAB00045 5/16-18NCX4LG Hhcs 4.0 EA 1.03
38 MAB00065 View Image 3/8-16NCX1-1/4LG Hhcs 8.0 EA 0.52

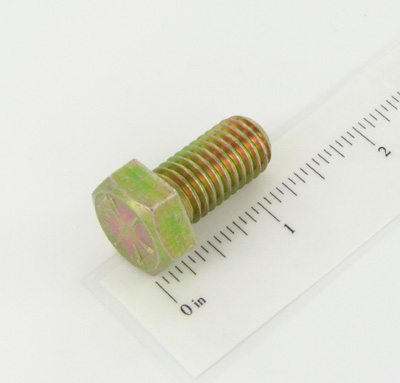

39 MAB00080 View Image 1/2-13NCX1LG Hhcs GR8 8.0 EA 1.58
40 MAB00082 View Image 1/2-13NCX1-1/2LG Hhcs GR8 (Effective to 12/15/11) 4.0 EA 1.37
41 MAB00104 View Image 1/2-13NCX1-3/4LG Hhcs 32.0 EA 1.42
42 MAB00186 7/16-14NCX3/4LG Hhcs 4.0 EA 0.00
43 MAG00010 1/4-20 X 3/8 Soc Set-cup PT 2.0 EA 0.49
44 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL 6.0 EA 0.32
45 MBA00006 View Image 5/16-18NC Fnsh Hex Nut Stl PL 2.0 EA 0.33
46 MBA00007 View Image 3/8-16NC Fnsh Hex Nut Stl PL 8.0 EA 0.29
47 MBA00009 View Image 1/2-13NC Fnsh Hex Nut Stl PL 32.0 EA 0.46
48 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 24.0 EA 0.10

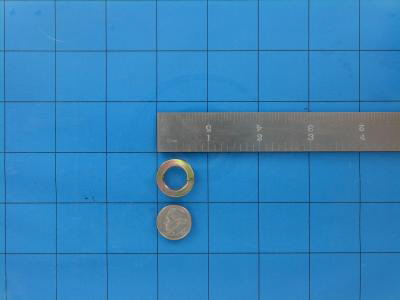

49 MBE00006 View Image 5/16 Reg Splt Lck Wshr Stl PL 2.0 EA 0.11
50 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 8.0 EA 0.12
51 MBE00008 View Image 7/16 Reg Splt Lck Wshr Stl PL 4.0 EA 0.12
52 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 40.0 EA 0.18
53 MBF00004 View Image #10 TY 'a' Wide FL Wshr Stl PL 4.0 EA 0.10
54 MBF00005 View Image 1/4 TY 'a' Wide FL Wshr Stl PL 16.0 EA 0.11
55 MBF00007 View Image 3/8 TY 'a' Wide FL Wshr Stl PL 12.0 EA 0.11
56 MBF00009 View Image 1/2 TY 'a' Wide FL Wshr Stl PL 36.0 EA 0.25
57 MCB00003 View Image Ext Snap Ring 2.0 EA 0.43
58 MCB00006 View Image Ext Snap Ring (Effective to 12/15/11) 2.0 EA 0.94

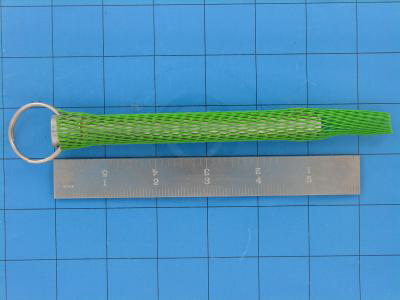

59 MCE00014 View Image 1/2DIAX4.25 Grip Detent Pin (Effective to 12/15/11) 1.0 EA 142.00
60 MCH00034 3/16DIAX2-1/4LG Cotter Pin 26.0 EA 0.46
61 MCK00003 3/16DIAX3/8GRIP Blind Rivet 4.0 EA 0.39
62 MCK00070 1/2DIA X 5-3/4 LG Hitch Pin 4.0 EA 55.73

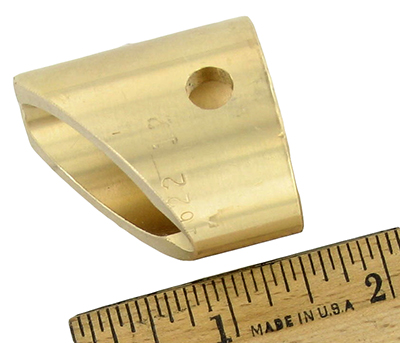

63 MDM00247 Flange Bushing 4.0 EA 7.88
64 MEB00127 5B X 10-1/4S X 2R Hyd Cyl 4.0 EA 2,669.00
65 MEB00154 4B X 9S X 3R Outrigger Cyl 4.0 EA 3,375.00
66 MEE00014 View Image 5" Sight Gauge W/thermometer 1.0 EA 77.03
67 MIB00014 Hub, Complete W/all Components 2.0 EA 418.00

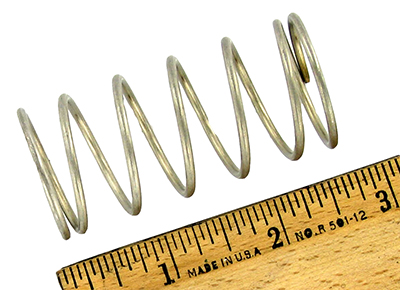

68 MJE00037 View Image Compression Spring 2.0 EA 54.79

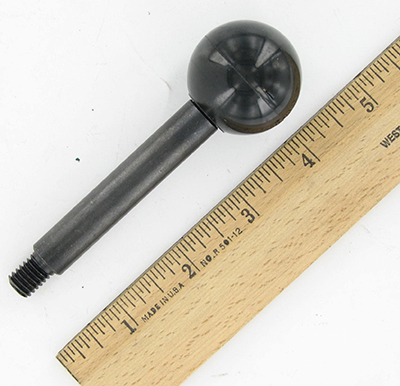

69 MJP00039 View Image Threaded Handle W/knob 2.0 EA 38.59
70 MJQ00260 Std 8-1/2X11 Literature Compt 1.0 EA 70.72
71 MJQ00393 View Image Oil Cooler 2.0 EA 562.00
72 MJQ00394 View Image Oil Cooler Mtg Kit W/o Strap 8.0 EA 57.10
73 MJQ00446 1-3/4" Bore Clamp Collar 1.0 EA 0.00
74 MLN00175 1/4 X 1/2OD Seal Washer 4.0 EA 0.39
75 6516601 (assembly) Tow Bar & Receiver Assembly (Effective 12/16/11 to 11/28/16) 1.0 EA 1,371.00
75 6516602 (assembly) Tow Bar & Receiver Assembly 1.0 EA 3,028.00
76 8163249 20 IN McElroy Branding Label 1.0 EA 45.90
77 MAB00018 1/4-20NCX5LG Hhcs 2.0 EA 1.56
78 MEF00307 2WAY NC Blocking Valve 1.0 EA 373.00
79 MJD00064 1/2 Chain Hook 2.0 EA 0.00
80 MJD00076 1/2 Connector Pin Set (Effective 7/7/16 to 7/31/22) 2.0 EA 0.00
81 MJQ00626 56 Links 1/2" Chain 2.0 EA 0.00
82 MJD00083 5/8" GR 100 Coupling Link (Effective 9/2/20 to 11/15/20) 2.0 EA 0.00
82 MJD00082 1/2" GR 100 Coupling Link 2.0 EA 0.00
83 MDL00322 3/16" Edge Trim 2.67 FT 0.00
Part Number 6500802 Suggested Replacements

Item
Description
Price
MEP00087 Channel gasket for 6501201
0.00
MEP00088 3/8 stat-o-seal steel washer
0.00
