1600mm Fixed Manifold Assembly
Item Number: 6501002
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
1600mm Fixed Manifold Assembly


1600mm Fixed Manifold Assembly


1600mm Fixed Manifold Assembly


1600mm Fixed Manifold Assembly


Part Number 6501002 Component List
  Item Component Description Quantity Unit
Price
1 MEF00182 4WAY Sol. Dir. Valve Less Coil 4.0 EA 397.00
2 MEF00183 08SIZE 24VDC Coil Deutsch Conn 4.0 EA 63.63
3 MEF00184 10SIZE 24VDC Coil Deutsch Conn 24.0 EA 82.52
4 MEF00193 3POS Solenoid OP Dir Cntrl Vlv 7.0 EA 416.00
5 MEF00194 2POS Solenoid OP Dir Cntrl Vlv 1.0 EA 225.00
6 MEF00195 3POS Pilot Opr Dir Cntrl Valve 2.0 EA 490.00
7 MEF00196 12SIZE 24VDC Coil Deutsch Conn 1.0 EA 231.00
8 MEF00197 2POS Solenoid OP Dir Cntrl Vlv 1.0 EA 614.00

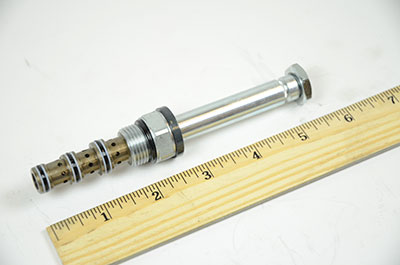

9 MEF00198 View Image 3POS Solenoid OP Dir Cntrl Vlv 2.0 EA 276.00
10 MEG00040 350 Psi Press Reducing Valve 1.0 EA 0.00
11 MEG00041 1800 Psi Press Reducing Valve 1.0 EA 0.00
12 MEH00020 2750 Psi Relief Valve 1.0 EA 0.00
13 MEJ00046 Piston for Check Valve 4.0 EA 0.00
14 MEJ00047 Check Valve 4.0 EA 0.00
15 MEJ00048 .053 Equiv Orifice Flow Cntrl 13.0 EA 97.25
16 MEJ00049 .025 Equiv Orifice Flow Cntrl 1.0 EA 0.00
17 MEJ00050 5.0GAL/MIN Press Comp FL Cntrl 1.0 EA 0.00
18 MEL00040 Megamc 1600 Fixd Manifold Body 1.0 EA 0.00
19 MEP00078 Same As/order MEF00212 1.0 EA 0.00
20 MFC00004 View Image 6MSAE Plug 6.0 EA 4.07
21 MFC00048 8MSAE Plug 21.0 EA 4.03
