1600mm 4 Jaw Inner Fixed Jaw Assembly
Item Number: 6501406
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
1600mm 4 Jaw Inner Fixed Jaw Assembly


Part Number 6501406 Component List
  Item Component Description Quantity Unit
Price
1 4803001 View Image Clamp Cylinder Pad 1.0 EA 263.00

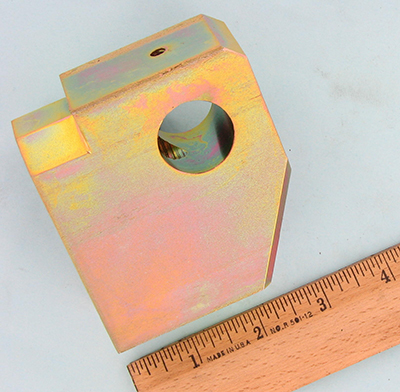

2 4803101 View Image Upper Jaw Adj Screw Block 1.0 EA 142.00
3 6302903 View Image Clamp Side Jaw Cap Wear Block 1.0 EA 239.00
4 6302904 View Image Clamp Side Jaw Cap Wear Block 1.0 EA 239.00
5 6303301 View Image Trunnion Block Assy 2.0 EA 1,807.00
6 6503701 Jaw Clamp Cylinder Stop 1.0 EA 138.00
7 6304702 Upper Jaw Pivot Pin 1.0 EA 328.00
8 6304703 Upper Jaw Pivot Pin Cap 2.0 EA 172.00

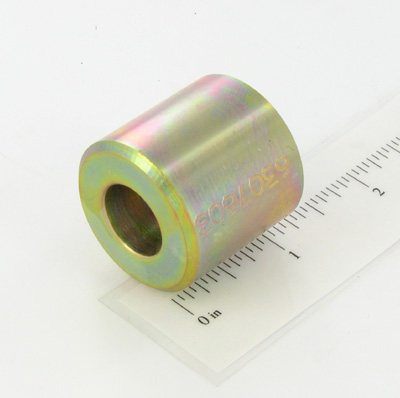

9 6307603 View Image Rest Button 1.0 EA 186.00
10 6307604 View Image Rest Button 2.0 EA 186.00
11 6310801 Clamp Adjustment Screw 1.0 EA 224.00
12 6311201 View Image Pivot Cylinder Eye 1.0 EA 470.00
13 6311401 View Image Jaw Pivot Cylinder Pivot Pin 1.0 EA 345.00
14 6501501 Lower Jaw 1.0 EA 25,500.00
15 6501601 Upper Jaw 1.0 EA 23,146.00
16 6502401 Pivot Side Fixed Jaw Cap 1.0 EA 0.00
17 6502501 Clamp Side Fixed Jaw Cap 1.0 EA 10,437.00
18 6504901 Hand Rail Wld 1.0 EA 1,664.00
19 MAB00066 View Image 3/8-16NCX1-1/2LG Hhcs 2.0 EA 0.66
20 MAB00068 View Image 3/8-16NCX2LG Hhcs (Effective to 6/28/16) 6.0 EA 0.56
20 MAB00076 View Image 3/8-16NCX2-1/4LG Hhcs GR8 6.0 EA 0.86
21 MAB00035 View Image 5/16-18NCX1-1/2LG Hhcs 2.0 EA 0.51
22 MAB00084 View Image 3/4-10NCX3LG Hhcs GR8 8.0 EA 5.27
23 MAB00114 1/2-13NCX5-1/2LG Hhcs (Effective to 12/10/12) 4.0 EA 0.00
23 MAB00203 1/2-13NCX6LG Hhcs 4.0 EA 3.12
24 MAC00095 View Image 3/8-16NCX1-1/4LG Shcs PL 3.0 EA 2.15
24 MAQ00004 3/8-16NCX1-1/4LG Shcs Nylon (Effective 3/12/13 to 6/13/19) 3.0 EA 2.05
25 MAN00073 5/16-18NCX1/2 Fhscs SS 4.0 EA 0.84
26 MAH00143 5/16-18NCX1-1/4LG Fhscs SS 4.0 EA 1.19
27 MAH00105 View Image #10-24NCX3/4LG Fhscs SS 16.0 EA 0.39
28 MAN00069 1/4-20NCX1LG Skt Set Scr SS 2.0 EA 1.26
29 MJN00003 View Image Ball Detent (Effective to 3/11/13) 1.0 EA 9.58
30 MBA00007 View Image 3/8-16NC Fnsh Hex Nut Stl PL 6.0 EA 0.29
31 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 8.0 EA 0.12
32 MBE00012 View Image 3/4 Reg Splt Lck Washer Stl PL 8.0 EA 0.54
33 MBF00007 View Image 3/8 TY 'a' Wide FL Wshr Stl PL 6.0 EA 0.11
34 MCE00020 View Image 3/4DIAX6.00 Grip Detent Pin 2.0 EA 248.00
35 MCK00046 3/4X3/4X9LG Key,sq Ends 2.0 EA 75.05
36 MDM00185 View Image Bushing 2.0 EA 15.80
37 MDM00229 View Image Bushing 2.0 EA 20.15
38 MEB00041 View Image 3-1/4BX7-11/16SX1-3/8R Hyd Cyl 1.0 EA 3,528.00
39 MEB00156 4B X 8S X 1-1/2R Clamp Cyl (Effective to 1/10/13) 1.0 EA 0.00
39 6512401 Clamp Cylinder Assembly 1.0 EA 3,923.00
40 6510601 Handle W/ Knob 1.0 EA 158.00
41 MNF00015 Diamond Locating Pin 2.0 EA 22.77
42 MAB00031 View Image 5/16-18NCX1/2LG Hhcs 1.0 EA 0.43
43 MAH00160 #8-32NCX1/2LG Fhscs SS 2.0 EA 1.03
44 MBE00006 View Image 5/16 Reg Splt Lck Wshr Stl PL 2.0 EA 0.11
45 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 4.0 EA 0.18
46 MFJ00002 View Image 1/8NPT Grease Zerk 1.0 EA 1.18
47 6310701 View Image Adjustment Screw Wear Pad 1.0 EA 154.00
48 6510501 Contact Pad 1.0 EA 16.63
49 4802901 View Image Clamp Cylinder Pivot Pin (Effective to 4/18/17) 1.0 EA 98.94
49 6519501 Clamp Cylinder Pivot Pin 1.0 EA 196.00
50 MJM00003 View Image 3/8-16NC Keensert 16.0 EA 12.00
51 6512301 View Image Rod Eye (Effective to 1/10/13) 1.0 EA 0.00
52 6519401 Clamp Side Jaw Cap Wear Block 1.0 EA 342.00
53 6519402 Clamp Side Jaw Cap Wear Block 1.0 EA 342.00
