Heater Stripper Cylinder Assembly
Item Number: 6506001
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Heater Stripper Cylinder Assembly


Part Number 6506001 Component List
  Item Component Description Quantity Unit
Price
1 802701 View Image HF Piston 1.0 EA 86.93
2 6506101 Heater Stripper Cylinder 1.0 EA 0.00
3 6506201 Heater Stripper Cyl Gland 1.0 EA 0.00
4 6506301 Heater Stripper Cyl Cap 1.0 EA 0.00
5 6506401 Heater Stripper Cyl Rod 1.0 EA 0.00
6 MCB00006 View Image Ext Snap Ring 2.0 EA 0.94

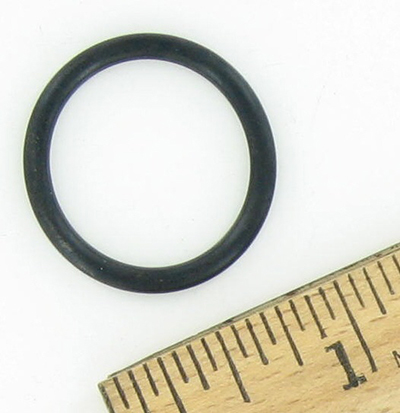

7 MDL00012 View Image O-ring 1.0 EA 2.02
8 MDL00021 View Image Back -up Ring 2.0 EA 2.86
9 MDL00028 View Image O-ring 1.0 EA 0.54

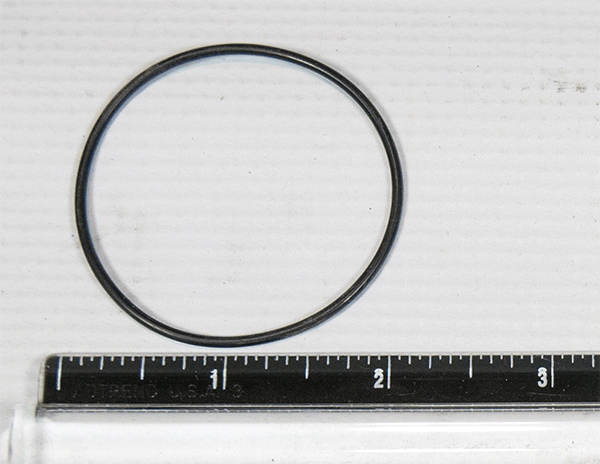

10 MDL00029 View Image O-ring 2.0 EA 1.10
11 MDL00030 View Image Seal 1.0 EA 3.37
12 MDL00031 View Image Washer 1.0 EA 4.91
13 MDL00032 View Image Wiper 1.0 EA 7.91
14 MFL00008 4MM Expansion Plug 1.0 EA 0.00
