1600mm Indexing Carriage Assembly
Item Number: 6511101
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
1600mm Indexing Carriage Assembly


Part Number 6511101 Component List
  Item Component Description Quantity Unit
Price
1 6300801 (assembly) 2065 Heater Pivot Arm & Junction Box Assembly 1.0 EA 7,421.00
2 6302004 Htr/fcr Indexing Carriage 1.0 EA 10,749.00
3 6302503 (assembly) 2065 Facer Pivot Arm Assembly 1.0 EA 6,429.00
4 6305201 Indexing Carriage Aft Mtg Bkt 1.0 EA 4,668.00
5 6305202 Indexing Carriage Fwd Mtg Bkt 1.0 EA 3,254.00
6 6306102 View Image Index Carriage Guide Rod 2.0 EA 2,201.00
7 6307201 Idx Carriage Mtg Stiffener PL 1.0 EA 1,267.00
8 6307401 View Image Trunnion Block Assy 4.0 EA 1,223.00
9 6307501 View Image Fcr Pivot Pin 1.0 EA 804.00
10 6307502 View Image Htr Pivot Pin 1.0 EA 587.00
11 6311301 View Image Rod Boot 4.0 EA 301.00
12 6311302 Replaced by 3605902 (Effective to 10/17/13) 8.0 EA 0.00
12 3605902 View Image Rod Boot Flange 8.0 EA 54.10
13 6311501 Fcr Pivot Cyl Clevis Spacer 1.0 EA 95.99
14 6503801 Htr&fcr IN Sensor Bracket 2.0 EA 45.20

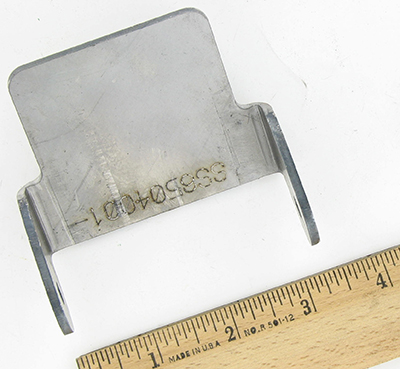

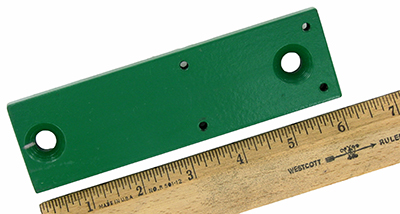

15 6503901 View Image Fcr Out/indxr Right Snsr Brkt 2.0 EA 127.00
16 6504001 View Image Proximity Sensor Target 1.0 EA 183.00
17 6507101 Htr Bag Frame Link Bracket 2.0 EA 356.00
18 MAB00003 View Image 1/4-20NCX3/4LG Hhcs 2.0 EA 0.31
19 MAB00037 View Image 5/16-18NCX2LG Hhcs 4.0 EA 0.58
20 MAB00077 View Image 3/8-16NCX1LG Hhcs GR8 4.0 EA 0.70
21 MAB00081 1/2-13NCX1-1/4LG Hhcs 10.0 EA 1.43
22 MAB00109 View Image 1/2-13NCX3LG Hhcs 2.0 EA 1.78
23 MAC00389 1/2-20NFX3-1/2LG Shcs PL 8.0 EA 8.43
24 MAG00050 View Image 1/4-20NCX1/2LG Skt Set Scr SS 2.0 EA 0.49
25 MAN00061 #6-32NCX3/8 LG Bhscs SS 32.0 EA 0.39
26 MAN00038 3/8-16NCX1LG Fhscs SS 4.0 EA 1.37
27 MAN00058 1/2-13NC X 2 LG Shcs SS 4.0 EA 2.94
27 MAN00059 View Image 1/2-13NC X 3-1/2 LG Shcs SS (Effective to 9/13/10) 4.0 EA 7.38
28 MBA00006 View Image 5/16-18NC Fnsh Hex Nut Stl PL 4.0 EA 0.33
29 MBA00009 View Image 1/2-13NC Fnsh Hex Nut Stl PL 2.0 EA 0.46
30 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 2.0 EA 0.10
31 MBE00006 View Image 5/16 Reg Splt Lck Wshr Stl PL 5.0 EA 0.11
32 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 12.0 EA 0.18
33 MBF00005 View Image 1/4 TY 'a' Wide FL Wshr Stl PL 2.0 EA 0.11
34 MBF00009 View Image 1/2 TY 'a' Wide FL Wshr Stl PL 2.0 EA 0.25
35 MBG00064 View Image 3/8 Spcl Flat Washer Stl PL 4.0 EA 7.80
36 MCA00002 View Image 3.000 Int Snap Ring 4.0 EA 8.31
37 MCB00012 View Image Ext Snap Ring 6.0 EA 1.87
38 MCI00012 View Image 3/8DIAX1-1/4LG Dowel Pin 4.0 EA 0.00
39 MDL00047 View Image 2.00 ID X 3.004 OD S-2000 Seal 4.0 EA 58.80
40 MDM00037 Linear Bushing 4.0 EA 296.00
41 MEK00012 View Image Rod Clevis W/pin Plated 2.0 EA 419.00

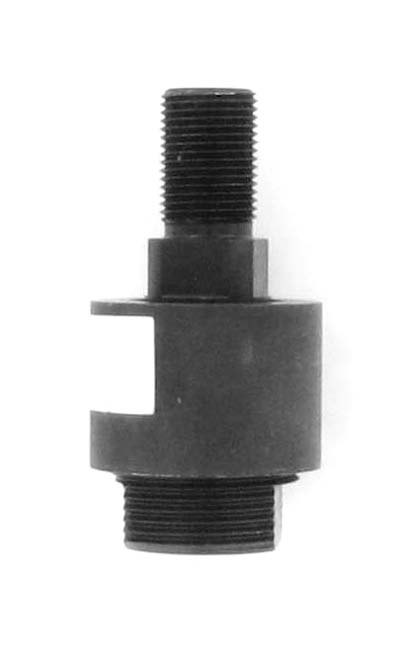

42 MEK00018 View Image Coupler /align 1.0 EA 210.00
43 MFJ00001 View Image 14-28NF Grease Zerk 2.0 EA 1.00
44 MFJ00002 View Image 1/8NPT Grease Zerk 2.0 EA 1.18
45 MEB00122 View Image 2B X 11-3/8S X1R Hyd Cyl 1.0 EA 1,687.00

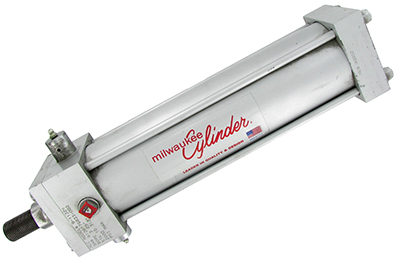

46 MEB00051 View Image 3-1/4BX10-5/16SX1-3/8R Hyd Cyl 1.0 EA 2,801.00

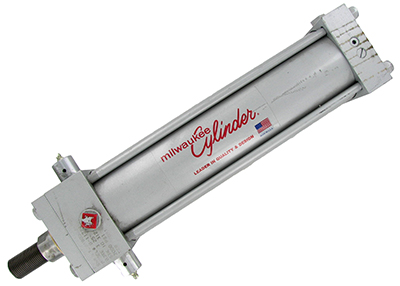

47 MEB00052 View Image 3-1/4BX10-5/16SX1-3/8R Hyd Cyl 1.0 EA 2,801.00
48 MAB00031 View Image 5/16-18NCX1/2LG Hhcs 1.0 EA 0.43
49 MAB00083 5/8-11NCX2-1/2LG Hhcs GR8 8.0 EA 3.23
50 MBE00011 View Image 5/8 Reg Splt Lck Washer Stl PL 8.0 EA 0.63
Part Number 6511101 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
816336106 Prop 65 Warning Label Instruction Sheet for MegaMc 824, 1236, 1648, 2065, 1600,
TracStar 630, 900 & 1200
 		0.00
