Acrobat 160mm Assembly
Acrobat 160mm Assembly
Photographs and drawings of products are for representational purposes only and may not represent actual product available.
Printable Pdf Document Printable Version
Acrobat 160mm Assembly
Item Number: 714501
Price: $11,183.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Acrobat 160mm Assembly


Part Number 714501 Component List
  Item Component Description Quantity Unit
Price
1 714701 (assembly) Acrobat 160mm 3 Jaw Assembly 1.0 EA 0.00
2 715103 Replaced by 715101 (Effective to 8/25/15) 1.0 EA 0.00
2 715101 Lower Fixed Jaw 1.0 EA 334.00
3 715305 Replaced by 715306 (Effective to 8/25/15) 1.0 EA 0.00
3 715306 Left Upper Jaw 1.0 EA 228.00
4 716001 Skid Weldment 1.0 EA 658.00
5 716004 View Image Attachment Block 2.0 EA 117.00
6 716201 Jaw Brace 2.0 EA 78.19
7 716301 View Image Slide Latch 2.0 EA 16.59
8 716401 View Image Jaw Link 1.0 EA 96.55
9 716501 Jaw Spacer (Effective to 10/23/19) 4.0 EA 0.00
10 A211501 View Image Short Clamp Knob Assembly 1.0 EA 89.51
11 MAB00134 View Image 1/4-20NCX5/8LG Hhcs 6.0 EA 0.29
12 MAN00046 View Image 1/4-20NCX5/8LG Bhscs SS (Effective to 10/23/19) 4.0 EA 0.49
13 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 6.0 EA 0.10
14 MBF00005 View Image 1/4 TY 'a' Wide FL Wshr Stl PL 6.0 EA 0.11
15 MCE00052 1/4DIA X 1.1 GL Detent Pin 2.0 EA 9.91
16 MCF00060 View Image 1-1/2 Cotterless Clevis Pin 2.0 EA 6.00
17 MCG00003 View Image 1/8DIAX1/2LG Roll Pin 4.0 EA 0.27
18 MCG00009 View Image 1/4DIAX1-1/8LG Roll Pin ZN PL 2.0 EA 0.73
19 MCK00015 View Image 3/8DIAX1LG Lock Pin Stl PL 1.0 EA 3.76
20 MJB00001 View Image 3/8-16NCX3LG Eye Bolt 1.0 EA 21.52
21 MJE00062 View Image 3/16 Dia Compression Spring 2.0 EA 9.30

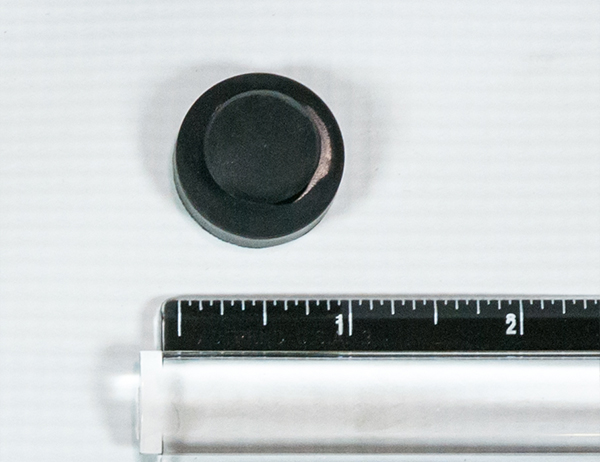

22 MJQ00516 View Image 1" Rubber Push IN Bumper (Effective to 2/12/20) 4.0 EA 2.26
22 MJQ00566 1" Bumper 10-24 Stud 4.0 EA 3.71
23 MAF00090 View Image 3/8DIAX3/8LG Skthdshldrscr SS 4.0 EA 23.57
24 MBC00004 View Image #10-24NC Mach Scr Nyl Lck Nut 4.0 EA 0.31
Part Number 714501 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
2501601 Acrobat 160mm, 180mm & 250mm Fusion Machine Operator's Manual
 		234.00
2501602 Acrobat 160mm, 180mm & 250mm Fusion Machine Spanish Operator's Manual
 		0.00
816336107 Prop 65 Warning Label Instruction Sheet for Acrobat 160, 180, 250 & 315
 		0.00
© 2016 McElroy Manufacturing, Inc. | All rights Reserved. Home · Products · Find a Distributor · McElroy University · Contact ·
