EP800AD (Acrobat) 120V HPU Cover & Electrical Box Assembly w/ Outlets
 120V, 50/60Hz, 1Ph
Item Number: 719805
Price: $4,600.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Acrobat 120V HPU Cover & Electrical Box Assembly w/ Outlets


Part Number 719805 Component List
  Item Component Description Quantity Unit
Price
1 718907 Cover W/outlets Assy 1.0 EA 563.00
2 719001 Electrical Box Support 1.0 EA 0.00
3 719102 Capacitor Holder 1.0 EA 0.00
4 719905 (assembly) Acrobat 120V HPU Electrical Box Assembly w/ Outlets (Effective to 9/8/22) 1.0 EA 2,720.00
4 07P0979239 (assembly) EP800AD (Acrobat) HPU 100-120V Electrical Box Assembly w/ Outlets 1.0 EA 0.00
5 720201 Obsolete & Repl by 07P0957652 (Effective to 5/2/22) 1.0 EA 0.00
5 07P0957652 Capacitor Assy 1.0 EA 204.00
6 721301 Press Relief Valve Cable (Effective to 5/28/19) 1.0 EA 0.00

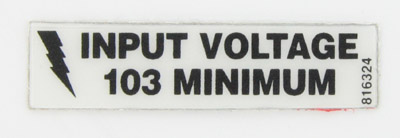

7 816324 View Image 103 Min Input Voltage Label 1.0 EA 5.36
8 8163328 Electrical Outlet Label 1.0 EA 17.54
9 829202 Danger High Voltage Label 1.0 EA 27.86
10 MAB00063 View Image 3/8-16NCX3/4LG Hhcs 2.0 EA 0.40
11 MAH00287 #8X3/4LG Sheet Metal Screw 8.0 EA 0.00
12 MAN00010 1/4-20NCX3/8LG Bhscs SS 4.0 EA 0.18
13 MAN00032 View Image #10-32NFX1/4LG Bhscs SS 4.0 EA 0.00
14 MAN00079 #6-32NC X 1/2LG Bhscs SS 2.0 EA 0.29
15 MAN00105 #8-32NCX3/8LG Bhscs SS 7.0 EA 0.00
16 MBC00002 View Image #6-32NC Mach Scr Nyl Lck Nut 2.0 EA 0.39
17 MBC00003 #8-32NC Mach Scr Nyl Lck Nut 5.0 EA 0.39
18 MBC00007 View Image 3/8-16NC Fnsh Hex Nyl Lck Nut 2.0 EA 0.39

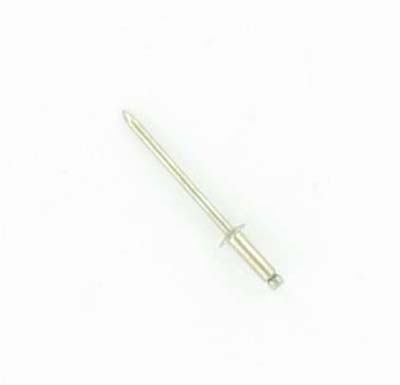

19 MCL00007 View Image 1/8X.188-.250 Dome HD Rivet SS 2.0 EA 0.39
20 MJQ00635 3/4 ID X 3/32 Rubber Grommet 1.0 EA 2.20
21 MKH00165 115-275AC, 4.5-60DC Hour Meter 1.0 EA 69.87
22 MLA00301 Single Receptacle Box 2.0 EA 21.18
23 MLB00044 120V Nema 5-15R Single Rcpt 1.0 EA 29.48
24 MLB00045 120V Nema 5-15R Single Rcpt 1.0 EA 29.48
25 MLJ00072 3/8 Loop Clamp 2.0 EA 0.00
26 MLN00112 11.5" X .19" Cable Tie 1.0 EA 0.18
27 MQC00065 Replaced by A739501 (Effective to 6/13/22) 1.0 EA 0.00
27 MQC00078 2 Output Valve Controller 1.0 EA 538.00
28 MQF00607 Clip Attach Metal DT Series 2.0 EA 0.00
29 08P0881013 Hyd Fill Instructions Label 1.0 EA 10.64
Part Number 719805 Supplemental Kits

Item
Item
Price
A739501 MQC00078 Controller Retrofit Kit
1,639.00
Part Number 719805 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
719906 EP800AD (Acrobat) HPU 120V Electrical Wiring Schematic w/ Outlets
120V, 50/60Hz, 1Ph
0.00
