Talon 2000 Vehicle Assembly
Item Number: 7800201
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Talon 2000 Vehicle Assembly


Talon 2000 Vehicle Assembly


Talon 2000 Vehicle Assembly


Part Number 7800201 Component List
  Item Component Description Quantity Unit
Price
1 7800301 (assembly) Talon 2000 Carriage Assembly 1.0 EA 0.00
2 7801001 (assembly) Talon 2000 Chassis Assembly 1.0 EA 0.00
3 7804801 Brace Wld 2.0 EA 0.00
4 7811801 Carriage Lock 2.0 EA 0.00
5 7811901 Carriage Pin Wld 1.0 EA 0.00
6 7830101 (assembly) Talon 2000 Power Pack Assembly 1.0 EA 0.00
7 MAB00003 View Image 1/4-20NCX3/4LG Hhcs 4.0 EA 0.31
8 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 4.0 EA 0.10
9 MBF00005 View Image 1/4 TY 'a' Wide FL Wshr Stl PL 4.0 EA 0.11
10 MCF00023 View Image 1DIAX2-5/16 Grip Clv Pin PL 6.0 EA 13.87
11 MCH00027 3/16DIAX2LG Cotter Pin (Effective to 2/12/15) 6.0 EA 0.40

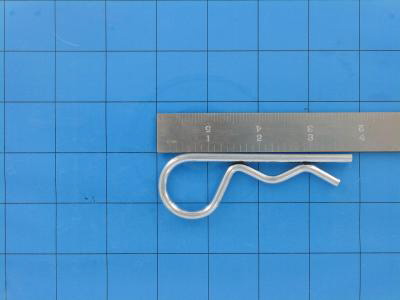

11 MCH00026 View Image .178DIAX3-3/4LG Hair Pin 6.0 EA 1.60
12 MDM00452 2-1/2" Spherical Bushing 1.0 EA 0.00
13 MFJ00002 View Image 1/8NPT Grease Zerk 1.0 EA 1.18
14 MAB00232 1/2-13NCX1-1/4LG Hhcs 1.0 EA 0.00
15 MBF00009 View Image 1/2 TY 'a' Wide FL Wshr Stl PL 1.0 EA 0.25
16 MLN00508 24V, 48X60 Motorized Rlr Shade 1.0 EA 0.00
17 MBA00003 #8-32NC Hex Nut Stl PL 4.0 EA 0.32
