Talon 2000 Carriage Assembly
Item Number: 7800301
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Talon 2000 Carriage Assembly


Talon 2000 Carriage Assembly


Talon 2000 Carriage Assembly


Talon 2000 Carriage Assembly


Talon 2000 Carriage Assembly


Talon 2000 Carriage Assembly


Part Number 7800301 Component List
  Item Component Description Quantity Unit
Price
1 7801101 (assembly) Talon 2000 Outer Fixed Jaw Assembly 1.0 EA 0.00
2 7801201 (assembly) Talon 2000 Inner Fixed Jaw Assembly 1.0 EA 0.00
3 7801301 (assembly) Talon 2000 Inner Movable Jaw Assembly 1.0 EA 0.00
4 7801401 (assembly) Talon 2000 Outer Movable Jaw Assembly 1.0 EA 0.00
5 7801701 Indexer Locator Insert 4.0 EA 0.00
6 7801703 Indexer Mounting Cone 4.0 EA 0.00
7 7812101 Cyl Extension Rod Washer 2.0 EA 0.00
8 7817501 Handwheel Wld 4.0 EA 349.00
9 7834601 Guide Rod 2.0 EA 0.00
10 7834701 Guide Rod Plug 4.0 EA 0.00
11 7835601 Cylinder Extension Rod 2.0 EA 0.00
12 7835701 Transducer Mount 1.0 EA 0.00
13 7835801 Jaw Conversion Link (2+2)(3+1) 2.0 EA 0.00
14 7836001 Guide Rod Support Wld 1.0 EA 0.00
15 7836101 Stop Wld 2.0 EA 0.00
16 7836601 Guide Rod Cover 2.0 EA 0.00
17 7836701 Guide Rod Link 2.0 EA 0.00
18 7836801 Pin 2.0 EA 0.00
19 7836901 Link Washer 4.0 EA 0.00
20 7837001 Transducer Indicator Arm 1.0 EA 0.00
21 7840401 Indexer Mount Lever 4.0 EA 172.00
22 7841301 Carriage Bulkhead Bracket 4.0 EA 0.00
23 MAB00031 View Image 5/16-18NCX1/2LG Hhcs 12.0 EA 0.43
24 MAB00081 1/2-13NCX1-1/4LG Hhcs 6.0 EA 1.43
25 MAB00085 1-8NCX3LG Hhcs GR8 2.0 EA 13.13
26 MAB00111 View Image 1/2-13NCX3-3/4LG Hhcs 12.0 EA 1.53
28 MAB00176 5/8-11NCX1-3/4 LG Hhcs GR8 16.0 EA 0.00
29 MAB00181 5/8-11NCX2LG Hhcs GR8 38.0 EA 2.27
30 MAB00218 1-3/4-12NFX4LG Hhcs GR8 2.0 EA 0.00
31 MAB00220 5/8-11NCX1LG Hhcs 24.0 EA 0.00
32 MAB00221 1-8NCX3-1/2LG Hhcs GR8 2.0 EA 0.00
33 MCK00008 1/8DIAX1/2 Grip Blind Rivet 4.0 EA 0.27
34 MAH00258 5/8 X 5" Greasable Bolt Kit 2.0 EA 0.00
36 MBA00009 View Image 1/2-13NC Fnsh Hex Nut Stl PL 14.0 EA 0.46
37 MBA00011 View Image 5/8-11NC Fnsh Hex Nut Stl PL 8.0 EA 0.70
38 MBG00086 5/8 Hardened Flat Washer 54.0 EA 4.28
39 MBG00103 1-3/4 Hardened Flat Washer PL 2.0 EA 0.00
40 MBG00107 1 Sae Flat Washer PL 4.0 EA 0.00
41 MCA00051 4.500 Int Snap Ring 4.0 EA 0.00
42 MCE00042 Quick Release Pin SS 4.0 EA 0.00
43 MDM00488 2" Spherical Bushing 2.0 EA 0.00
44 MEB00203 5B X 22S X 2R Hyd Cyl 2.0 EA 3,354.00
45 MFD00100 .84"ID Twin Hose Clmp W/cvr PL 6.0 EA 0.00
46 MFD00101 .84" ID Twin Hose Clamp 6.0 EA 0.00
47 MFD00102 1/2"ID Twin Hose Clmp W/cvr PL 2.0 EA 0.00
48 MFD00103 .69" ID Cushion Clamp 2.0 EA 0.00
49 MJJ00039 Knob 1-1/2" Dia Brass Ball 4.0 EA 51.12

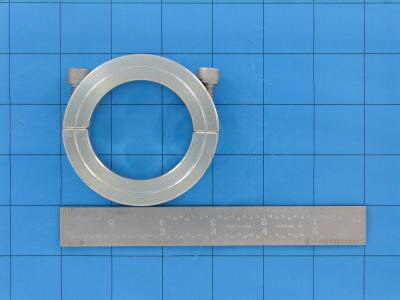

50 MJQ00436 View Image 2" Bore Clamp Collar 2.0 EA 117.00
51 MQB00073 24" Linear Transducer, 4-20MA 1.0 EA 2,131.00
52 MQB00066 Captive-sliding Xdcr Magnet 1.0 EA 265.00
53 MAC00038 View Image #10-24NCX3/4LG Shcs SS 4.0 EA 0.50
54 MBC00004 View Image #10-24NC Mach Scr Nyl Lck Nut 4.0 EA 0.31
55 MAB00039 5/16-18NCX2-1/2LG Hhcs 4.0 EA 0.70
56 MAB00046 5/16-18NCX4-1/2LG Hhcs GR5 PL 2.0 EA 0.00
57 MAB00050 5-16-18NCX7LG Hhcs GR5 PL 2.0 EA 0.00
58 MJR00015 14OZ Tube Mobil 100 Syn Grease 12.0 EA 0.00
59 7800730 (assembly) Talon 2000 Carriage Hydraulic / Plumbing Schematic 1.0 EA 0.00
60 MAB00175 5/8-11NCX1-1/2 LG Hhcs GR8 16.0 EA 0.00
61 MHA00038 3/4 Tube Clip 14.0 EA 12.14
62 8163260 Pipe Handling Warning Label 4.0 EA 0.00
63 8163261 Overhead Components Wrnng Lbl 4.0 EA 0.00
64 8163267 Lock Label 4.0 EA 0.00
65 8163268 Unlock Label 4.0 EA 0.00
66 MAC00055 View Image 1/4-20NCX1LG Shcs PL 14.0 EA 0.25
67 MDM00508 M5X0.8MM Male Inline Balljoint 1.0 EA 0.00
68 MBC00059 M5X0.8 Hex Nylon Lock Nut 1.0 EA 0.00
69 MBF00004 View Image #10 TY 'a' Wide FL Wshr Stl PL 2.0 EA 0.10
70 8163270 32.99 SQ IN Tepa Label 1.0 EA 0.00
