DynaMc 250 Electric Pump 2 Jaw Carriage Assembly
Item Number: 900401
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
DynaMc 250 Electric Pump 2 Jaw Carriage Assembly


Part Number 900401 Component List
  Item Component Description Quantity Unit
Price
1 A829101 View Image Long Clamp Knob Assembly 2.0 EA 92.69
2 801701 View Image Clamp Pad 2.0 EA 20.66
3 803901 View Image Clamp Eyebolt 2.0 EA 97.38
4 808501 View Image Clamp Pivot Pin 2.0 EA 16.45
5 811803 View Image Guide Rod Support Plate 1.0 EA 325.00
6 882401 Dynamc Cyl End Block 2.0 EA 288.00
7 882501 (assembly) DynaMc Hand Pump 2 Jaw Low Force Cylinder Assembly Set 1.0 ST 2,764.00
8 886701 Dynamc 250 Outer Fix Jaw 1.0 EA 961.00
9 886801 Dynamc 250 Movable Jaw 1.0 EA 961.00
10 888301 Dynamc 250 All Thread (Effective to 6/14/10) 1.0 EA 0.00

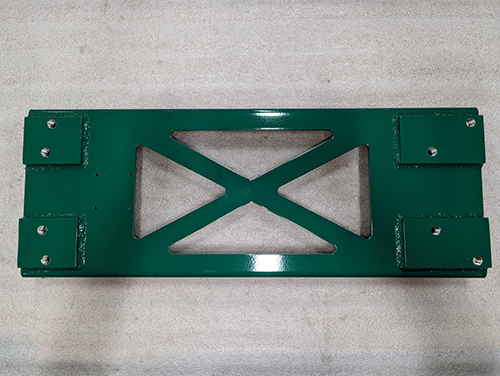

11 892301 View Image DYNAMC250 2J Roll Bar Skid Wld 1.0 EA 1,088.00
12 898201 (assembly) DynaMc 28 EP Sidewall Carriage Plumbing Schematic 1.0 EA 779.00

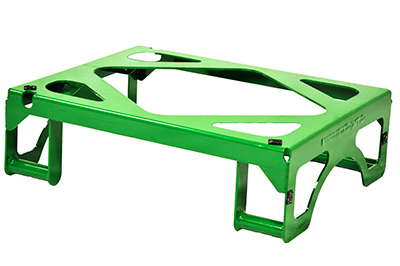

13 1255701 View Image Dynamc Carriage Skid Wld 1.0 EA 741.00
14 T2503402 Upper Jaw 2.0 EA 740.00
15 MAB00065 View Image 3/8-16NCX1-1/4LG Hhcs 2.0 EA 0.52
16 MAB00077 View Image 3/8-16NCX1LG Hhcs GR8 2.0 EA 0.70
17 MAG00002 View Image #10-24NCX3/8LG Skt Set Scr 2.0 EA 1.27
18 MAN00001 View Image #10-24NCX3/8 LG Fhscs SS 4.0 EA 0.41
19 MAN00002 View Image 1/2-13NCX1-1/2 LG Shcs SS 2.0 EA 3.46
20 MAN00068 1/2-13NC X 2-1/4 LG Shcs SS 2.0 EA 0.00
21 MBA00009 View Image 1/2-13NC Fnsh Hex Nut Stl PL (Effective to 6/14/10) 2.0 EA 0.46
22 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 4.0 EA 0.18
23 MBG00001 View Image 3/8 Type 'an' FL Wshr Stl PL 4.0 EA 0.26
24 MCE00002 View Image 1/4DIAX2.00 Grip Detent Pin 4.0 EA 10.72
25 MCE00006 View Image 1/2DIAX2.00 Grip Detent Pin 2.0 EA 12.47
26 MCF00051 View Image 1/2DIAX9.68/9.63 Grip Clv Pin 1.0 EA 50.06

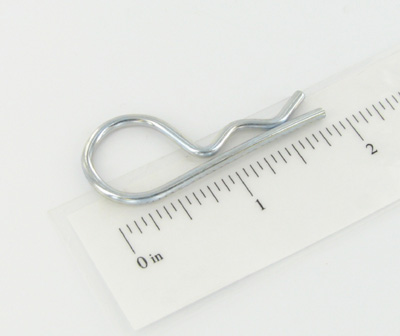

27 MCH00015 View Image 3/8DIAX1-7/8LG Hair Pin 1.0 EA 0.51
Part Number 900401 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
1272601 DynaMc Electric Pump Fusion Machine Operator's Manual
 		154.00
1272602 DynaMc Electric Pump Fusion Machine Spanish Operator's Manual
 		0.00
816336102 Prop 65 Warning Label Instruction Sheet for DynaMc 28HP, 250HP, 412HP
28EP, 250EP, 412EP, 250 & 412 Auto
 		0.00
