Printable Pdf Document Printable Version
Replaced by AT2419003
 PitBull 630 Low Force 220-240V Fusion Machine Package
 4/2007 to 9/2018
Item Number: AT2400403
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
PitBull 630 Low Force Fusion Machine Package


Part Number AT2400403 Component List
  Item Component Description Quantity Unit
Price
1 T2400201 (assembly) TracStar 630 Facer Assembly 1.0 EA 39,236.00

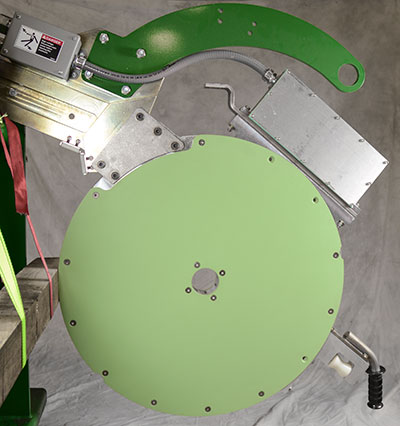

2 T2400301 (assembly) View Image TracStar 630 Butt Plate Heater Assembly 1.0 EA 22,501.00
3 T2400403 (assembly) TracStar 630 LF Carriage Assembly 1.0 EA 0.00
4 T2401201 (assembly) TracStar 630 Spreader Bar Assembly (Effective to 12/31/07) 1.0 EA 0.00
4 T9028301 (assembly) View Image Spreader Bar Assembly 1.0 EA 4,831.00

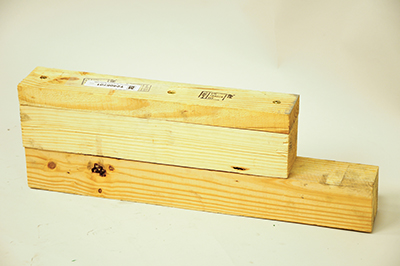

5 T2408701 View Image T630 Heater Support Block Assy (Effective to 2/22/12) 1.0 EA 144.00
Part Number AT2400403 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
T9028801 No. 824, TracStar 630, No. 1236 & TracStar 900 Fusion Machine Operator's Manual
 		335.00
T9028802 No. 824, TracStar 630, No. 1236 & TracStar 900 Fusion Machine Spanish Operator's Manual
 		0.00
T9028805 No. 824, TracStar 630, No. 1236 & TracStar 900 Fusion Machine Portuguese Operator's Manual
 		0.00
