Hornet Assembly
Item Number: SW25001
Price: $4,076.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Hornet Assembly


Hornet Assembly


Part Number SW25001 Component List
  Item Component Description Quantity Unit
Price
1 SW24701 Hornet Logo Decal 2.0 EA 43.07
2 SW25701 Rear Guide Rod 1.0 EA 0.00
3 SW25702 Front Guide Rod 2.0 EA 330.00
4 SW25801 Top Plate Template 1.0 EA 134.00
5 SW25901 Quick Change Carriage 1.0 EA 430.00
6 SW26001 Hornet Base 1.0 EA 324.00
7 SW26101 Gear Shaft 1.0 EA 159.00
8 SW26601 Drive Handle 2.0 EA 106.00
9 SW27101 Drive Rack 1.0 EA 268.00
10 SW27301 Lock Bracket 1.0 EA 169.00
11 SW27601 Carriage Lock Wld 1.0 EA 179.00
12 8163326 4.5" McElroy Branding Label 2.0 EA 0.00
13 MAB00002 View Image 1/4-20NCX1/2LG Hhcs 1.0 EA 0.18
14 MAC00025 View Image #8-32NCX3/4LG Shcs PL (Effective to 9/9/18) 2.0 EA 0.39
14 MAN00050 #8-32NCX1LG Shcs SS 2.0 EA 0.00
15 MAE00123 1/4-20NCX3/4LG Bhscs SS 2.0 EA 0.34
16 MAI00019 1/4-20NCX13-1/4 LG Crg Bolt 3.0 EA 0.00
17 MBA00005 View Image 1/4-20NC Fnsh Hex Nut Stl PL 5.0 EA 0.32
18 MBG00044 1/4 Type 'an' Flat Wshr Stl PL 6.0 EA 0.49
19 MBG00077 3/8 Flat White/nat Nyl Washer 2.0 EA 0.00
20 MBG00082 1/4" Nylon Washer 2.0 EA 0.46
21 MCG00054 1/8DIAX1-1/8LG Roll Pin Stl PL 2.0 EA 0.35

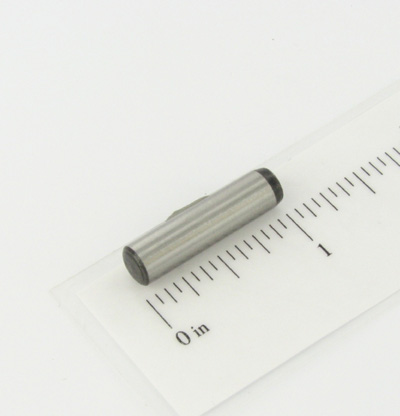

22 MCI00001 View Image 1/4DIAX1LG Dowel Pin 1.0 EA 1.00
23 MCK00072 3/32X3/32X1/2LG Key,sq Ends 1.0 EA 18.00
24 MDM00477 .3765 ID X .503 OD Bushing 2.0 EA 2.11
25 MDM00536 View Image 1-1/8ID X3/4" LG Igus Bushing 4.0 EA 26.47
26 MDQ00058 Hornet Drive Gear 1.0 EA 263.00
27 MJN00013 5/16-18 Ball Plunger 1.0 EA 14.82
28 MJN00014 5/16-18 Retractable Plunger SS 1.0 EA 47.13
29 MJQ00644 1" Green Ratchet Strap 1.0 EA 68.32
Part Number SW25001 Related Manuals, Instruction Sheets, and Older Equipment

Item
Description
Price
816336111 Prop 65 Warning Label Instruction Sheet for Hornet, Hornet XL
 		0.00
