TracStar 412 Facer Assembly
Item Number: T1200501
Price: $9,794.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
TracStar 412 Facer Assembly


Part Number T1200501 Component List
  Item Component Description Quantity Unit
Price

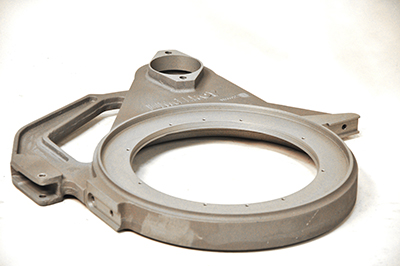

1 T1208002 View Image Facer Body 1.0 EA 1,883.00
2 T1208102 View Image Tapped Blade Holder 1.0 EA 1,441.00
3 T1208103 View Image C'bored Blade Holder 1.0 EA 1,441.00
4 T1208201 View Image Bearing Spacer 1.0 EA 108.00
5 T1208301 View Image Bearing Retainer 1.0 EA 200.00
6 T1208401 View Image Driven Sprocket 1.0 EA 231.00
7 T1208501 View Image Facer Seal Ring 2.0 EA 54.37
8 T1208502 View Image Facer Body O'ring 2.0 EA 6.06
9 T1208609 View Image 6.12 LG Facer Blade 6.0 EA 135.00
10 T5008801 View Image Replaced by T5008803 (Effective 10/2/00 to 6/6/13) 1.0 EA 0.00
10 T5008803 View Image Fcr Latch Handle 1.0 EA 361.00
11 T5004901 View Image Fcr Guide Rod Bracket W/hdwr (Effective 1/15/01 to 3/11/13) 1.0 EA 169.00
11 T5004905 Obs & Repl by T12P1033249 (Effective 3/12/13 to 8/12/24) 1.0 EA 0.00
11 T12P1033249 Facer Guide Rod Bracket 1.0 EA 169.00
12 1231102 View Image Cover Plate 1.0 EA 92.04
13 MEC00004 View Image 1"SHT,1/4K,11.9CID Hyd Mtr 1.0 EA 689.00
14 MDF00076 View Image #40SH21 Sprocket 1.0 EA 67.43
15 MDH00002 View Image 1B, Type Sh, QD Hub 1.0 EA 29.50
16 AT1208701 View Image Facer Roller Chain Assembly 1.0 EA 61.15
17 MDM00304 View Image 10" ID X 10.75" OD Bearing 1.0 EA 2,518.00
18 MCK00017 View Image 3/8DIAX1-3/4LG Lock Pin Stl PL 1.0 EA 3.45
19 MAH00074 View Image #8-32NCX3/8LG Fhscs SS 24.0 EA 0.29
20 MJE00008 View Image Die Spring 1.0 EA 6.69
21 MAB00069 View Image 1/2-13NCX1-1/2LG Hhcs 2.0 EA 0.74
22 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 2.0 EA 0.18
23 MAH00052 View Image 1/4-20NC X 3/4"LG Shcs SS 4.0 EA 0.49
24 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 4.0 EA 0.10
25 MAN00056 View Image 3/8-16NCX1-1/2LG Bhscs SS 1.0 EA 2.09
26 MAH00070 View Image 3/8-16NCX1LG Bhscs SS 2.0 EA 0.92
27 MAD00031 View Image #10-24NCX1/2LG Fhscs 8.0 EA 0.39
28 MAH00051 View Image 1/4-20NCX1-3/4LG Shcs SS 6.0 EA 1.23
29 T1801201 (assembly) Facer Hydraulic/Plumbing Schematic (Effective 10/25/04 to 8/12/24) 1.0 EA 761.00
30 MAN00039 View Image 3/8-16NCX1-1/2LG Fhscs SS (Effective 2/8/07 to 1/6/25) 1.0 EA 2.00
30 MAN00123 3/8-16NCX1-1/8LG Fhscs SS 1.0 EA 1.67
31 816302 View Image Fcr Valve Label Cap 1.0 EA 4.77
32 MEI00015 View Image 8SAE Ball Valve 1.0 EA 230.00
33 MFH00045 View Image 1/2 Fsae Quick Disc Coupler 1.0 EA 60.00
34 MFH00046 View Image 1/2 Fsae Quick Disc Nipple 1.0 EA 39.67
35 MFQ00004 View Image 8MSAE/8MSAE Adapter 1.0 EA 19.54
36 MFQ00005 View Image 8MSL/8FSL Swivel Elbow 2.0 EA 26.81
37 MFQ00021 View Image 8FSL/8MSAE Swivel Adapter 2.0 EA 34.64
38 MFQ00022 View Image 8MSL/10MSAE Elbow 2.0 EA 37.13
39 MFQ00051 View Image 8MSL/8FSL Swivel Elbow 45 1.0 EA 39.83
Part Number T1200501 Suggested Accessories

Item
Description
Price
T1208603 4.63 Long Facer Blade Set (6 Blades)
 		693.00
T1208603C 4.63 Long Extended Life Facer Blade Set (6 Blades)
 		1,134.00
T1208610 6.13 Long Facer Blade Set (6 Blades)
 		798.00
T1208610C 6.13 Long Extended Life Facer Blade Set (6 Blades)
 		1,344.00
