Idler roller assembly
Idler roller assembly
Photographs and drawings of products are for representational purposes only and may not represent actual product available.

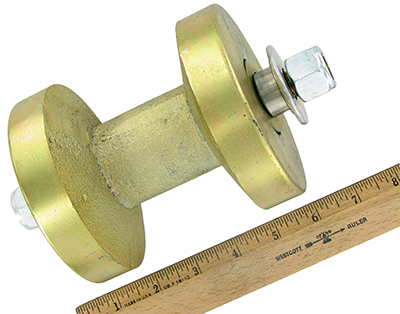

Idler roller assy
Idler roller assy
Photographs and drawings of products are for representational purposes only and may not represent actual product available.
Printable Pdf Document Printable Version
Idler Roller Assembly
Item Number: T1200602
Price: $273.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Idler Roller Assembly


Part Number T1200602 Component List
  Item Component Description Quantity Unit
Price
1 T1207302 Idler Roller 1.0 EA 0.00

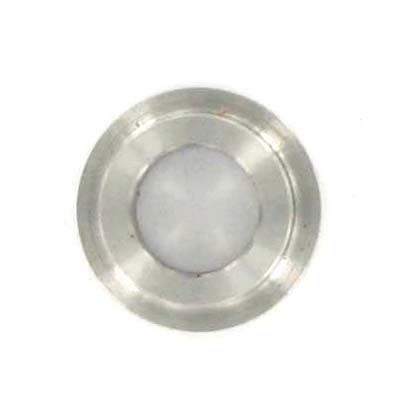

2 T1206501 View Image Idler Bolt Sleeve 2.0 EA 29.29

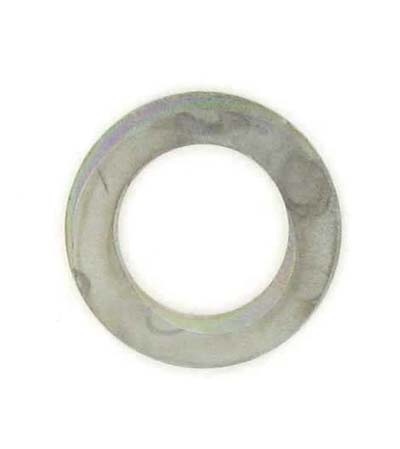

3 T1206601 View Image Idler Bolt Inner Washer 2.0 EA 2.19

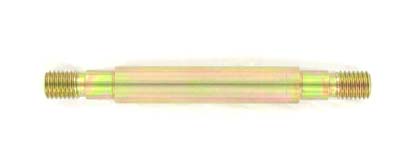

4 T1207401 View Image Idler Bolt 1.0 EA 41.37
5 MBC00011 5/8-11NC Fnsh Hex Nyl Lck Nut 2.0 EA 1.09
6 MBF00011 View Image 5/8 TY 'a' Wide FL Wshr Stl PL 2.0 EA 0.40

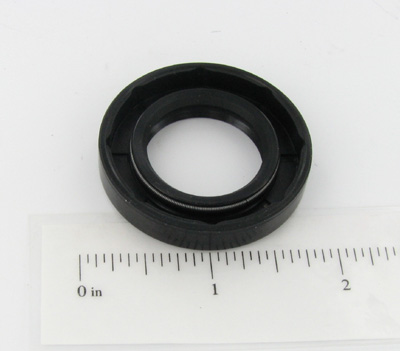

7 MDL00229 View Image Seal 2.0 EA 11.59

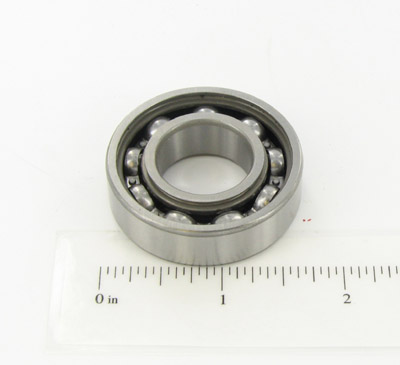

8 MDM00284 View Image 20MM X 42MM X 12MM Bearing 2.0 EA 10.98
