Take Up Cylinder Assembly
Item Number: T1200604
Price: $416.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Take Up Cylinder Assembly


Part Number T1200604 Component List
  Item Component Description Quantity Unit
Price

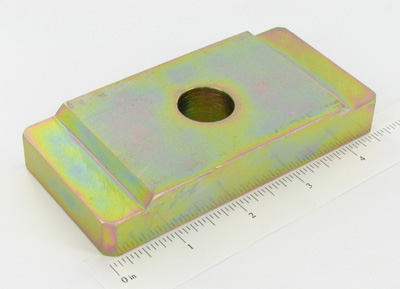

1 T1206901 View Image Take UP Pusher Plate 1.0 EA 92.00

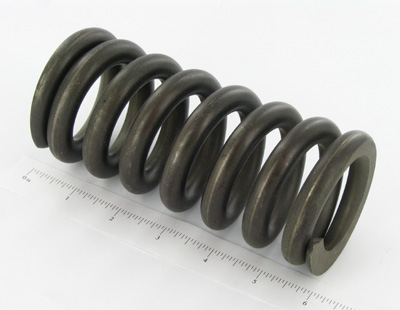

2 T1207801 View Image Take UP Spring 1.0 EA 45.26

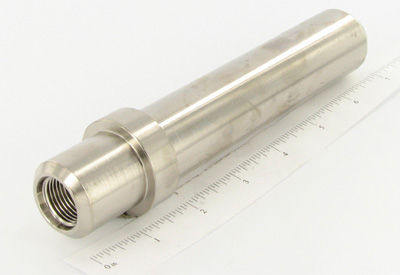

3 T1207601 View Image Take UP Cylinder 1.0 EA 139.00

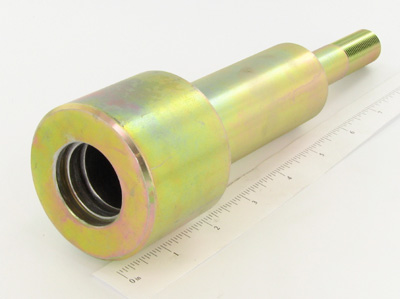

4 T1207701 View Image Take UP Piston 1.0 EA 195.00

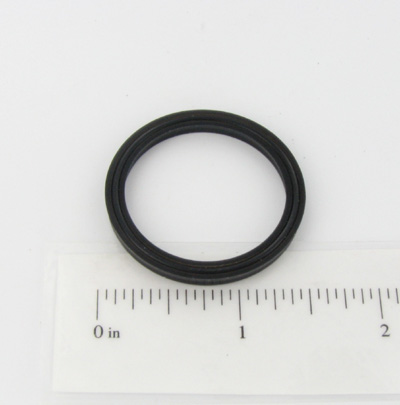

5 MDL00235 View Image Poly Pak Seal 1.0 EA 7.69
6 MDL00233 View Image Wiper 1.0 EA 1.78

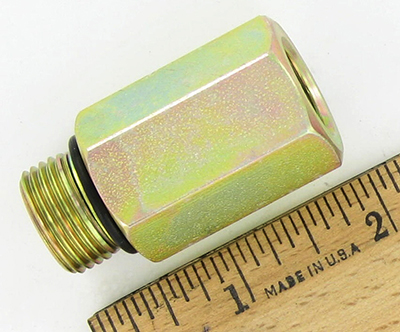

7 T1215201 View Image Grease Fitting Adptr W/ O-ring 1.0 EA 91.94

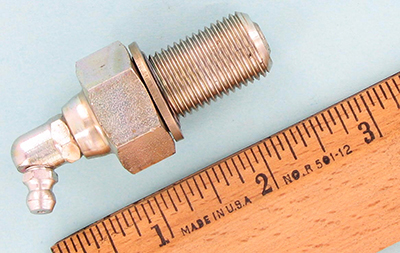

8 MFJ00021 View Image M16X1.5 Ball Check&zerk Fitng 1.0 EA 63.57

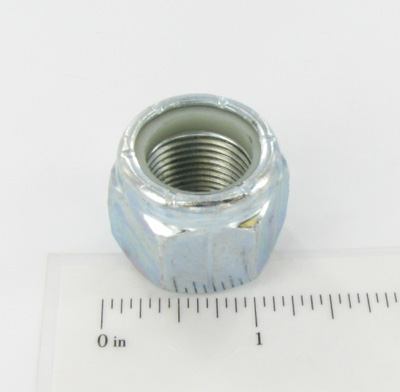

9 MBC00032 View Image 3/4-16NF Fnsh Hex Nyl Lck Nut 1.0 EA 1.51
