TracStar 618 Facer Assembly
Item Number: T1800501
Price: $17,778.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
TracStar 618 Facer Assembly


Part Number T1800501 Component List
  Item Component Description Quantity Unit
Price

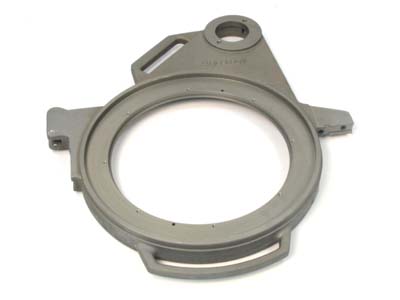

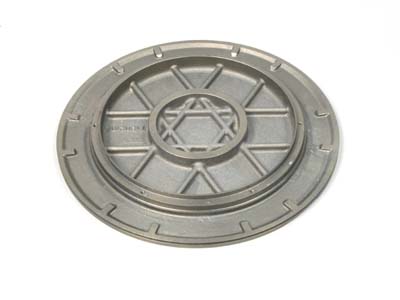

1 T1802002 View Image Facer Body 1.0 EA 3,524.00

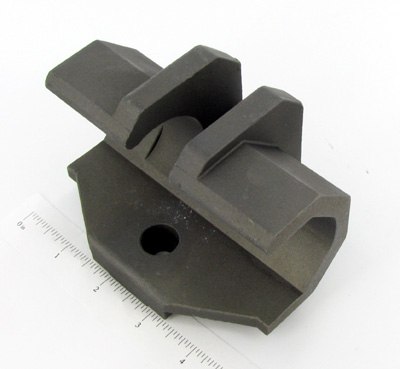

2 T1802102 View Image Tapped Blade Holder 1.0 EA 2,609.00
3 T1802103 View Image C'bored Blade Holder 1.0 EA 2,609.00

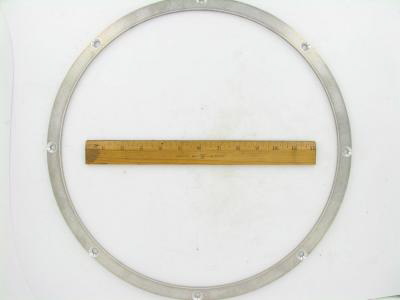

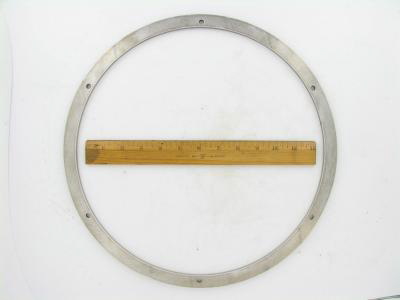

4 T1802301 View Image Facer Spacer Ring 1.0 EA 232.00
5 T1802401 View Image Facer Bearing Retainer 1.0 EA 257.00

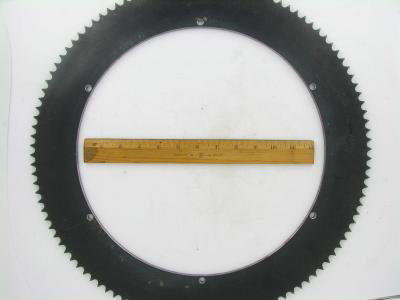

6 T1802201 View Image Driven Sprocket 1.0 EA 372.00

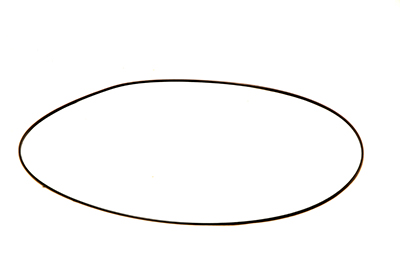

7 1838201 View Image Slipper Seal 2.0 EA 156.00

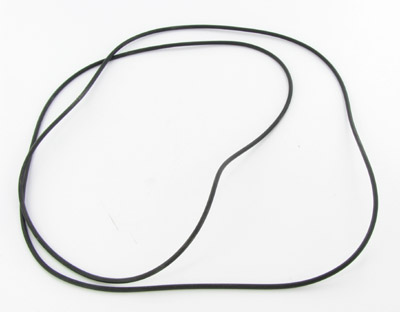

8 T1802502 View Image Blade Holder O-ring 2.0 EA 26.16

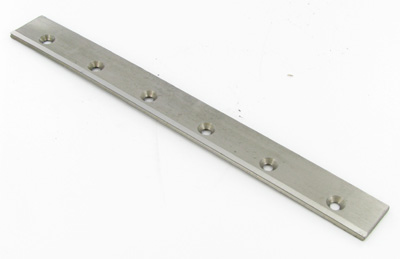

9 T1812601 View Image 9.12LG Facer Blade 6.0 EA 169.00
10 T5008801 View Image Replaced by T5008803 (Effective 4/24/01 to 6/6/13) 1.0 EA 0.00
10 T5008803 View Image Fcr Latch Handle 1.0 EA 361.00
11 T5004903 View Image T618 Fcr Guide Rod Brkt W/hdwr (Effective 3/24/03 to 2/28/13) 1.0 EA 169.00
11 T5004906 Fcr GD Rod Brkt-order T5004903 (Effective 3/1/13 to 8/12/24) 1.0 EA 0.00
11 T5004901 View Image Fcr Guide Rod Bracket W/hdwr (Effective 4/24/01 to 3/23/03) 1.0 EA 169.00
11 T18P1033760 618 Facer Guide Rod Bracket 1.0 EA 169.00

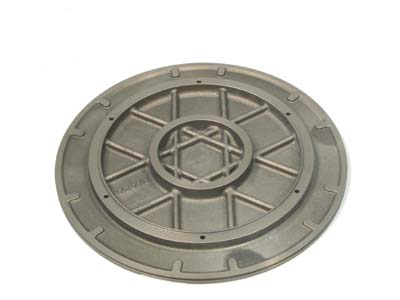

12 1231102 View Image Cover Plate 1.0 EA 92.04
13 MEC00004 View Image 1"SHT,1/4K,11.9CID Hyd Mtr 1.0 EA 689.00

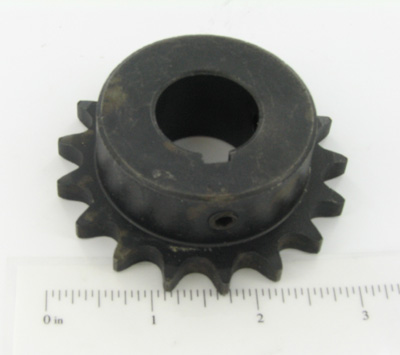

14 MDF00028 View Image 1B, 1/4KEY,#40BS17 Chain Sprkt 1.0 EA 35.82

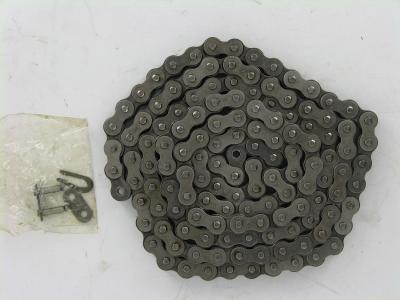

16 AT1802601 View Image Facer Roller Chain Assembly 1.0 EA 77.23
17 MDM00308 Bearing 1.0 EA 3,056.00
18 MCK00017 View Image 3/8DIAX1-3/4LG Lock Pin Stl PL 1.0 EA 3.45
19 MAH00074 View Image #8-32NCX3/8LG Fhscs SS 36.0 EA 0.29
20 MJE00008 View Image Die Spring 1.0 EA 6.69
21 MAB00104 View Image 1/2-13NCX1-3/4LG Hhcs (Effective 9/12/01 to 1/7/20) 2.0 EA 1.42
21 MAB00069 View Image 1/2-13NCX1-1/2LG Hhcs 2.0 EA 0.74
22 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 2.0 EA 0.18
23 MAH00052 View Image 1/4-20NC X 3/4"LG Shcs SS 4.0 EA 0.49
24 MBE00005 View Image 1/4 Reg Splt Lck Washer Stl PL 4.0 EA 0.10
25 MAN00056 View Image 3/8-16NCX1-1/2LG Bhscs SS 2.0 EA 2.09
26 MAH00070 View Image 3/8-16NCX1LG Bhscs SS 1.0 EA 0.92
27 MAD00044 View Image 1/4-20NCX3/4LG Fhscs PL 8.0 EA 0.85
28 MAH00051 View Image 1/4-20NCX1-3/4LG Shcs SS 6.0 EA 1.23
29 T1801201 (assembly) Facer Hydraulic/Plumbing Schematic (Effective 3/26/02 to 4/10/24) 1.0 EA 761.00

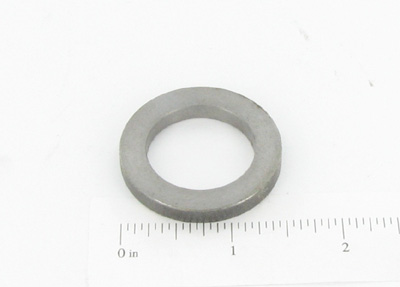

30 1835401 View Image Fcr Drive Sprocket Spacer 2.0 EA 25.79
31 MAB00002 View Image 1/4-20NCX1/2LG Hhcs 1.0 EA 0.18
32 MBG00031 View Image 1/4 Fender Washer Stl PL 1.0 EA 0.31
33 MAN00039 View Image 3/8-16NCX1-1/2LG Fhscs SS 1.0 EA 2.00
34 MEI00015 View Image 8SAE Ball Valve 1.0 EA 230.00
35 MFH00045 View Image 1/2 Fsae Quick Disc Coupler 1.0 EA 60.00
36 MFH00046 View Image 1/2 Fsae Quick Disc Nipple 1.0 EA 39.67
37 MFQ00004 View Image 8MSAE/8MSAE Adapter 1.0 EA 19.54
38 MFQ00005 View Image 8MSL/8FSL Swivel Elbow 2.0 EA 26.81
39 MFQ00021 View Image 8FSL/8MSAE Swivel Adapter 2.0 EA 34.64
40 MFQ00022 View Image 8MSL/10MSAE Elbow 2.0 EA 37.13

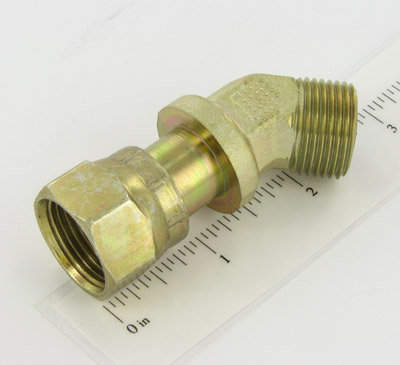

41 MFQ00051 View Image 8MSL/8FSL Swivel Elbow 45 1.0 EA 39.83
42 816302 View Image Fcr Valve Label Cap 1.0 EA 4.77
Part Number T1800501 Suggested Accessories

Item
Description
Price
T1208603 4.63 Long Facer Blade Set (6 Blades)
 		693.00
T1208603C 4.63 Long Extended Life Facer Blade Set (6 Blades)
 		1,134.00
T1812602 9.12 Long Facer Blade Set (6 Blades)
 		1,014.00
T1812602C 9.12 Long Extended Life Facer Blade Set (6 Blades)
 		1,614.00
