EP1500P (PitBull) HPU 240V,60Hz,1Ph Electrical Power Assembly
Item Number: T1811601
Price: $8,597.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
PitBull 240V,60Hz,1Ph HPU Electrical Power Assembly


PitBull 240V,60Hz,1Ph HPU Electrical Power Assembly


Part Number T1811601 Component List
  Item Component Description Quantity Unit
Price

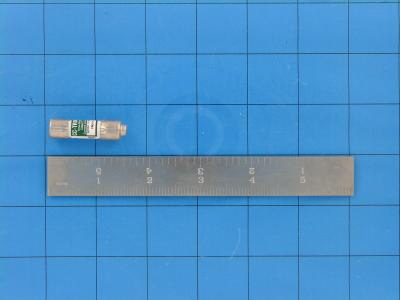

F1 MLQ00051 View Image 5 Amp Fuse 1.0 EA 16.53
F2 MLQ00051 View Image 5 Amp Fuse 1.0 EA 16.53

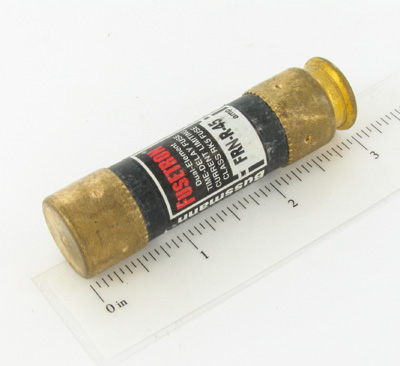

F3 MLQ00028 View Image 45 Amp Fuse (Effective 12/2/05 to 12/1/12) 1.0 EA 30.63
F3 MLN00318 35 Amp Fuse 1.0 EA 0.00
F4 MLQ00028 View Image 45 Amp Fuse (Effective 12/2/05 to 12/1/12) 1.0 EA 30.63
F4 MLN00318 35 Amp Fuse 1.0 EA 0.00

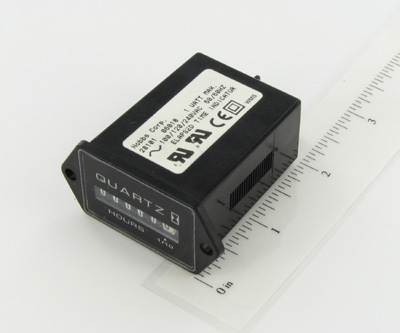

HM1 MKH00005 View Image A/c Multi-range Hour Meter 1.0 EA 64.00

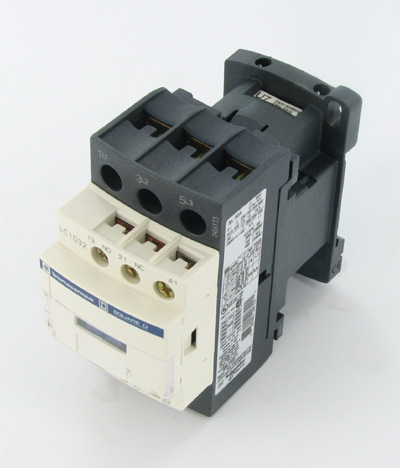

K1 MKJ00005 View Image 32A,240V,50/60HZ Contactor 1.0 EA 428.00
M1 MDB00101 5HP Induction Motor 1.0 EA 3,197.00

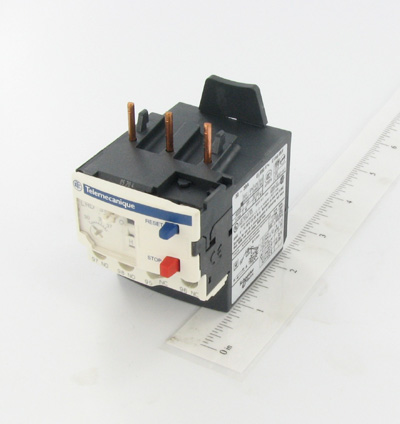

OL1 MLV00014 View Image 30-38 Amp Overload (Effective 2/7/05 to 12/1/12) 1.0 EA 327.00
OL1 MLV00031 17-25 Amp Overload (Effective 12/2/12 to 4/21/24) 1.0 EA 0.00
OL1 MLV00044 17-24 Amp Overload 1.0 EA 0.00

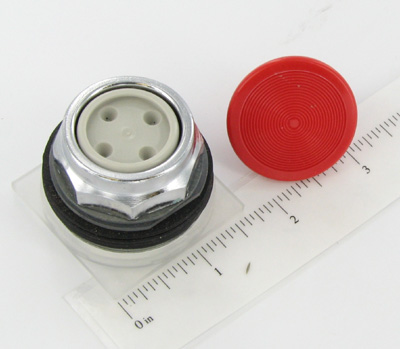

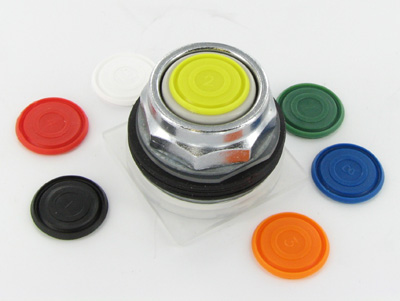

PB1 MKC00005 View Image Push Button 1.0 EA 216.00
PB2 MKC00001 View Image Push Button 1.0 EA 103.00
SPARE MLQ00028 View Image 45 Amp Fuse (Effective 11/13/08 to 12/1/12) 2.0 EA 30.63
SPARE MLQ00051 View Image 5 Amp Fuse 2.0 EA 16.53

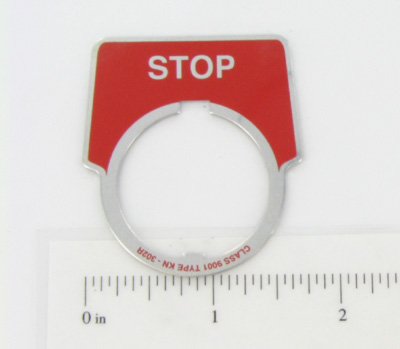

1 MLN00017 View Image Stop Legend PL 1.0 EA 10.91

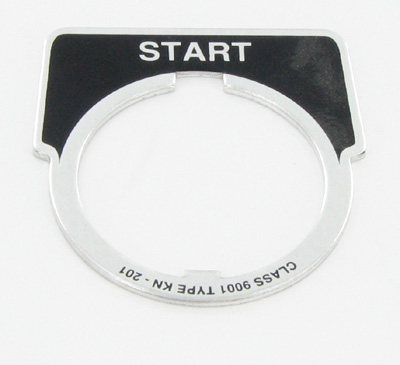

2 MLN00018 View Image Start Legend Plate 1.0 EA 13.87

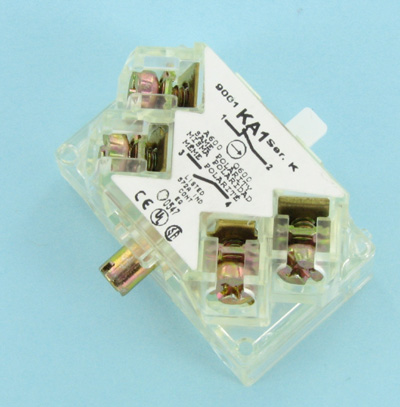

3 MKC00002 View Image Contact Block 2.0 EA 114.00
4 MLR00024 Replaced by MLR00072 (Effective 2/7/05 to 3/10/20) 1.0 EA 0.00

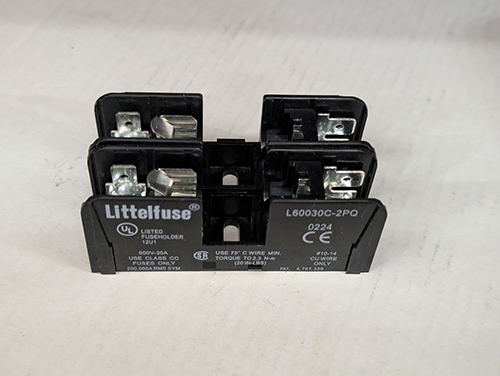

4 MLR00072 View Image 30A 2-POLE Class CC Fuse Block 1.0 EA 30.66
5 MLN00365 Fuse Block 1.0 EA 0.00
6 T1812201 Electrical Box Mod 1.0 EA 0.00
7 MLA00004 Panel 10X8 (Effective 2/7/05 to 3/10/20) 1.0 EA 0.00
7 T1812202 Panel Mod 1.0 EA 0.00
8 829201 View Image Danger High Voltage Label 1.0 EA 5.02
9 MLE00064 #6/3 Elec Cable 20.0 FT 18.06

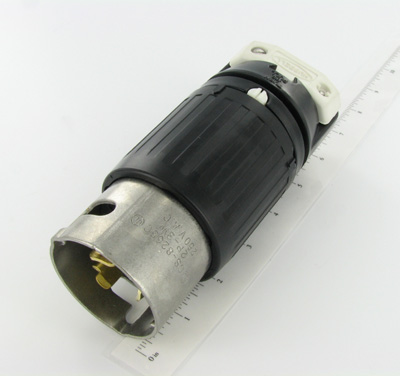

10 MLF00065 View Image 250V, 50A 2P3W Elec Plug 1.0 EA 0.00
11 MLK00016 View Image 1" Strain Relief Connector 1.0 EA 55.45
12 MLJ00005 View Image 3/4 Seal Ring 2.0 EA 5.67
13 MLN00350 View Image 1" Conduit Lock Nut 1.0 EA 1.56
16 MLI00002 View Image 3/4 Flex Conduit 1.08 FT 6.93
17 MLM00016 2/16-5/10 Wire Nut 3.0 EA 0.00
18 MLM00117 View Image 8 X #10 Hi-temp Ring Terminal (Effective 2/7/05 to 3/19/18) 1.0 EA 9.94
18 MLM00125 View Image 8 X 1/4 Hi-temp Ring Terminal 1.0 EA 5.10
19 MLM00037 View Image 14-1/0AWG X 1/4 Ground Lug 1.0 EA 8.74
20 MLL00001 #6 Thhn Elec Wire, Black (Effective 2/7/05 to 12/1/12) 1.0 FT 2.82
21 MLL00005 #8THHN-19 Elec Wire,black 8.0 FT 1.55
22 MLL00111 #8 Thhn Wire, 3.0 FT 0.00
23 MLL00014 #16 Mtw/tew Wire, Black 12.0 FT 0.72
25 MLJ00007 View Image 1" Seal Ring 1.0 EA 13.00
26 MLJ00009 View Image 3/4 X 90DEG Conduit Connector 1.0 EA 30.27
27 MLJ00010 View Image 3/4 X 45DEG Conduit Connector 1.0 EA 44.10
28 MLW00016 3/8DIA Split Corrugated Tubing (Effective 11/13/08 to 2/7/17) 0.5 FT 0.00
28 MLW00011 1/2DIA Split Corrugated Tubing 1.0 FT 1.33
29 MLN00221 Adh Back 2-WAY Mount 3.0 EA 2.55
30 MLM00017 View Image 14-16 X 1/4 Female Disconnect 2.0 EA 0.89
31 MAE00004 View Image #4-40NCX3/8LG Bhscs SS (Effective 2/8/17 to 5/29/24) 2.0 EA 0.29
31 MAN00033 View Image #4-40NCX1/2LG Bhscs SS 2.0 EA 0.13
32 MBC00001 #4-40NC Mach Scr Nyl Lck Nut 2.0 EA 0.34
33 MLM00061 Steel Din Rail 0.25 FT 18.91
34 MLM00056 View Image End Clamp 2.0 EA 5.96
35 MAH00111 View Image #10-24NCX1/2LG Hwh TF Screw SS 2.0 EA 0.50
36 MAH00037 View Image #10-24NCX3/4LG Hwh TF Screw (Effective 2/8/17 to 3/29/23) 2.0 EA 0.35
36 MAN00062 View Image #10-24NCX1/2 LG Bhscs SS 2.0 EA 0.29
37 MBF00006 View Image 5/16TY 'a' Wide FL Wshr Stl PL (Effective 3/20/18 to 5/29/24) 4.0 EA 0.11
37 MBF00005 View Image 1/4 TY 'a' Wide FL Wshr Stl PL 4.0 EA 0.11
38 MBE00006 View Image 5/16 Reg Splt Lck Wshr Stl PL 4.0 EA 0.11
39 MAB00032 View Image 5/16-18NCX3/4LG Hhcs 4.0 EA 0.44
40 MAC00023 #8-32NCX1/2LG Shcs PL (Effective 3/11/20 to 3/29/23) 2.0 EA 0.39
40 MAN00105 #8-32NCX3/8LG Bhscs SS 2.0 EA 0.00
41 MLN00482 Hour Meter Gasket 1.0 EA 4.49
42 MLJ00035 View Image 1 X 3/4 Thd Conduit Reducer 1.0 EA 8.55
