Facer Latch Assembly
Item Number: T4831201
Price: $4,341.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
Facer Latch Assembly


Part Number T4831201 Component List
  Item Component Description Quantity Unit
Price
1 4851801 Facer Latch 2.0 EA 395.00
2 4851601 Facer Latch Handle 1.0 EA 151.00
3 4851701 Actuator Arm 2.0 EA 0.00
4 4851901 Actuator Arm Bushing Block 2.0 EA 0.00
5 4852001 Facer Latch Bushing Block 2.0 EA 0.00
6 4852101 Facer Latch Conn Link 2.0 EA 0.00
7 4853401 Handle Limit Pin (Effective to 3/27/17) 1.0 EA 0.00
7 RZN0400105 0.500 Ann. & C.d. 304 SS Rnd 1.0 EA 0.00
8 4853402 Latch Limit Pin (Effective to 3/27/17) 1.0 EA 0.00
8 RZN0400100 0.500 Ann. & C.d. 304 SS Rnd 1.0 EA 0.00
9 4853403 Pivot Pin 4.0 EA 0.00
9 RZN0400145 0.500 C.f., Ann. 303 SS Rnd (Effective 3/27/17 to 9/18/17) 4.0 EA 0.00
10 MAB00064 View Image 3/8-16NCX1LG Hhcs 2.0 EA 0.51
11 MAE00025 #10-24NCX3/4LG Bhscs 16.0 EA 0.49
12 MAG00062 #10-24NCX3/8LG Skt Set Scr PL 5.0 EA 0.25
13 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 2.0 EA 0.12
14 MCE00004 View Image 3/8DIAX3.75 Grip Detent Pin 1.0 EA 6.34
15 MDM00080 Flange Bushing 4.0 EA 31.48
16 4852201 Pivot Mount Rest Button 4.0 EA 0.00
17 MCB00070 1-1/4 Spiral Retaining Ring 4.0 EA 0.00

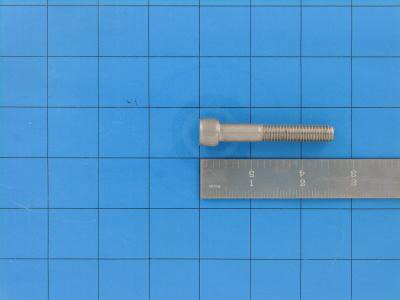

18 MAH00076 View Image 3/8-16NCX2-1/4LG Shcs SS 4.0 EA 2.86
