TracStar 1200 Facer Assembly
Item Number: T48P0935153
Price: $84,671.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
TracStar 1200 Facer Assembly


TracStar 1200 Facer Assembly


Part Number T48P0935153 Component List
  Item Component Description Quantity Unit
Price
1 1231102 View Image Cover Plate 1.0 EA 92.04
2 3615706 View Image 1236/1648/2065 Facer Blade 15"long 6.0 EA 348.00
3 4807501 View Image Roller 1.0 EA 220.00
4 4816701 View Image Fcr Roller Housing Shaft 1.0 EA 158.00
5 6522503 (assembly) 2.19 long Rest Button Assembly 6.0 EA 162.00
6 T48P0802621 Body Plate Spacer 1.0 EA 0.00
7 T48P0802802 Motor Side Cover Plate 1.0 EA 3,707.00
8 T48P0803370 Bearing 2.0 EA 2,637.00
9 T48P0803373 Spacer 2.0 EA 5,450.00
10 T48P0803375 Cover Plate 1.0 EA 0.00
11 T48P0803383 Tapped Blade Holder 1.0 EA 11,569.00
12 T48P0804674 Tensioner Riser 1.0 EA 0.00
13 T48P0804695 Wear Ring Segment 8.0 EA 181.00
14 T48P0807097 Lifting Lug 2.0 EA 175.00
15 T48P0807101 Facer Body 1.0 EA 15,704.00
16 T48P0807496 C'bored Blade Holder 1.0 EA 11,210.00
17 T48P0807762 Driven Sprocket 1.0 EA 3,854.00
18 T48P0812519 Facer Attachment Nut 3.0 EA 47.04
19 T48P0818720 48 Sprocket Spacer (Effective to 4/6/22) 1.0 EA 0.00
19 T48P0951210 Sprocket Spacer (Effective 4/7/22 to 7/19/23) 1.0 EA 0.00
19 T48P1000562 Facer Sprocket Spacer 1.0 EA 4.55
20 T48P0818722 48 Sprocket Retainer (Effective to 4/6/22) 1.0 EA 0.00
20 T48P0938892 Sprocket Retainer (Effective 4/7/22 to 7/19/23) 1.0 EA 92.94
20 T900P0938888 Facer Sprocket Retainer 1.0 EA 65.77
21 MAB00064 View Image 3/8-16NCX1LG Hhcs 2.0 EA 0.51
22 MAB00071 View Image 3/8-16NCX2-1/2LG Hhcs 2.0 EA 0.58
23 MAB00081 1/2-13NCX1-1/4LG Hhcs 7.0 EA 1.43

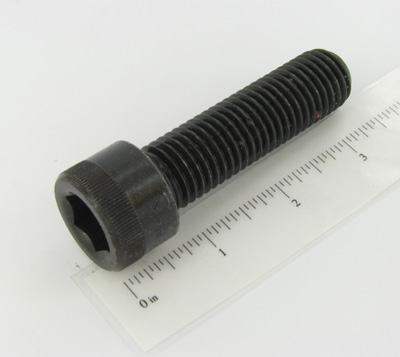

24 MAC00053 View Image 1/4-20NCX3/4LG Shcs PL 122.0 EA 0.49

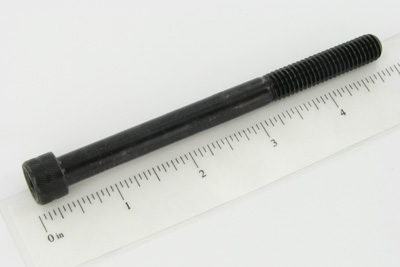

25 MAC00106 View Image 3/8-16NCX4-1/2LG Shcs PL 9.0 EA 4.80
26 MAC00187 View Image 3/4-10NCX2-3/4LG Shcs PL 2.0 EA 8.43
27 MAD00072 View Image 3/8-16NCX3/4LG Fhscs PL (Effective to 4/6/22) 1.0 EA 1.07
27 MADP0938734 5/8-18NFX1LG Fhscs 1.0 EA 3.27
28 MAH00077 View Image 1/4-20NCX3/4LG Fhscs SS 60.0 EA 0.51
29 MBA00012 View Image 3/4-10NC Fnsh Hex Nut Stl PL 2.0 EA 0.72
30 MBC00005 View Image 1/4-20NC Fnsh Hex Nyl Lck Nut 4.0 EA 0.39
31 MBC00007 View Image 3/8-16NC Fnsh Hex Nyl Lck Nut 4.0 EA 0.39
32 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 7.0 EA 0.18
33 MBG00002 View Image 1/2 Type 'an' FL Wshr Stl PL 3.0 EA 0.75
34 MBG00004 View Image 3/4 Type 'an' FL Wshr Stl PL 3.0 EA 1.02
35 MBG00012 3/8 Flat Washer Stl 2.0 EA 2.08

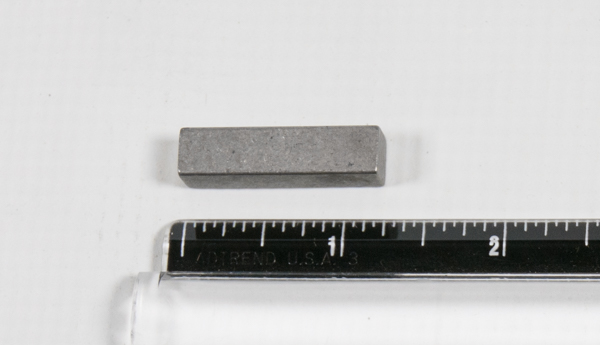

36 MCK00052 View Image 5/16X5/16X1-1/4LG Key,sq Ends (Effective to 4/6/22) 1.0 EA 3.84
37 MDF00122 60BS14 Sprocket (Effective to 7/19/23) 1.0 EA 185.00
37 MDFP1000464 Facer Drive Sprocket 1.0 EA 833.00
38 MDG00058 60H Riv X 170 Pitches W/ Conn (Effective to 7/19/23) 1.0 EA 470.00
38 MDGP1003122 60 HT Riv X 171 Pitches W/conn 1.0 EA 661.00
39 MDR00125 #60 Tensioner 1.0 EA 334.00

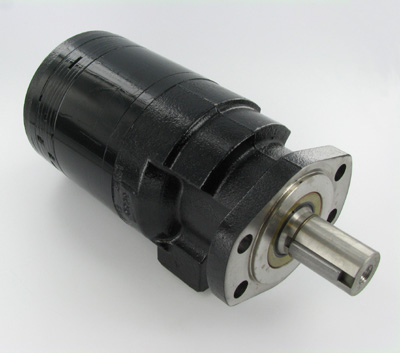

40 MEC00006 View Image 1-1/4SHT,5/16K,32.3CID Hyd Mtr (Effective to 4/6/22) 1.0 EA 1,218.00
40 T48P0952580 (assembly) 540cc Facer Motor with snap ring retainer (Effective 4/7/22 to 7/19/23) 1.0 EA 866.00
40 MECP0999815 540CC 1-1/4 Splined Hyd Motor 1.0 EA 702.00
41 MFA00039 12MPT Plug 1.0 EA 13.24
42 MFC00225 12MSAE/10MSAE Adapter 2.0 EA 0.00

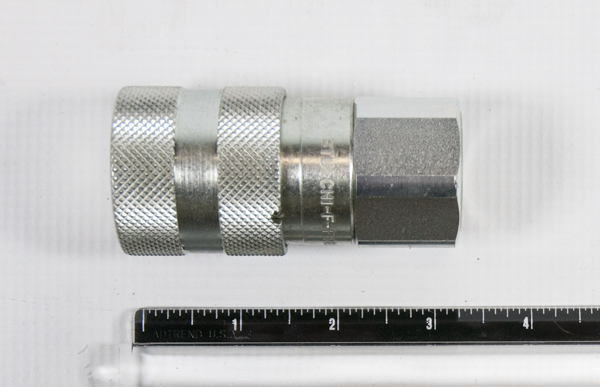

43 MFH00097 View Image 3/4FSAE Quick Disc Coupler 1.0 EA 159.00
44 MFH00100 3/4FSAE Quick Disc Nipple 1.0 EA 337.00
45 MFJ00002 View Image 1/8NPT Grease Zerk 2.0 EA 1.18
46 MAC00051 View Image 1/4-20NCX1/2LG Shcs PL (Effective 1/9/23 to 5/7/24) 4.0 EA 0.42
47 T560P0996155 Facer Cover Spacer 1.0 EA 0.00
Part Number T48P0935153 Suggested Replacements

Item
Description
Price
3615707 1236 Facer Blade Set (6 Blades)
 		2,010.00
AT48P0940466 TracStar 1200 Facer Motor Replacement Kit
 		1,015.00
