TracStar 500 II Carriage Hydraulic/Plumbing Schematic
Item Number: T5001003
Price: $3,758.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
TracStar 500 II Carriage Hydraulic/Plumbing Schematic


Part Number T5001003 Component List
  Item Component Description Quantity Unit
Price

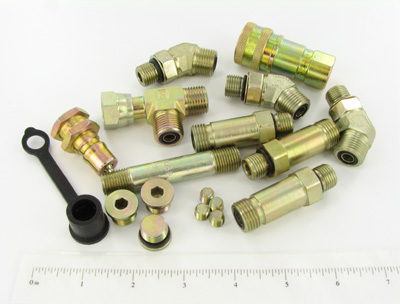

A AT5001003 (assembly) View Image T500 II Carriage Fitting Kit 1.0 EA 571.00
B AT5001004 (assembly) T500 II Carriage Hose Kit 1.0 EA 385.00
1 MAN00008 View Image #10-24NCX1LG Shcs SS 8.0 EA 0.49
2 MAB00064 View Image 3/8-16NCX1LG Hhcs 10.0 EA 0.51
3 MBE00004 View Image #10 Reg Splt Lck Washer Stl PL 8.0 EA 0.10
4 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 10.0 EA 0.12
5 MEE00003 View Image 1500PSI/BAR Pressure Gauge 1.0 EA 113.00
6 MEF00013 View Image Replaced by AT5060601 (Effective 1/6/04 to 2/12/13) 1.0 EA 0.00
6 MEF00241 View Image VMD03M Directional Valve (4A) 1.0 EA 679.00
7 MEF00014 View Image Replaced by AT5060602 (Effective 1/6/04 to 2/12/13) 1.0 EA 0.00
7 MEF00242 VMD03M Directional Valve (4L) 1.0 EA 626.00
8 MEG00001 View Image Reducing Valve 2.0 EA 132.00
9 MEG00002 View Image Reducing Valve 1.0 EA 129.00
10 1814002 View Image Carriage Manifold Assembly 1.0 EA 1,131.00

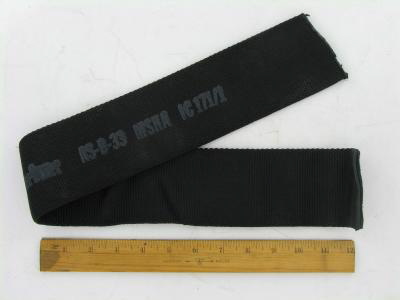

11 MFL00037 View Image 1.59 ID Hose Sleeve 1.25 FT 0.00

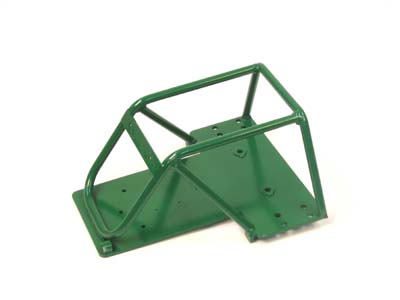

12 849501 View Image Manifold Mounting Bracket Wld 1.0 EA 447.00
13 8163104 View Image Carriage Open/close Label (Effective 6/24/04 to 2/12/13) 1.0 EA 13.41
13 8163218 Carriage Open/close Label 1.0 EA 5.28
14 8163105 View Image Selector Valve Label (Effective 6/24/04 to 2/12/13) 1.0 EA 10.43
14 8163211 Selector Valve Label 1.0 EA 5.28
