TracStar 500 III Auto Facer Assembly
Item Number: T5049402
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
TracStar 500 III Auto Facer Assembly


Part Number T5049402 Component List
  Item Component Description Quantity Unit
Price

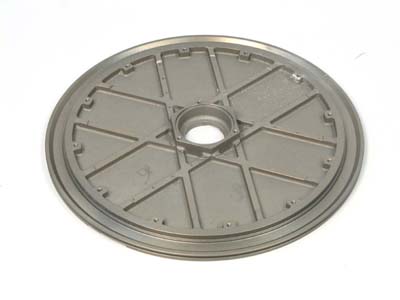

1 820203 View Image Facer Cap 1.0 EA 115.00

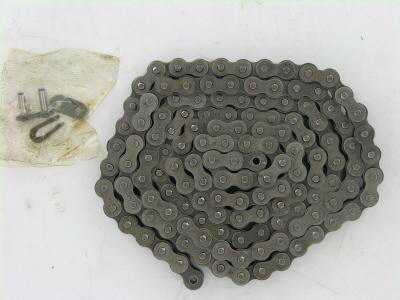

2 AT5019801 View Image Fcr Roller Chain Assy 1.0 EA 104.00
3 MAB00063 View Image 3/8-16NCX3/4LG Hhcs 2.0 EA 0.40
4 MAB00069 View Image 1/2-13NCX1-1/2LG Hhcs 2.0 EA 0.74

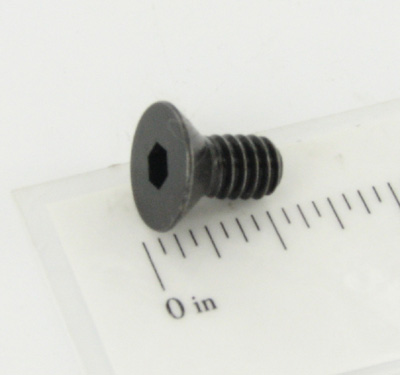

5 MAD00042 View Image 1/4-20NCX1/2LG Fhscs (Effective to 5/12/14) 12.0 EA 0.49
5 MAD00277 1/4-20NCX1/2LG Fhscs PL 12.0 EA 0.77
6 MAH00050 View Image 1/4-20NCX1/2LG Shcs SS 4.0 EA 0.52
7 MAH00052 View Image 1/4-20NC X 3/4"LG Shcs SS 2.0 EA 0.49

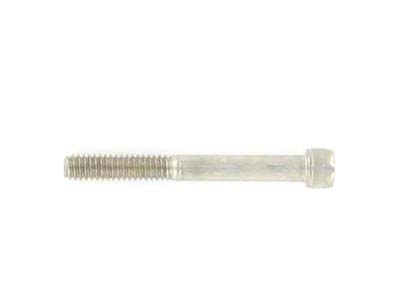

8 MAH00069 View Image 1/4-20NCX2-1/4LG Shcs SS 12.0 EA 1.11
9 MAH00072 View Image 1/4-20NCX1-1/2LG Shcs SS 3.0 EA 1.11
10 MAH00074 View Image #8-32NCX3/8LG Fhscs SS 36.0 EA 0.29
11 MAH00078 View Image 3/8-16NCX1-1/2LG Shcs SS 1.0 EA 2.09
12 MAN00009 View Image 3/8-16NCX1LG Shcs SS (Effective to 12/13/12) 2.0 EA 1.05
12 MAC00093 View Image 3/8-16N X7/8LG Shcs PL 1.0 EA 1.65
13 MAN00044 View Image 3/8-16NCX1/2LG Bhscs SS 2.0 EA 0.67
14 MBE00007 View Image 3/8 Reg Splt Lck Wshr Stl PL 4.0 EA 0.12
15 MBE00009 View Image 1/2 Reg Splt Lck Washer Stl PL 2.0 EA 0.18
16 MCE00044 View Image 1/4DIAX2.25 Grip Detent Pin 1.0 EA 9.92

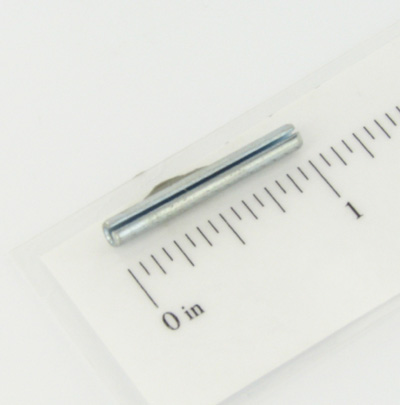

17 MCG00022 View Image 1/8DIAX1LG Roll Pin 2.0 EA 0.27
18 MCK00017 View Image 3/8DIAX1-3/4LG Lock Pin Stl PL 1.0 EA 3.45

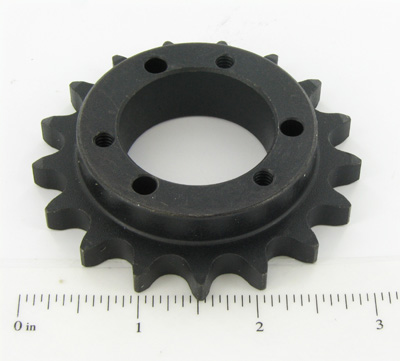

19 MDF00018 View Image #40JA17 Chain Sprocket 1.0 EA 45.54
20 MDH00019 View Image 1B, Ja, QD Hub 1.0 EA 30.65
21 MDM00032 View Image 18IDX19ODX0.5HT Ball Bearing 1.0 EA 2,428.00
22 MEC00004 View Image 1"SHT,1/4K,11.9CID Hyd Mtr 1.0 EA 689.00
23 MJE00008 View Image Die Spring 1.0 EA 6.69
24 T5001103 (assembly) TracStar 500 II Coach Equipped Facer Hydraulic/Plumbing Schematic 1.0 EA 0.00
25 T5004101 View Image Bottom Rest Button 2.0 EA 38.24
26 T5004602 View Image Tapped Blade Holder 1.0 EA 3,513.00
27 T5004603 View Image C'bored Blade Holder 1.0 EA 3,513.00

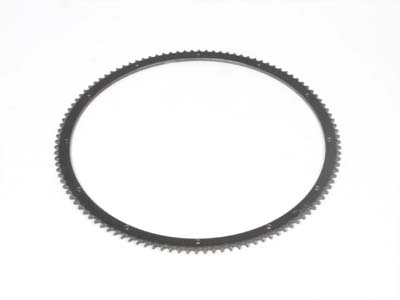

28 T5004801 View Image Driven Sprocket 1.0 EA 767.00
29 T5005005 View Image T500II Facer Blade 10.25LG 6.0 EA 132.00

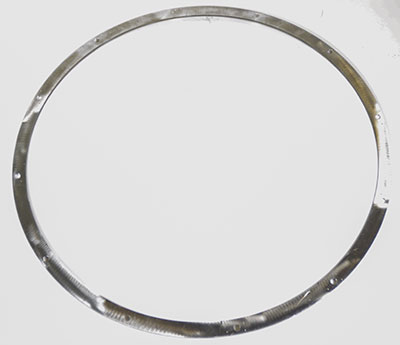

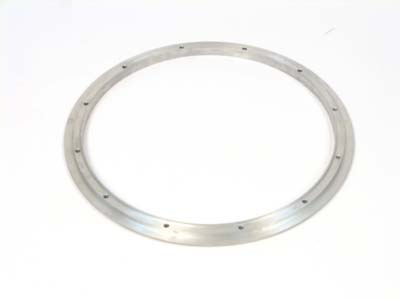

30 T5005201 View Image Fcr Spacer Ring 1.0 EA 844.00

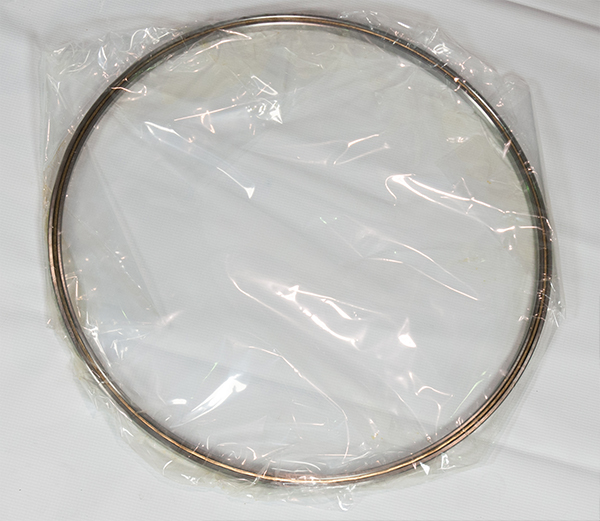

31 T5005301 View Image Fcr Bearing Clamp Ring 1.0 EA 639.00

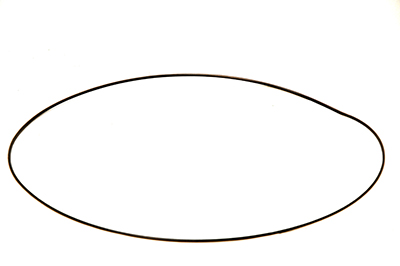

32 T5005401 View Image Fcr Body Seal 2.0 EA 202.00

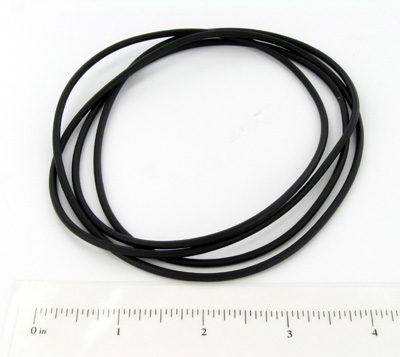

33 T5005402 View Image Fcr Body O'ring 2.0 EA 20.50

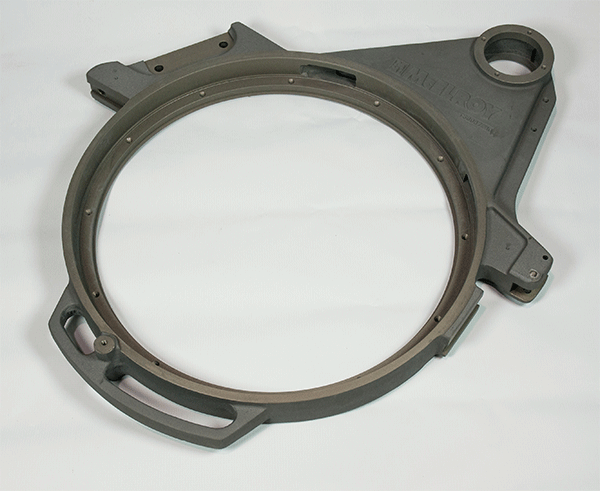

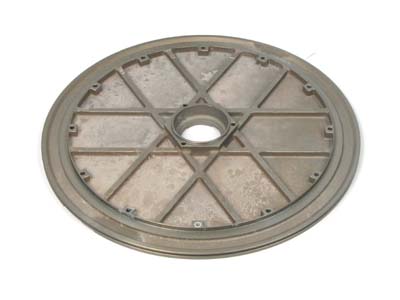

34 T5008704 View Image Facer Body 1.0 EA 4,315.00
35 T5008803 View Image Fcr Latch Handle 1.0 EA 361.00

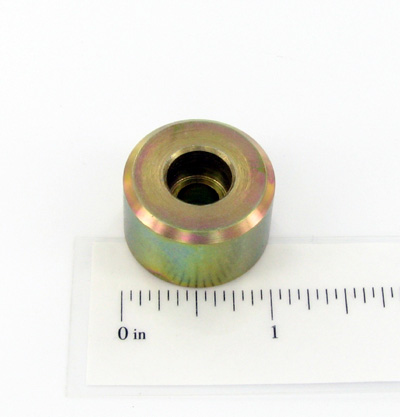

36 T5047901 Shoulder Nut 2.0 EA 95.78
37 T5048501 Roller 2.0 EA 144.00
38 T5049601 Facer Guide Rod Bracket Kit (Effective to 12/13/12) 1.0 EA 171.00

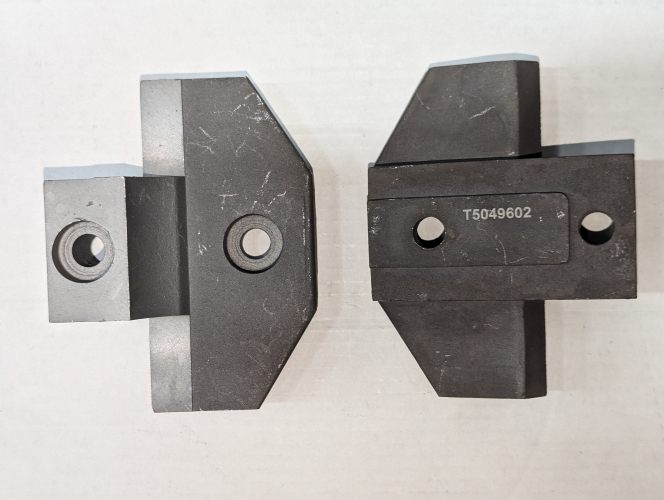

38 T5049602 View Image Facer Guide Rod Bracket 1.0 EA 181.00
39 T5049701 Facer Roller Housing 1.0 EA 867.00

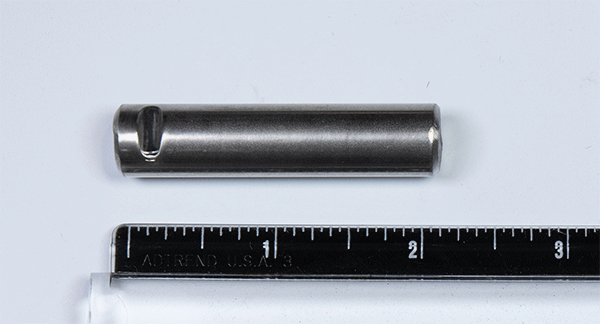

40 T5049901 View Image Facer Roller Pin 2.0 EA 148.00
41 T5050001 Facer Lifting Lug 1.0 EA 19.63

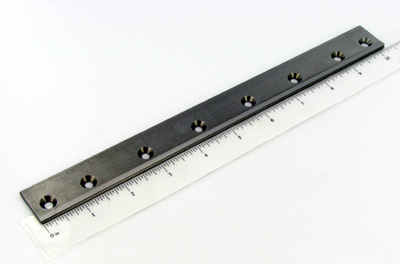

42 T5051701 Splice Plate 2.0 EA 27.83
43 MAN00056 View Image 3/8-16NCX1-1/2LG Bhscs SS 1.0 EA 2.09
44 MAH00070 View Image 3/8-16NCX1LG Bhscs SS 1.0 EA 0.92
