TracStar 500 III Tracked Vehicle Assembly
Item Number: T5050301
Price: $0.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
TracStar 500 III Tracked Vehicle Assembly


Part Number T5050301 Component List
  Item Component Description Quantity Unit
Price
1 MAL00007 View Image 1/4-20NCX3/4LG Hwh TF Screw 7.0 EA 0.49
2 MJQ00363 3/32" Edge Trim 10.0 IN 1.04
3 T1804501 (assembly) TracStar 500/TracStar 412/TracStar 618 Pipe Lift Assembly 2.0 EA 2,948.00
4 T5000911 (assembly) TracStar 500 III Vehicle Plumbing/Hydraulic Schematic 1.0 EA 0.00
5 T5013725 (assembly) TracStar 500 II Sheet Metal Assembly (Effective to 10/11/12) 1.0 EA 0.00
5 T5013726 (assembly) TracStar 500 III Sheet Metal Assembly 1.0 EA 0.00

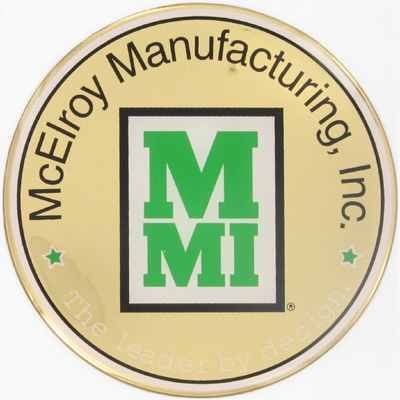

6 T5015602 View Image Mmi Medalion Label 1.0 EA 13.37
7 T5024701 Pendant Bracket Cover Plate 1.0 EA 192.00
8 T5054101 Cover Plate 1.0 EA 122.00
9 T5054501 (assembly) TracStar 500 III Vehicle Electrical Power Assembly 1.0 EA 0.00
10 T5057101 (assembly) TracStar 500 III Hood Assembly 1.0 EA 7,422.00
11 T5057201 (assembly) TracStar 500 III Chassis Assembly 1.0 EA 0.00
12 T5057301 (assembly) TracStar 500 III Fuel Tank Assembly 1.0 EA 1,985.00
13 T5057401 (assembly) TracStar 500 III Diesel Power Pack Assembly 1.0 EA 0.00

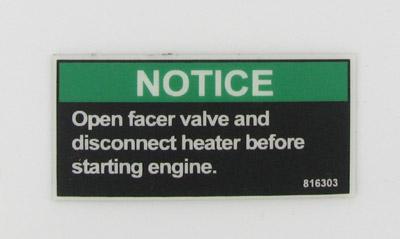

14 816303 View Image Engine Prestart Notice Label 1.0 EA 10.69
15 T5054601 (assembly) Obsolete & Replaced by T5054610 (Effective 6/18/15 to 10/21/18) 1.0 EA 0.00
15 T5054608 (assembly) Obsolete & Replaced by T5054610 (Effective 10/22/18 to 2/7/19) 1.0 EA 0.00
15 T5054609 (assembly) Obsolete & Replaced by T5054610 (Effective 2/8/19 to 3/13/19) 1.0 EA 0.00
