TracStar 500 III Hood Assembly
Item Number: T5057101
Price: $7,422.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
TracStar 500 III Hood Assembly


TracStar 500 III Hood Assembly


Part Number T5057101 Component List
  Item Component Description Quantity Unit
Price

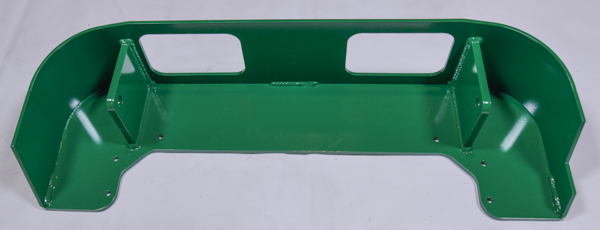

1 T5015001 View Image Front Bumper Wld 1.0 EA 832.00
2 T5015101 Front Rib Template 2.0 EA 21.37

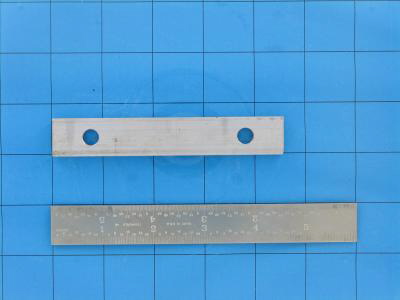

3 T5015205 View Image Rear Hood Retainer Plate 2.0 EA 11.35
4 T5015208 Rear Hood Hinge Wld 1.0 EA 311.00

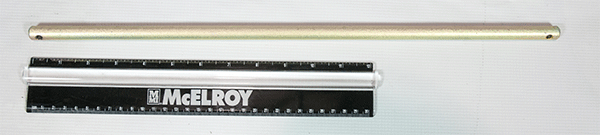

5 T5015301 View Image Front Hood Pivot Pin 1.0 EA 104.00
6 T5015801 Engine Hood Vent Plate 2.0 EA 228.00
7 T5057901 (assembly) TracStar 500 III Rear Cowling with Labels and Foam 1.0 EA 2,580.00
8 T5058001 (assembly) TracStar 500 III Front Cowling with Labels and Foam 1.0 EA 2,663.00
9 MAB00005 View Image 1/4-20NCX1-1/4LG Hhcs 6.0 EA 0.31
10 MAH00003 View Image #10-24NCX5/8LG Phpms 10.0 EA 0.30
11 MAN00026 1/4-20NCX1LG Fhscs SS 4.0 EA 0.59
12 MAN00083 #10-24NCX5/8LG Shcs SS (Effective to 6/30/21) 4.0 EA 0.39

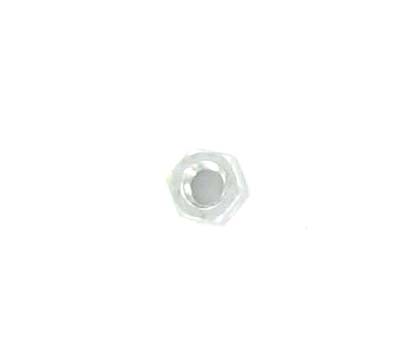

13 MBC00004 View Image #10-24NC Mach Scr Nyl Lck Nut 14.0 EA 0.31
14 MBC00052 View Image 5/16-18NC Prev Trq Lck Nut PL 3.0 EA 0.39
15 MBC00053 View Image 1/4-20NC Prev Trq Flg Lck Nut 10.0 EA 0.39

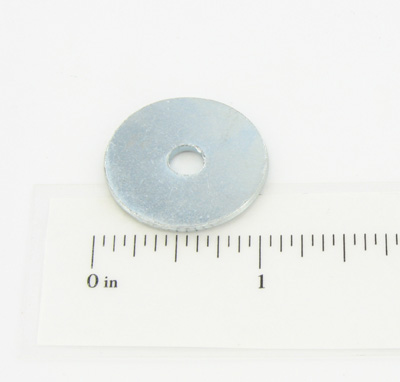

16 MBF00004 View Image #10 TY 'a' Wide FL Wshr Stl PL 8.0 EA 0.10
17 MBG00026 View Image #10 Fender Washer Stl PL 4.0 EA 0.39
18 MCH00003 View Image 3/16DIAX1-1/2LG Cotter Pin 2.0 EA 0.15
19 MCE00001 View Image 1/4DIAX1.60 Grip Detent Pin (Effective to 2/4/19) 2.0 EA 11.36
19 MCK00117 1/4 X 1-7/8 Lynch Pin 2.0 EA 19.55

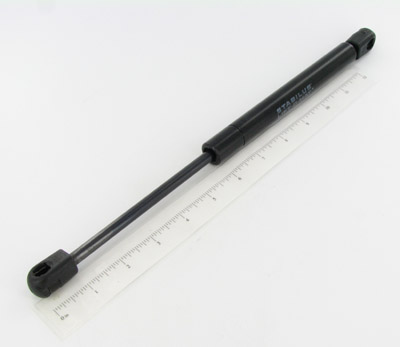

20 MGA00040 View Image Gas Spring 1.0 EA 73.25
21 MGA00042 View Image Gas Spring 1.0 EA 79.26

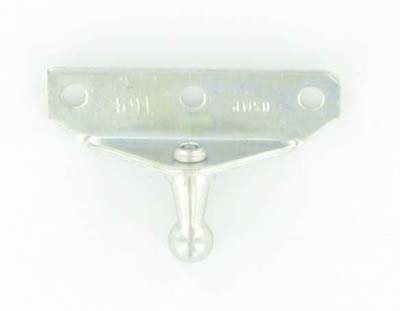

22 MGF00060 View Image Mounting Bracket 1.0 EA 5.74
23 MGF00061 View Image Mounting Stud 3.0 EA 3.30
