TracStar 500 III Rear Cowling with Labels and Foam
Item Number: T5057901
Price: $2,580.00
Component Assembly Drawing
    Click the +, -, ^, and arrow buttons to zoom and pan the image.
TracStar 500 III Rear Cowling with Labels and Foam


TracStar 500 III Rear Cowling with Labels and Foam


Part Number T5057901 Component List
  Item Component Description Quantity Unit
Price
1 8163362 Prop 65 Diesel Exhust Wrng Lbl 1.0 EA 3.47
2 T5013803 Engine Hood 1.0 EA 0.00

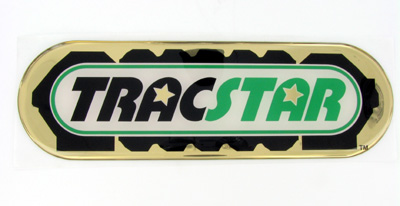

3 T5015601 View Image T500 Logo Label 1.0 EA 12.17

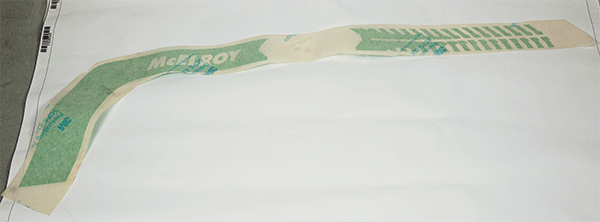

4 T5017302 View Image T500 Iii Left Side Panel Label 1.0 EA 161.00

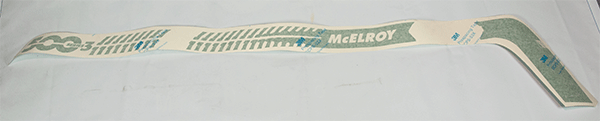

5 T5017402 View Image T500III Right Side Panel Label 1.0 EA 164.00

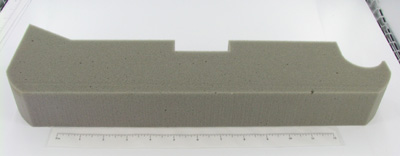

6 T5019401 View Image Radiator to Hood Baffle Foam 1.0 EA 56.57

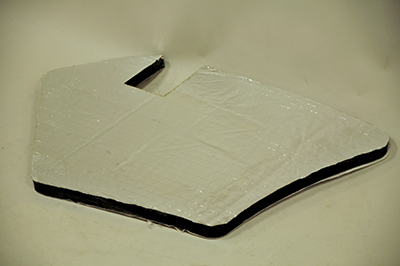

7 T5019501 View Image Right Engine Hood Insulation 1.0 EA 79.99

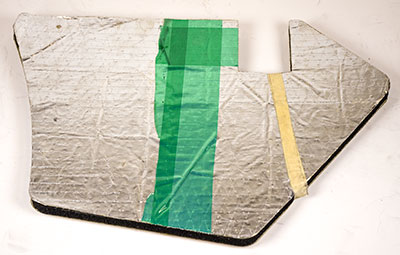

8 T5019502 View Image Left Engine Hood Insulation 1.0 EA 79.99

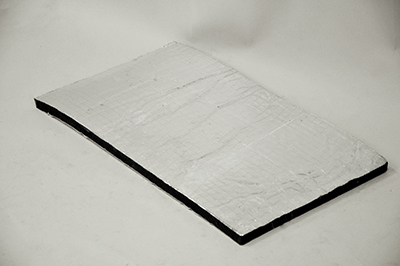

9 T5019503 View Image Top Engine Hood Insulation 1.0 EA 79.99
10 MDL00242 View Image 1/4" Edge Trim 3.6 FT 2.28
11 MJQ00518 2-1/2" Insulation Hangers 19.0 EA 0.55
12 MJQ00615 1.5" Washer/clip 19.0 EA 0.28
13 MJQ00616 Domed Cap Washer 19.0 EA 0.63
